How to install 18V boost board on the Antminer S19XP hash board?

When the boost circuit on the Antminer S19XP hash board malfunctions, for instance, due to the soldering pad coming off, irreparable or damaged electronic components on the boost circuit, and it cannot be repaired by replacing the chip, the S19XP boost board can be used as a replacement.

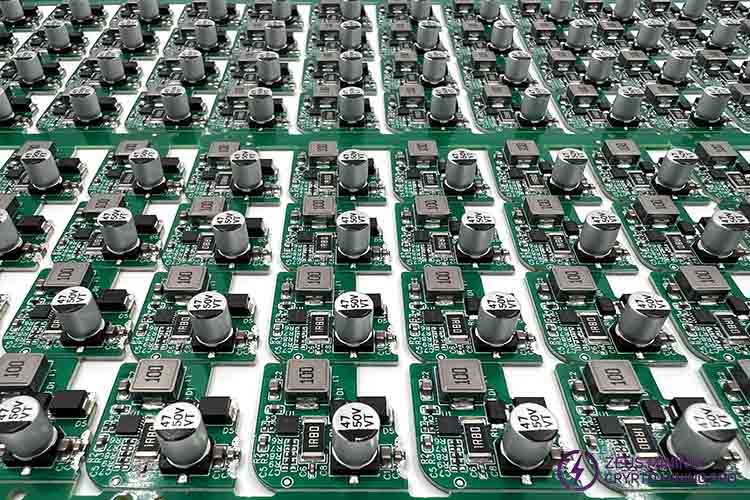

The Antminer S19XP 18V boost board is specifically designed for the S19XP hash board, enabling the hash board to restore normal powering, and ensure the stable operation of the miner.

Steps to install the Antminer S19XP 18V hash board boost board:

(1) Place the S19XP hash board on a horizontal desktop.

(2) Locate the position of the boost circuit on the hash board.

(3) Use a voltage regulator to power on the hash board, and then use a multimeter to confirm the input and output positions of the boost circuit, as well as the GND position.

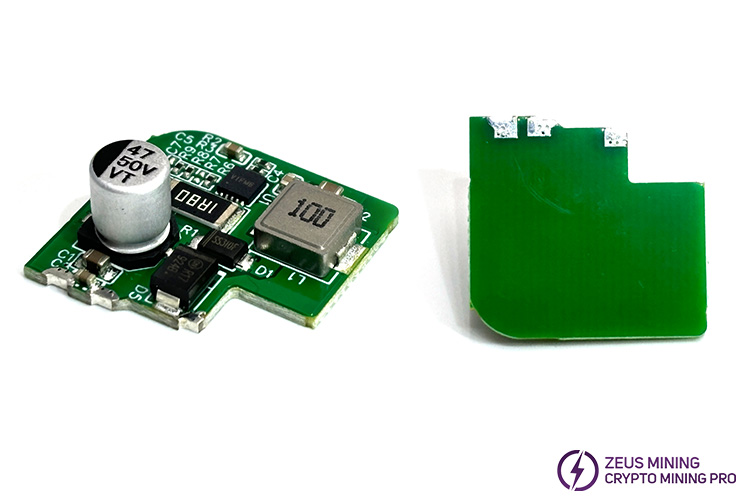

(4) Use a heating table to remove the components of the boost circuit, and then solder the boost module to the corresponding position.

The size and shape of this boost module are specially designed for S19XP, so the installation and soldering position are fixed.

The installation of the 18V boost board is complete.

If the boost circuit of the Antminer S19XP hash board malfunctions, we can use the 18V boost board for repairs. It is not only easy to use, improving our repair efficiency, but also enhances the stability of the hash board, extending its lifespan and reducing the failure rate.
