In miners, fans are typically used for cooling to ensure the stable operation of the internal hardware. However, in water cooling systems, while the primary method of heat dissipation is through water cooling, fan simulators can mimic the signals of fans, allowing the miner's mainboard to read the fan status normally.

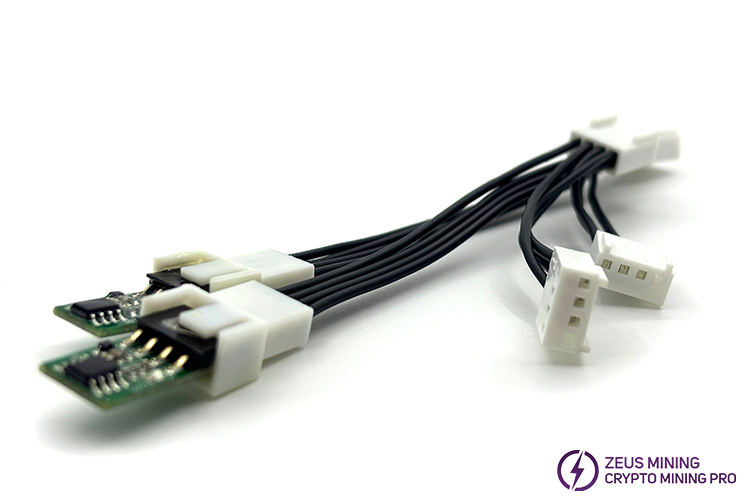

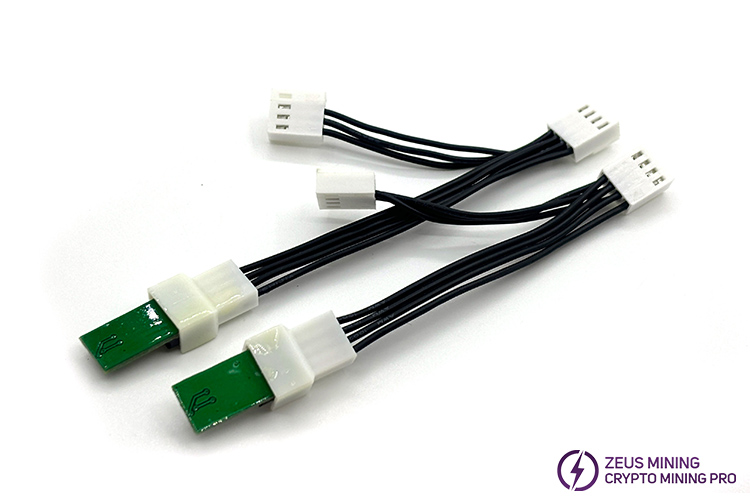

The Antminer water cooling 4-pin fan simulator is designed for installation in water-cooled or oil-cooled miners, further reducing the noise level of the miner and providing a more comfortable and stable operating environment. It is suitable for all Antminer series miners with 4pin fan interfaces.
Installation steps for the Antminer water cooling 4-pin fan simulator:
Disconnect power to the running miners and wait for it to cool down.
Disassemble the control board protective cover of the Antminer water-cooled miner with a 4pin fan interface.
Disconnect the cooling fan's wire from the control board and remove the fan.
Insert the fan simulator's wire into the control board's fan interface, ensuring a secure connection, and then reinstall the control board protective cover.
Without an actual fan, using the Antminer water cooling 4-pin fan simulator ensures the miner system's compatibility, improves the overall heat dissipation efficiency of the miner, and avoids errors or warnings caused by the lack of fan signals. Since there is no need for an actual fan to operate, the fan simulator can save on power consumption, reducing the miner's operating costs.
