Usage tutorial of Antminer KS5 hash board thermal grease mold

The thermal grease for hash boards is a highly thermally conductive organosilicon insulating material, which is used to fill the gap between the heat sinks and the ASIC chips, assisting in heat dissipation. Under the prolonged high-temperature operation of the miner, to ensure stable heat dissipation performance, it is necessary to regularly reapply the thermal grease, preventing performance degradation, obstructed heat conduction, or temperature accumulation due to its drying. This ensures the stability of the machine's operation and extends its service life.

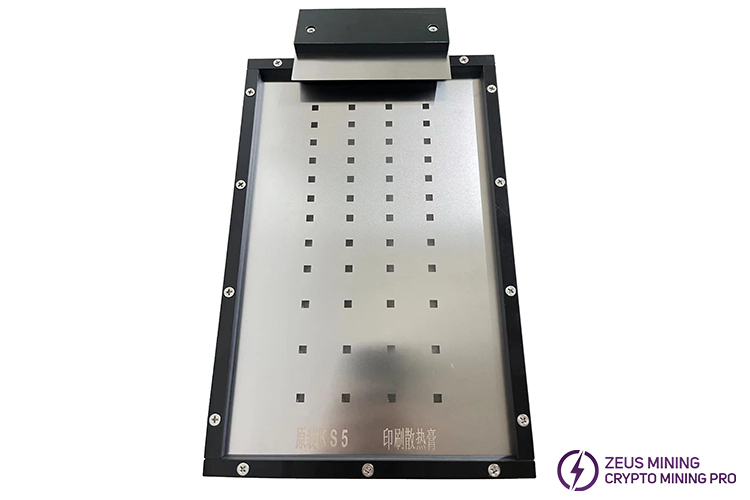

The KS5 grease template helps the quick and even application of thermal paste to the ASIC chips on the miner's hash board. Its ingenious design with precise hole positions fits the ASIC chips' surface perfectly, effectively avoiding surrounding components and enabling highly efficient batch grease application. This templated application method significantly improves work efficiency, which ensures quick heat dissipation of the ASIC chips.

How to use:

1. Disassemble the miner, then place the hash boards on an insulated workbench.

2. Remove the heatsinks of the hash board, next use a dust-free cloth dipped in circuit board cleaning solution to wipe clean the surface of the ASIC chips, ensuring better contact between the thermal grease and the chips surface.

3. Align the Antminer KS5 silicone grease fixture with the ASIC chips to prevent the thermal paste from being applied to areas outside the chips.

4. Apply an appropriate amount of thermal grease to the mold and use a scraper or brush to evenly spread it, aiming for a thickness similar to a sheet of A4 paper. Avoid applying too much or too little to affect heat dissipation performance.

5. Finally, remove the template and inspect the grease applied for bubbles or gaps. If any are found, reapply it..

Note: Please clean the mold promptly after use to maintain its cleanliness.

Regularly inspect and replace the thermal grease on the hash board ASIC chips to ensure efficient heat dissipation of the miner, allowing it to mine with optimal performance for more stable profits.
