Usage tutorial for BY2020 digital display heating table

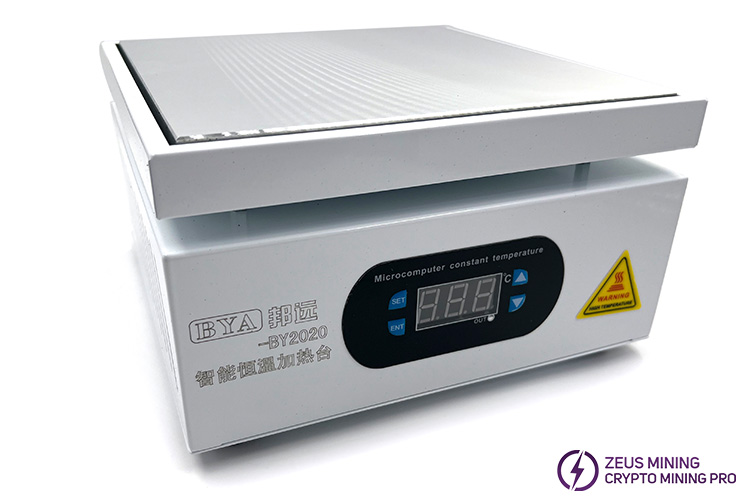

BY2020 digital display heating table, it can be used to solder chips of Antminer, Whatsminer, Avalonminer aluminum-based hash boards.

Product introduction:

1. BY2020 digital display heating table adopts microcomputer chip to realize intelligent and precise temperature control, ensuring stable and reliable heating process.

2. The heating table has fast heating speed and stable performance.

3. It is surrounded by heat insulation and anti-scalding wrapping design to effectively prevent accidental injuries during work and increase the safety of use.

4. The heating plate is made of aviation aluminum, with high thermal conductivity, uniform heating, rapid heating, and not easy to deform at high temperature.

5. The three-dimensional heat dissipation louver adopts fanless design, and the left and right louvers behind the chassis dissipate heat through air convection to improve the heat dissipation efficiency.

6. The internal empty design helps to extend the service life of the chip heating core.

Product advantages:

1. Efficient heating: advanced heating elements and control systems make the heating process faster and improve work efficiency.

2. Safety and stability: overheating protection and abnormal temperature alarm functions ensure the safety of the equipment during use; at the same time, high-quality materials and processes ensure the stability and durability of the equipment.

3. Precise temperature control: Digital display control technology makes temperature control more precise and meets various soldering requirements.

4. Easy to operate: The equipment is easy to operate and users can quickly get started; at the same time, a variety of specifications and configuration options make the equipment more flexible and easy to use.

Usage method for the BY2020 digital display heating table to solder ASIC chips:

Prepare tools: BY2020 digital display heating table, ASIC miner hash board, ASIC chip, solder wire, solder paste, dust cloth, cleaner, tweezers

1. Make sure the BY2020 digital display heating table is in good condition and check whether the power cable, plug, etc. are damaged.

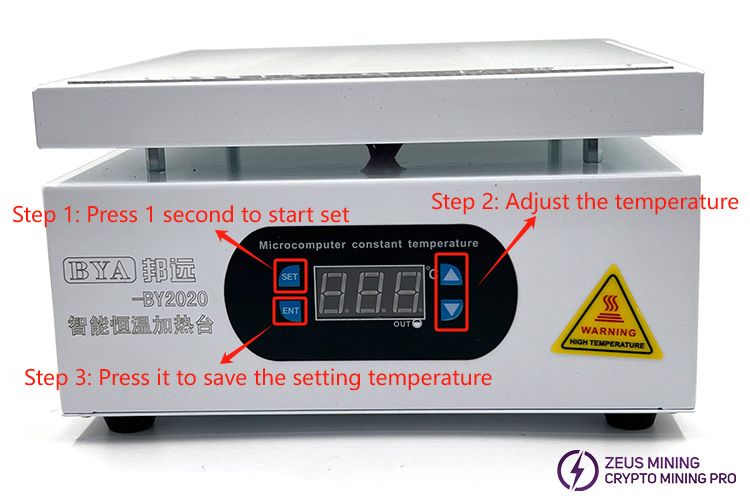

2. Plug in the power plug of the heating table and turn on the power switch. After the indicator light comes on, set the appropriate soldering temperature according to the needs of the ASIC chip and solder. For the soldering of ASIC chips, the temperature is generally set between 300°C and 350°C.

3. Use dust cloth and cleaner to remove dust and impurities on the surface of the hash board.

4. Place the hash board on the heating table, and then use tweezers to pick up the ASIC chip and place it correctly on the soldering position of the hash board.

5. Apply an appropriate amount of solder paste and flux to the pins and soldering positions of the ASIC chip to ensure that the solder paste is evenly distributed.

6. Use tweezers to check whether the soldering is uniform and firm, and whether there is a short circuit or open circuit.

7. Then clean up the soldering slag and residue on the soldering position to ensure the cleanliness of the soldering area.

Note:

1. During the soldering process, always pay attention to the temperature changes of the heating table to ensure that the soldering is carried out within the set temperature range.

2. The soldering time should not be too long or too short, and it should be adjusted according to the actual situation to ensure the soldering quality.

3. Be gentle when soldering to avoid damage to the chip. At the same time, ensure that the soldering position is accurate to avoid soldering errors.

The BY2020 digital display heating table has significant benefits in the soldering process of ASIC chips, such as precise temperature control, uniform heating, simple operation, high safety, energy saving and environmental protection, and high reliability. These benefits not only improve the quality and efficiency of soldering, but also reduce energy consumption and environmental pollution. It is an ideal choice for ASIC chip soldering.
