Installation tutorial for Bitmain Antminer APW12 233A power supply

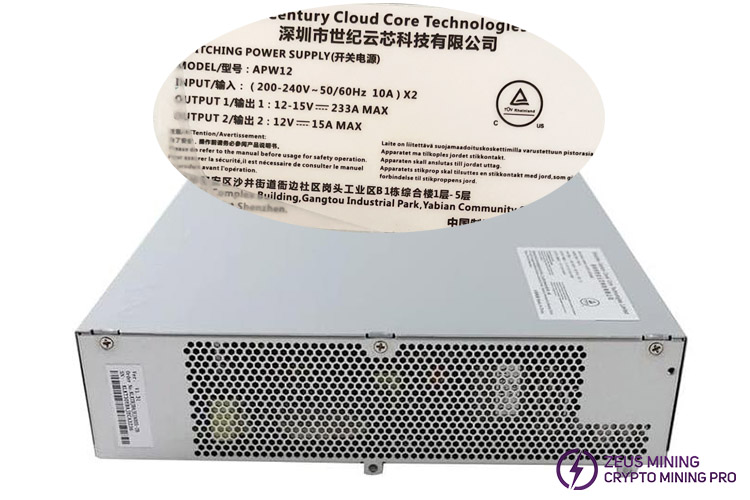

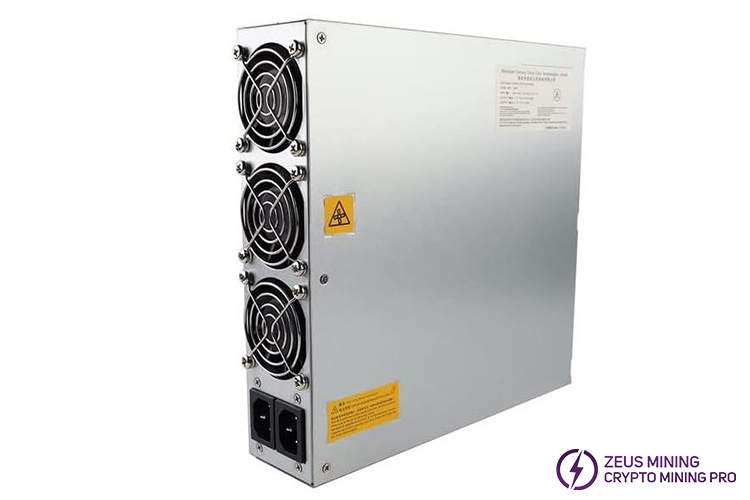

Bitmain APW12 233A PSU is a high-performance power supply specifically designed for Antminer 19 series miners (such as S19, S19J, S19PRO, S19JPRO, S19I, T19, etc.). It delivers a DC voltage output ranging from 12V to 15V with a rated current of up to 233A, ensuring stable powering. Equipped with multiple protection mechanisms, including short-circuit, overheat, overcurrent, and undervoltage protections, it offers comprehensive safety assurance for miner operation.

The PSU is a critical component of miners, and any damage to it can impact their operational efficiency or even cause downtime. If not replaced promptly, it may cause irreversible damage to other electronic components, and in severe cases, pose a fire risk, leading to significant financial losses.

With its outstanding performance, Bitmain APW12 233A power supply has become a preferred power solution for Antminer 19 series miners.

Taking the S19 miner as an example, the PSU replacement steps are as follows:

1. Turn off the miner, next, unplug the power cord to ensure safe operation.

2. Remove the protective cover plate above the power supply, then detach the fixing screws of the conductive copper sheets and the PSU. Unplug the cables connected to the power supply.

3. Push out the old faulty power supply along the air outlet.

4. After inspecting the new APW12 233A PSU for any obvious damage, align it with the power rail on the side of the chassis, then gently push it for a complete coincidence.

5. Tighten the fixing screws for the power supply and the conductive copper sheets, and then connect the corresponding cables.

6. Power on the miner to check its operational status.

For the cryptocurrency mining industry, ensuring the stable operation of Bitmain APW12 233A power supply is paramount. Mining farm managers should strengthen PSU management, promptly identify and solve potential issues to ensure stable mining operations for maximizing revenue.
