Iceriver KS3M KS3L miner case replacement tutorial

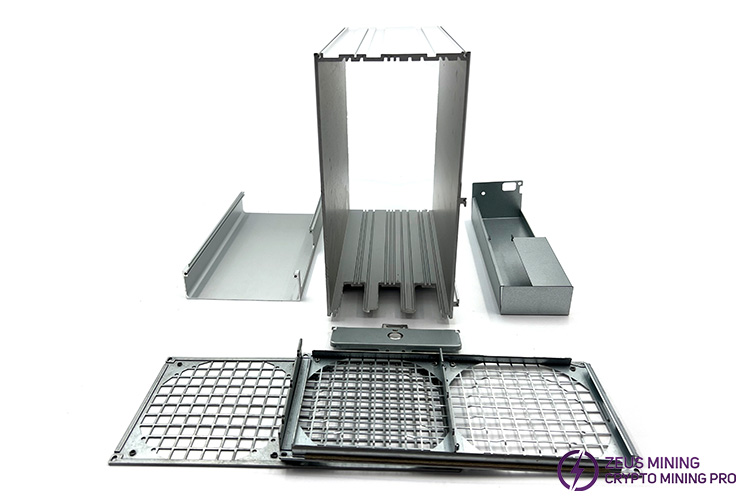

The Iceriver KS3M KS3L miner shell is crafted from high strength aluminum alloy material, ensuring the device's durability and significantly enhancing its heat dissipation performance. It provides a solid foundation for stable operation during high-intensity mining tasks. The case is designed to house and protect hash boards, control boards, and PSUs. It prevents dust, lint, other impurities from adhering to the hash boards and control boards, which could otherwise hinder heat dissipation and damage the miner's internal components over time.

The shell may sometimes suffer damage due to severe physical impact, prolonged wear and tear, improper handling, or exposure to extreme working conditions. It is crucial to replace the miner case immediately upon damage, as continued operation with a damaged shell can adversely affect the miner's normal functioning.

Detailed steps for replacing the Iceriver KS3M KS3L miner case:

1. After fully powering off the miner and allowing it to cool down internally, proceed with dismantling the shell and internal core components in sequence. This includes removing the control board, power supply, hash boards, and cooling fans. Utilize a cleaning brush to meticulously remove dust accumulated on the surfaces of each component, restoring their cleanliness and neatness.

2. Thoroughly inspect every part of the case. If any severe deformation or damage is found, promptly replace it with a new spare part.

3. Securely attach the rear fan guard to the air intake using screws and ensure that the correctly installed cooling fan is firmly mounted on the fan guard.

4. Position the hash boards inside the chassis frame, assemble the cooling fan and front fan guard, and fasten them securely to the exhaust port of the chassis with screws to optimize heat dissipation.

5. Slide the control board into the top slot and then push the power supply unit into the side rails. Tighten the PSU fixing screws to stabilize its installation position.

6. Use screws to tightly connect the conductive copper strips between the power supply and hash boards, ensuring a stable and uninterrupted current transmission. Simultaneously, carefully inspect and correctly connect all cables, ensuring that the connections are secure and free from looseness.

7. Lastly, connect the fan plugs, install the protective covers plate above the control board and PSU, fixed side protection cover, and complete the enclosure of the overall structure. The assembly of the miner is now successfully finished.

The Iceriver KS3M KS3L chassis case, as an indispensable component of the miner, serves as a steadfast guardian for the safe operation of internal precision components. Therefore, regularly and thoroughly inspecting the protective shell of the equipment and promptly replacing it when necessary are crucial measures to ensure that the miner continues to operate at optimal performance.
