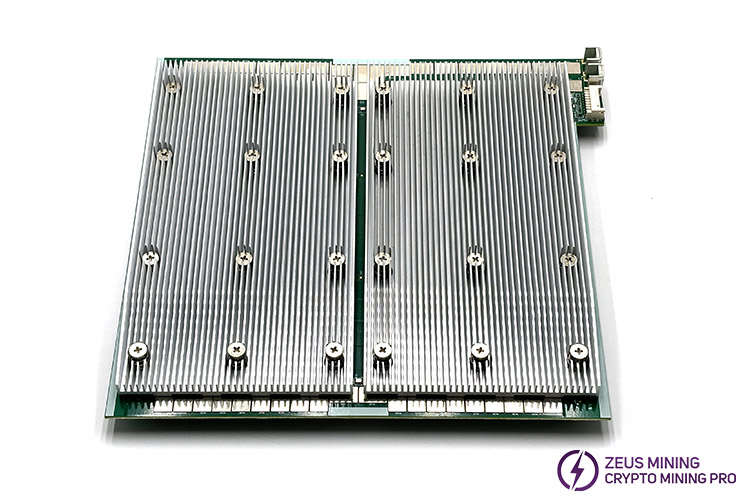

What is the replacement method for IceRiver KS5L hash board?

IceRiver KS5L hash board is one of the Kaspa miner's critical components, which is responsible for performing hash calculations to mine cryptocurrencies. Its stability directly impacts the overall mining efficiency of the rig. Integrating advanced ASIC chips designed specifically for the KHeavyHash encryption algorithm, ensures efficient and stable hash rate output, laying a solid foundation for the machine's high-performance operation.

To maintain high profitability, IceRiver KS5L miners must continuously operate at optimal conditions. However, prolonged high-load operation can put immense pressure on the hash boards, potentially leading to decreased mining performance, hash rate attenuation, or even hardware damage. In such cases, promptly replacing aged or damaged hash boards is crucial to swiftly restore mining profitability and minimize operational losses.

So, how to quickly replace the faulty IceRiver KS5L hash board?

1. Log in to the miner's backend management interface, then confirm the faulty hash board's number through the kernel log.

2. Power off the miner, unplug the power cord. Wait a few minutes for the machine to cool down.

3. Remove the protective cover plate above the control board, disconnect the cables connected to the hash boards and fan plugs.

4. After removing the outlet cooling fan and its baffle, locate the faulty hash board by its number, unscrew the fixing screws of the conductive copper sheets, subsequently carefully slide it out along the slots.

5. Inspect the new IceRiver KS5L hash board's overall appearance and electronic components to ensure secure connections and no visible damage.

6. Carefully slide the new hash board into its original position along the case slot and then tighten the fixing screws of the conductive copper plates.

7. Install the outlet cooling fan and its baffle, then reconnect the previously disconnected cables to their corresponding positions.

8. After ensuring all cables are securely connected, reinstall the protective cover plate. The replacement is complete.

9. Power on the miner to observe its operating status and confirm that the hash rate has returned to a normal level through the backend log.

Replacing the faulty IceRiver KS5L hash board effectively resolves hash rate issues and swiftly restores the miner's efficient mining capabilities. Timely replacement of faulty components minimizes revenue losses due to downtime while significantly enhancing the machine's overall stability and lifespan, safeguarding sustained profitability.
