Quick 707D+ 2 in 1 soldering station usage tutorial

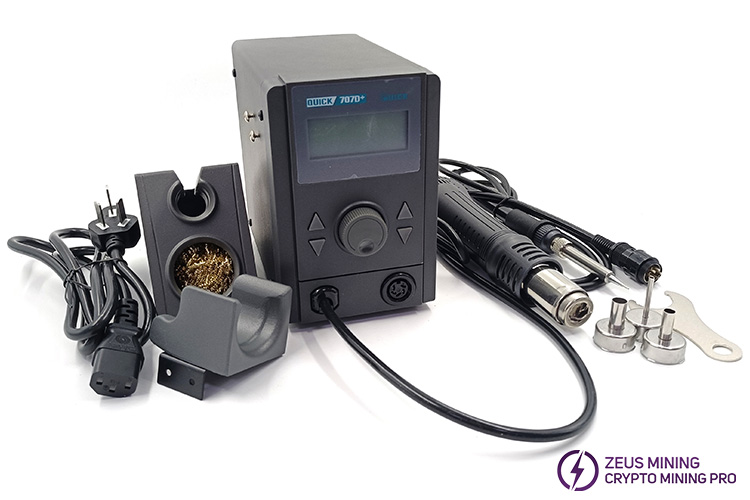

The Quick 707D+ 2 in 1 repair system adopts a dual station design, ingeniously integrating the functions of a hot air gun and soldering station to achieve multi purpose usage in a single device. The soldering station utilizes a full metal heating core, ideal for repairing PCB hash boards of ASIC miners such as Antminer, Whatsminer, Iceriver, and more. The hot air gun features a brushless vortex fan for noise reduction, and its stand is adjustable within a 45° range.

Rugged and durable, it operates at low voltage and supports a temperature range adjustment from 100 to 500℃, which is intuitively displayed through an LCD digital interface, ensuring both high efficiency and precision in soldering and desoldering tasks. Whether for simple or complex circuit board soldering, the Quick 707D+ can handle them with ease, enhancing work efficiency and making it the top choice for professional maintenance.

Overview of how to use Quick 707D+ 2 in 1 soldering station:

1. Preparation

• Ensure that all components of the Quick 707D+ soldering station, including the power cord and soldering tips, are properly connected.

• Select a well ventilated work environment free from flammable materials to ensure safer operation.

• Choose the appropriate soldering wire, soldering tip, or hot air nozzle based on the requirements of the soldering task.

2. Power on and preheat

• Turn on the power switch and set the appropriate soldering temperature using the temperature adjustment knob or button on the soldering station, according to the requirements of the soldering material. The Quick 707D+ soldering station typically has a temperature display function for convenient real time temperature monitoring.

3. Install soldering tip or hot air nozzle

• During the preheating process, select the suitable soldering tip or hot air nozzle and correctly install it on the soldering station.

4. Soldering operation

• Hot Air Mode: Align the hot air gun nozzle over the soldering area, maintaining an appropriate distance. Activate the hot air function and adjust the airflow speed and temperature as required. Move the hot air gun at an appropriate speed and force to ensure even soldering.

• Iron Mode: Insert the soldering iron tip into the soldering station and adjust to the desired temperature. Before soldering, apply a layer of soldering paste on the iron tip using a tin pen to facilitate better bonding of the soldering wire with the components. Then, gently touch the soldering point with the iron tip while feeding the soldering wire. Once the wire melts and bonds with the components, quickly remove the iron tip.

5. Completion and cleanup

• After completing the soldering, turn off the power switch of the soldering station and allow it to cool down.

• Clean the work area, removing any soldering residue to keep the soldering station and its accessories clean.

• Perform regular maintenance and upkeep of the soldering station as needed, such as replacing filters, cleaning air inlets and outlets, etc.

Precautions:

1) When using the soldering station, be sure to wear proper personal protective equipment such as protective goggles and gloves.

2) Follow the safe operating procedures in the product manual to avoid illegal operations and accidents.

3) Pay attention to the scope of application and limitations of the soldering station and its accessories to ensure their use in the correct application scenarios.

The Quick 707D+ serves as a valuable assistant in our maintenance work, fulfilling diverse soldering and desoldering needs for various electronic devices and components through its integrated hot air gun and soldering station functions. Its efficiency, precision, and multifunctionality not only boost productivity but also guarantee maintenance quality, enabling us to tackle complex repair tasks with ease and speed.
