How to use the electrical repair protection socket switch?

When repairing an ASIC miner PSU or other faulty power sources and uncertain about potential hidden issues, we can use this electrical repair protection socket switch for testing.

In case of circuit faults, short circuits, overload, or overheating, the electrical repair protection socket switch can promptly detect these issues and cut off power, preventing electrical fires and equipment damage. It also facilitates circuit repair and maintenance.

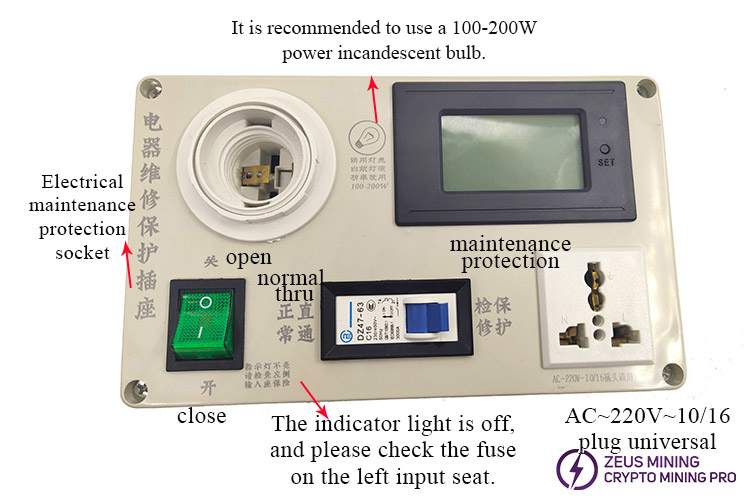

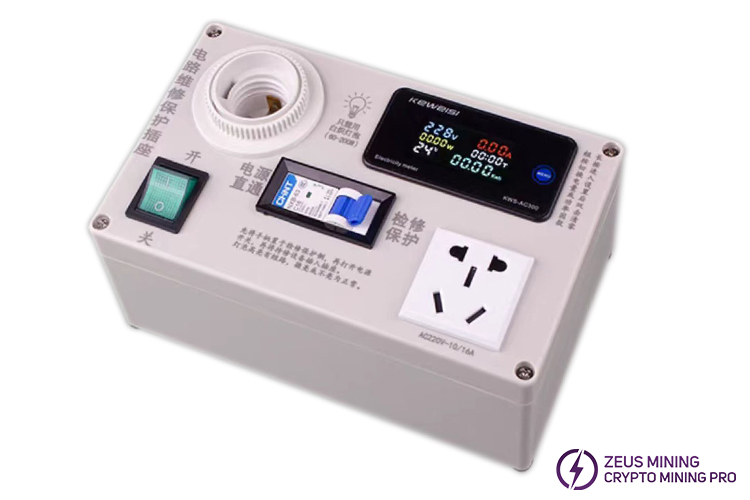

Product image of the electrical repair protection socket switch:

Usage method for electrical repair protection socket switch:

Use the Innosilicon T2 power supply for demonstration.

Prepare tools: 100W incandescent bulb, tweezers, electrical repair protection socket switch

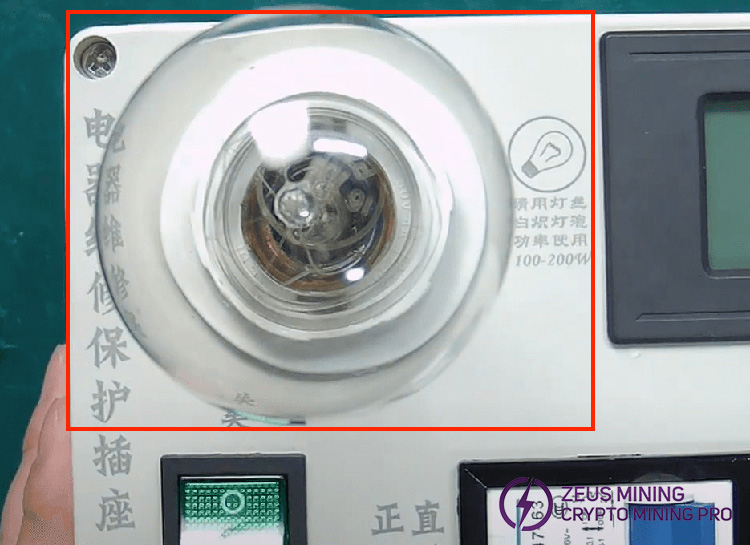

1. Connect the incandescent bulb to the corresponding position.

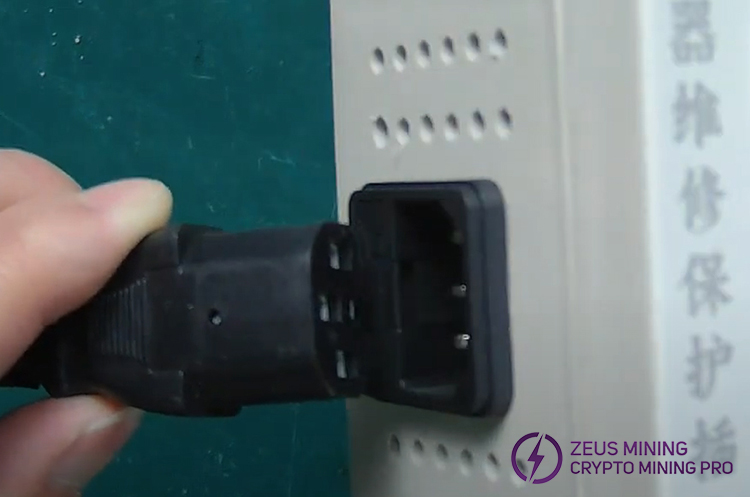

2. Connect the 220V AC voltage plug.

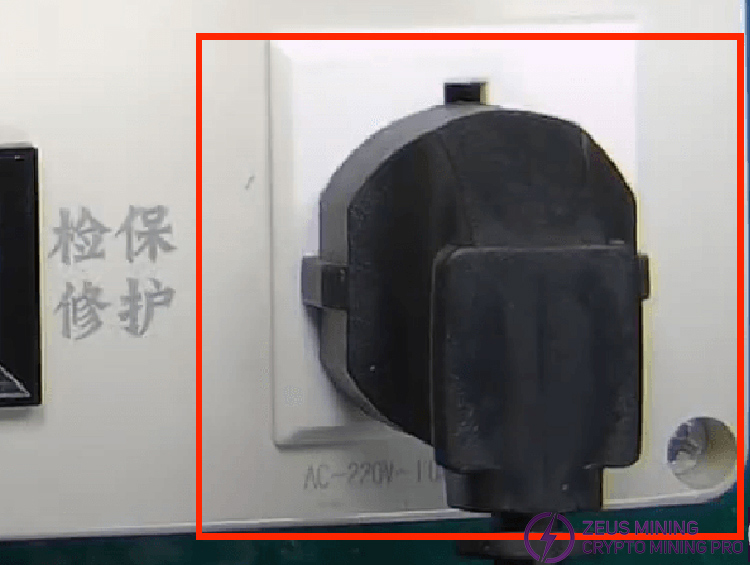

3. Plug the T2 power supply into an outlet.

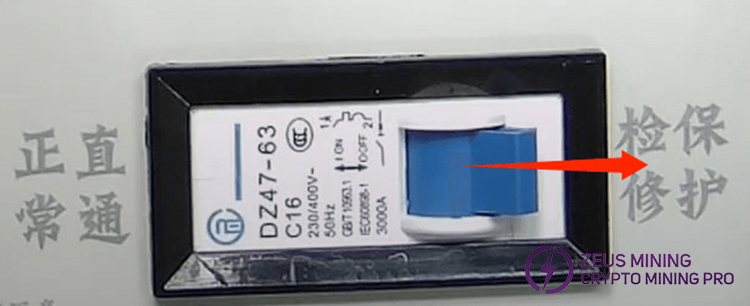

4. Turn the air switch to the maintenance protection mode, and then turn on the T2 power switch.

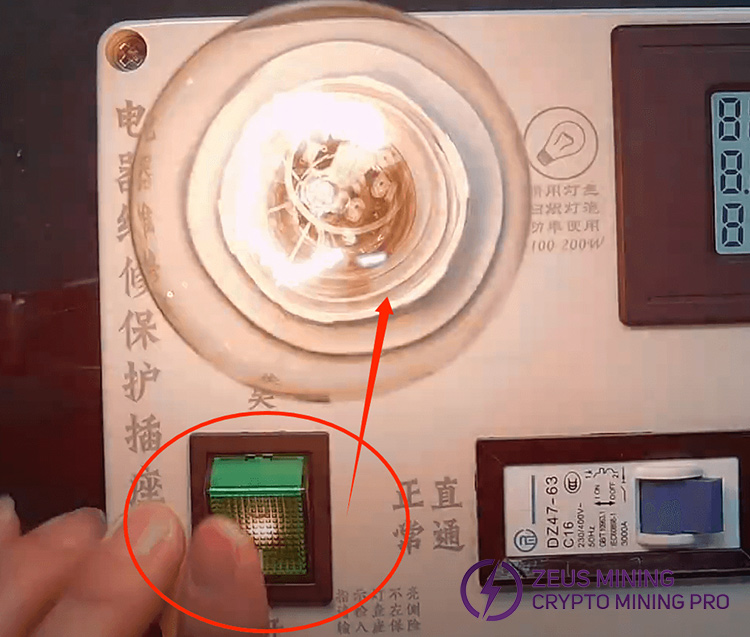

5. Turn on the switch of the electrical repair protection socket switch. If the light bulb flashes, it means that the PSU is not short-circuited.

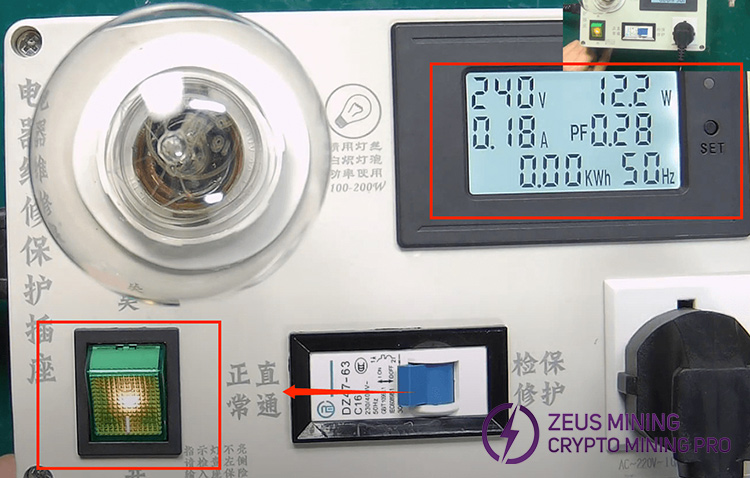

6. Turn the air switch to normal mode, turn on the socket switch, and the power supply can start normally. We can see the voltage, current, power, etc. of the T2 power supply on the display.

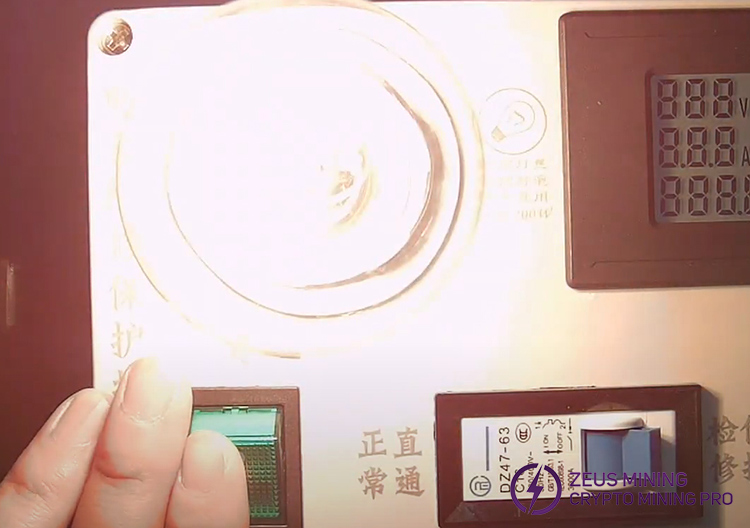

7. If the bulb is always on and the brightness is very high, it means that the PSU is short-circuited. At this time, the air switch cannot be turned to normal mode, otherwise it may cause the T2 power supply fault to expand or burn some components.

This concludes the instructions for using the electrical repair protection socket switch.

The electrical repair protection socket switch can ensure the stable operation of the miner power supply, reduce the failure rate, and enhance the mining efficiency and revenue of the miner.
