What is the 12800W water cooling radiator and how to use it?

The 12.8KW water cooling radiator is specially designed for miners' efficient heat dissipation, and it can support the simultaneous cooling of two ASIC water-cooled miners. It has a wide range of applications, which can be used in most models on the market: such as water-cooled miners like M33S++, M53, S19 Hydro, S19XP Hydro, S19PRO+ Hydro, etc.; at the same time, it is also applicable to air-cooled miners that have been modified through water cooling plate kits such as S19, S19jpro, L7, D7, M20, M30s, M50 series, etc.

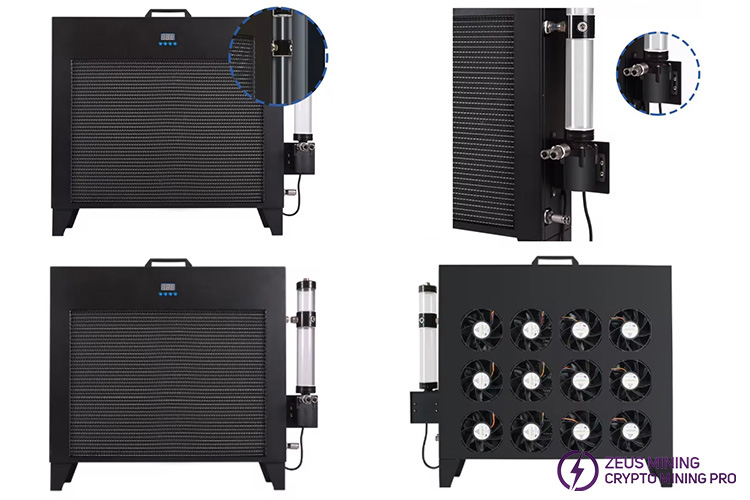

It has 12 built-in powerful intelligent fans, that automatically adjust the speed according to the temperature. It helps the miners quickly dissipate the high heat generated by the hash boards, ensuring they always operate at the best states. The specific advantages are as follows:

1. Equipped with a strong, transparent, and low-noise water pump with a high head and silent operation, without generating excessive noise.

2. 12 powerful intelligent fans, automatically adjusting the speed according to the temperature, effectively saving energy and improving heat dissipation efficiency.

3. Using high-strength acrylic outlet pipes, the water level is visible, and it has the characteristics of high-temperature resistance, impact resistance, and corrosion resistance.

4. Industrial-grade water pumps that are impact-resistant and corrosion-resistant have a long service life and stable water supply.

Specific usage method of the 12.8KW water cooling kit radiator:

1. Fix the water pump bracket on the radiator, then install the pump.

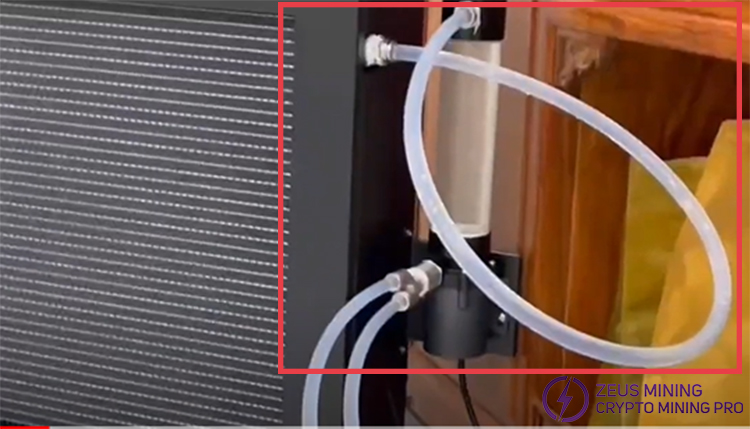

2. Connect the radiator outlet and the water pump inlet with a water pipe, as shown in the figure:

3. Use 2 water pipes to connect to the outlet of the water pump, next, connect the other ends to the inlets of 2 ASIC water-cooled miners (or the upper water distributor interfaces of 2 air-cooled modified water-cooled miners).

4. Use another 2 water pipes to connect the outlets or lower water distributor interfaces of 2 miners to the radiator inlet.

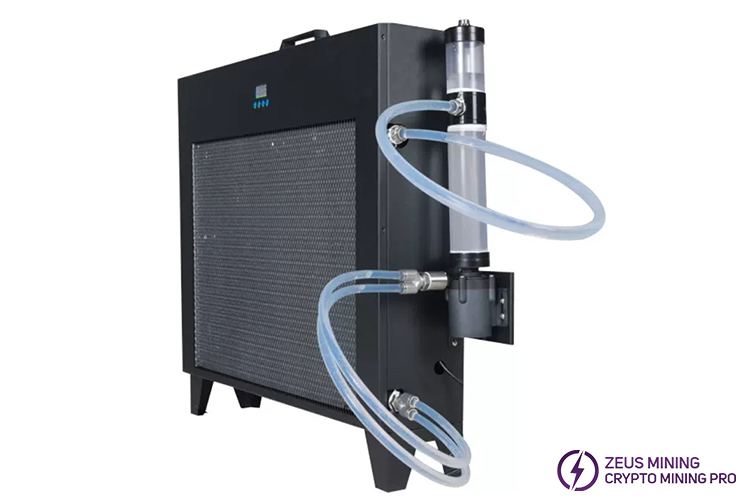

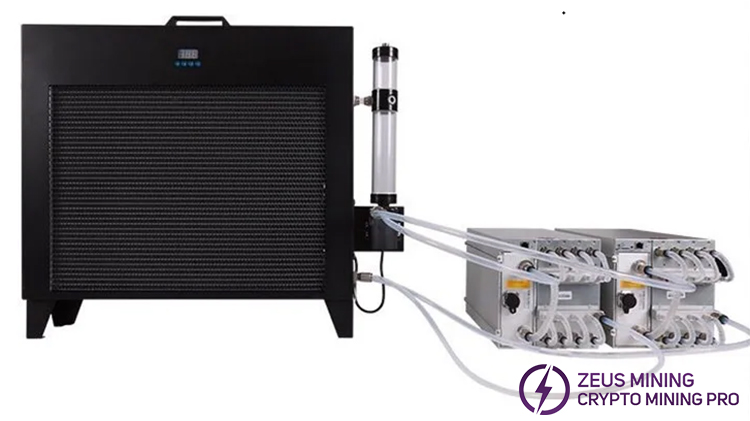

5. Connect the power cord of the water pump. The assembled radiator is shown in the figure:

6. Add coolant to the water pump until the water level no longer drops. Start the radiator and continue to add the cooling liquid until the water level is stable. The maximum water level is about 5-10cm from the top of the pump.

7. Finally, start the miner to observe its operating status through the background.

The radiator is one of the most critical components in the water-cooler system. It undertakes the core heat exchange task. This 2pcs water cooling row can serve 2 miners at the same time with its powerful performance. It is not only a technical innovation but also injects new vitality and competitiveness into the entire mining market. It provides miners with a more efficient heat dissipation solution and is expected to lead the mining industry to a new stage of development.
