Replacement method for Antminer S21Pro A113D control board

The Antminer S21Pro control board adopts the Amlogic A113D main control chip, equipped with a micro USB data interface and a square 4-pin fan interface, ensuring the efficient mining performance of the S21pro miner. Unlike other versions of the A113D control boards, the size of the S21Pro control board has undergone significant changes to match the wider body design.

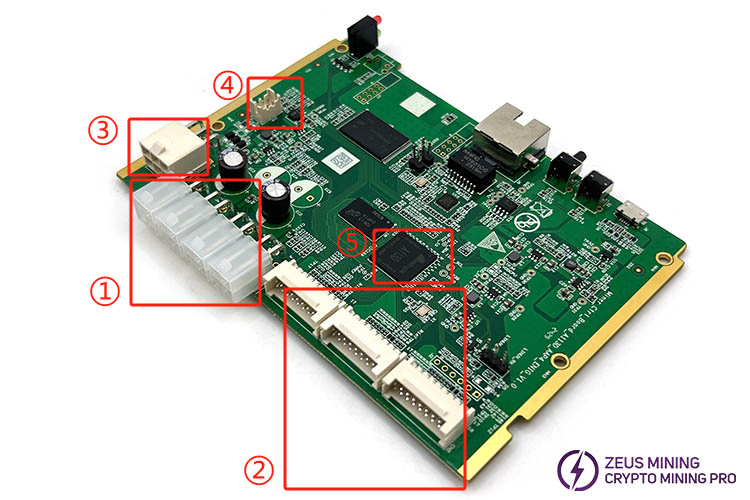

S21Pro control board appearance:

① Square 4-pin fan interfaces

② Hash board 18-pin data cable interface

③ 6-pin power cable interface

④ 6-pin voltage regulating cable interface

⑤ Amlogic A113D CPU chip

As the control center of the entire machine, once the S21Pro control mainboard fails, it will lead to abnormal communication among various components, thereby affecting the overall mining efficiency. The miner may even fail to start, frequently freeze, or automatically restart. The Bitmain S21Pro A113D control board provides a stable and reliable solution for restoring its performance.

Specific replacement steps for the S21Pro control board:

1. Power off the mining machine, unplug the power cord, then wait for a few minutes to let it cool down.

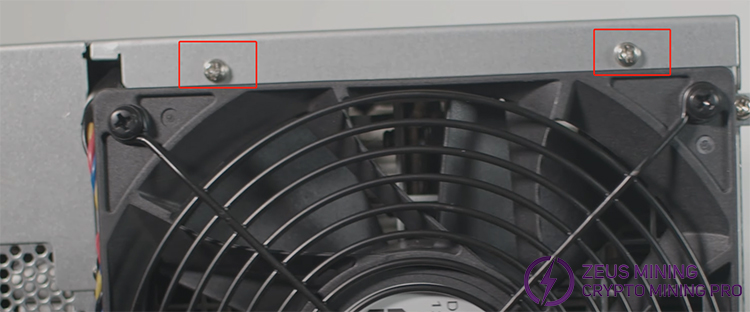

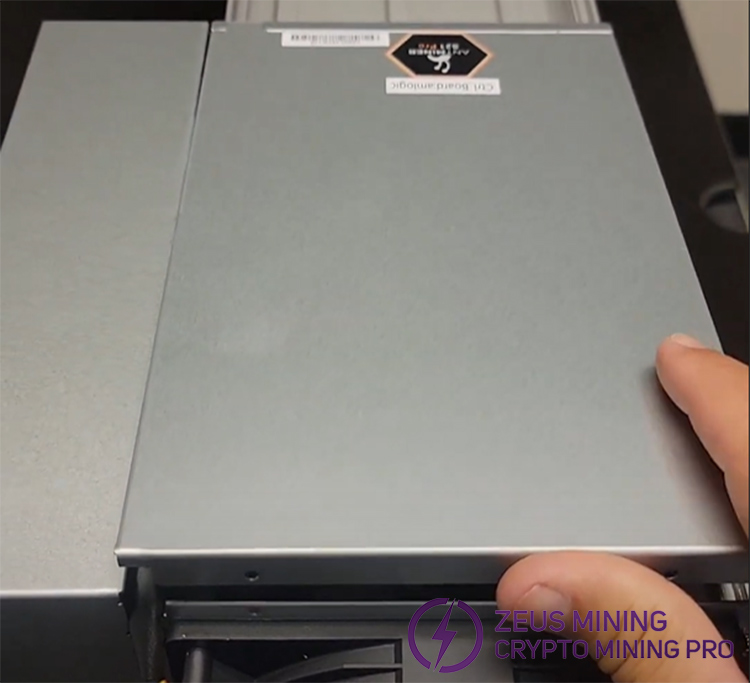

2. Disassemble the 2 fixing screws of the control board cover plate, gently lift and slide it to remove.

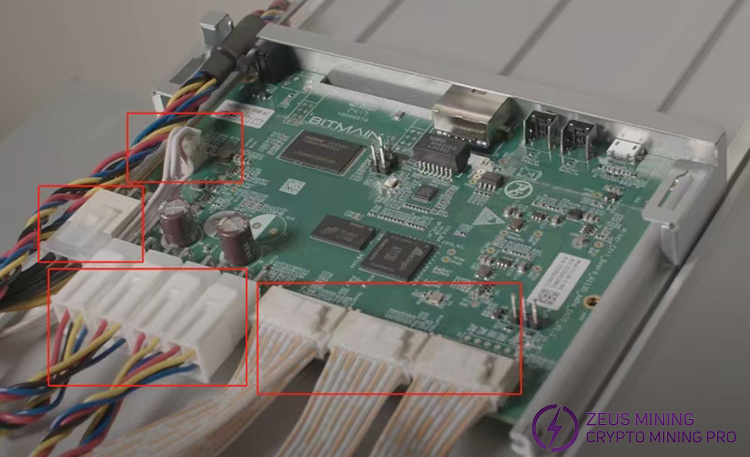

3. Unplug all the ribbon cables connected to the control board.

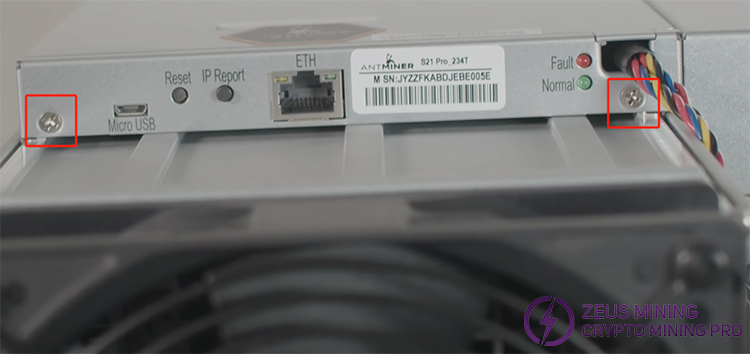

4. Remove the 2 fixing screws of the control board side baffle, subsequently, carefully remove it. Then slide the faulty control board out of the track along the air-inlet direction of the miner.

5. Inspect the new Bitmain S21Pro control board to confirm that its components are well-soldered without any obvious damage. After passing the inspection, install the new control board to its original position.

6. Connect the previously removed cables to the control board's corresponding interfaces, ensuring a stable connection. Then align the side plate with the holes and tighten the screws. Finally, install the top protective cover plate.

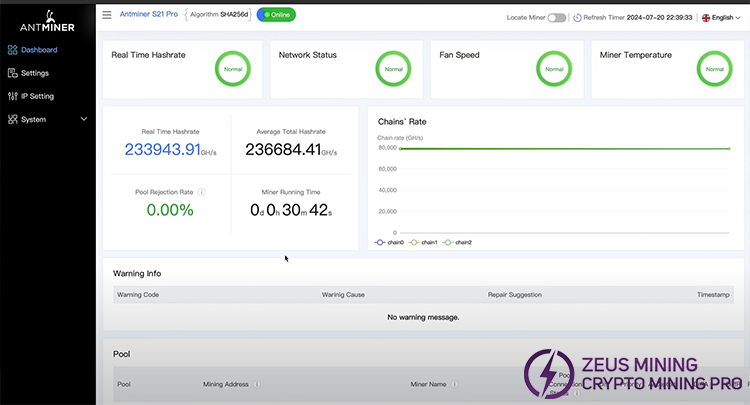

7. Insert the network cable, and then power on the S21Pro mining rig. Enter its background management interface to view its operating data, confirming that the machine has resumed normal operation.

Through the above steps, we can quickly replace the new S21Pro control board to restore its normal operation and maximize the benefits. Timely replacement can reduce the downtime loss caused by troubleshooting. Therefore, please keep a certain inventory of control boards to effectively deal with emergencies.
