Decoding tool EEPROM programming cable usage tutorial

The EEPROM data cable of the hash board decoding tool can rewrite programs into the EEPROM chip, making the data programs of all hash boards of the same miner consistent and helping to restore the normal operation of hash boards. It is especially suitable for problems such as miners failing to work properly due to mixed hash boards or file changes after single-board testing and maintenance.

I. Connection Method

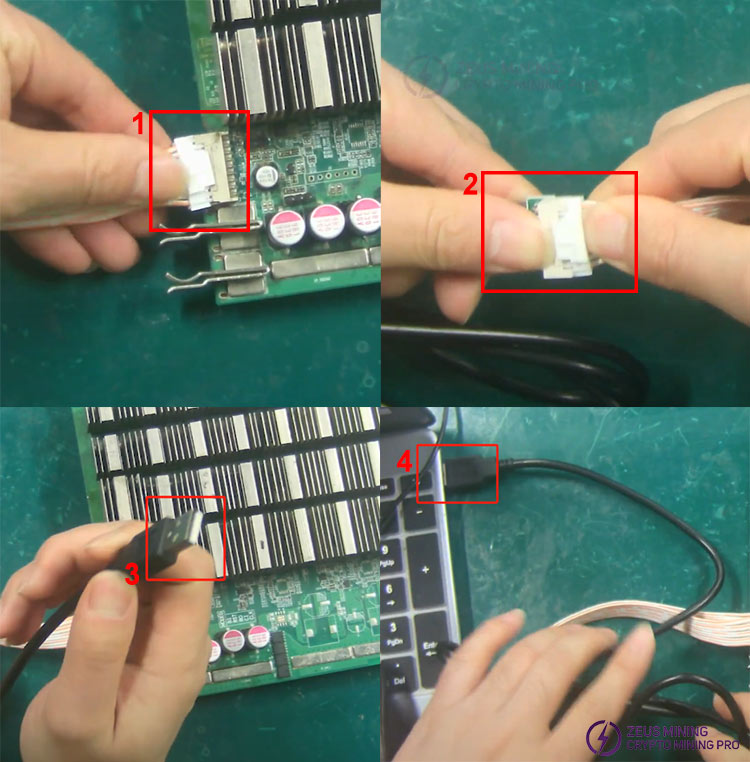

Connect the 18-pin port of the programming cable to the flat cable of the hash board and insert the ribbon flat cable; insert the USB port of the programming cable into the computer slot. After the connection is completed, we can start to use the programming software to read and burn the EEPROM program of the hash board.

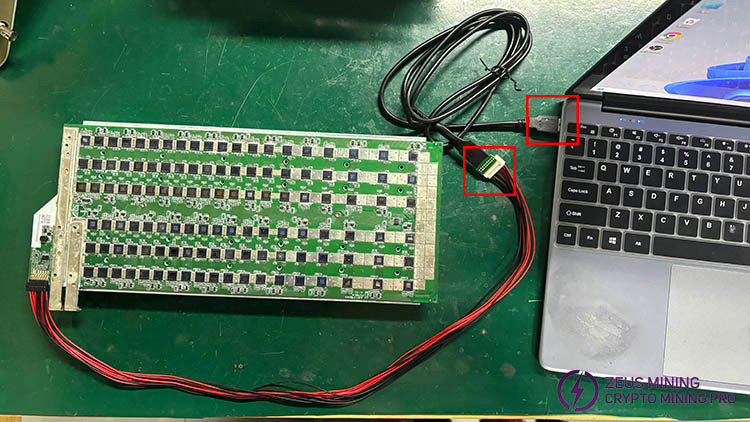

EEPROM programming cable overall connection effect diagram

II. How to rewrite code using hash board code programming cable? Hashboard code programming line tutorial：

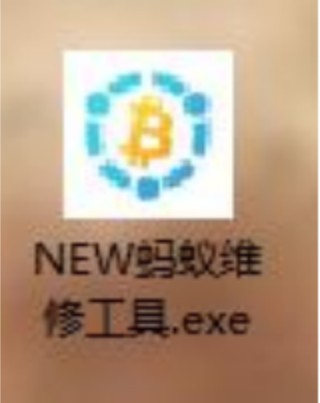

Step 1: First, we double-click to open "NEW Antiner Repair Tool.exe".

Then select "Yes".

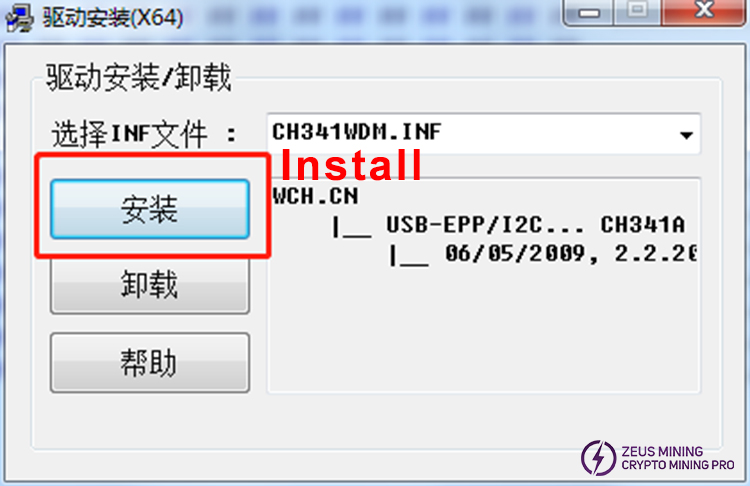

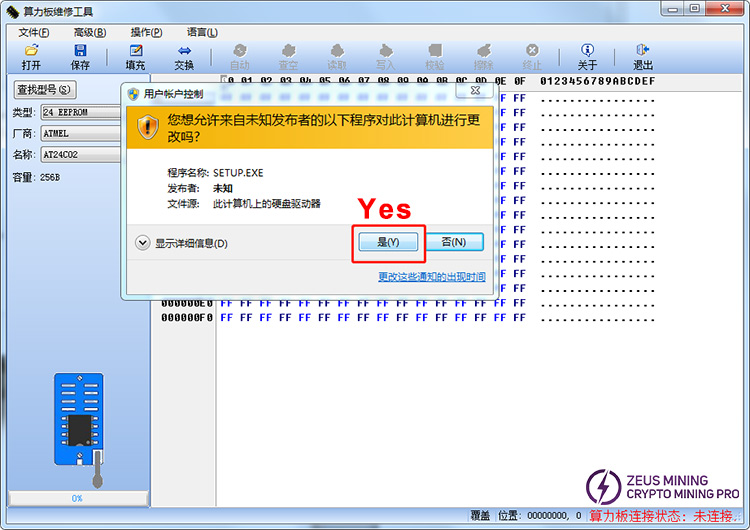

Step 2: Install Antminer Repair Tool Driver

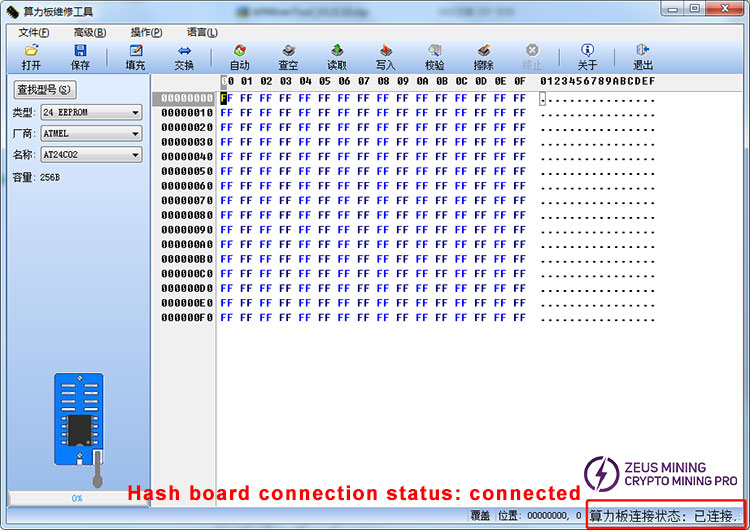

After the driver installation is complete, if the hash board decoding tool cable is connected to the computer, the connection status of the hash board in the lower right corner will prompt "connected".

At this time, we can read and write operations on the hash board!

Step 3: Read the code of the hash board

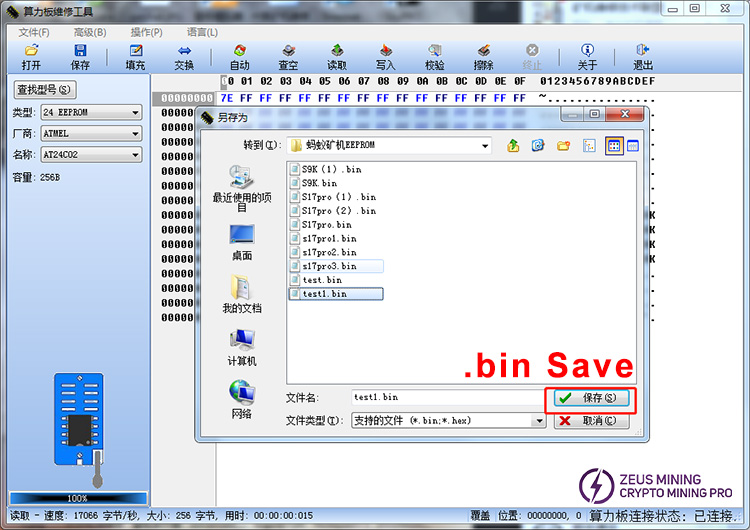

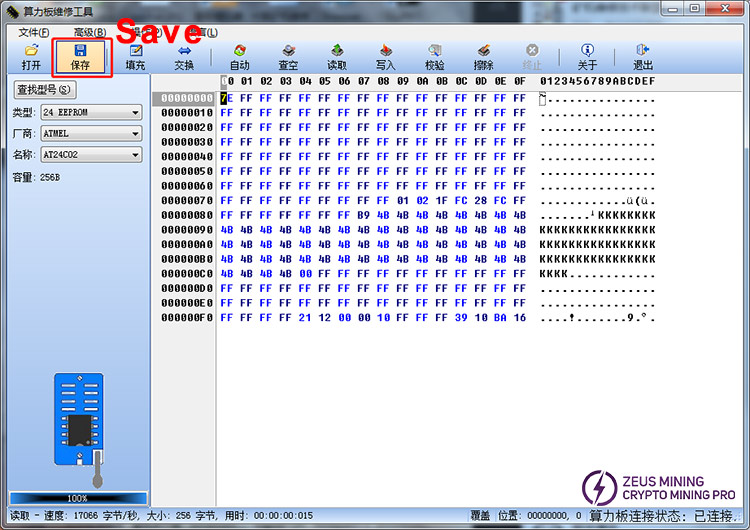

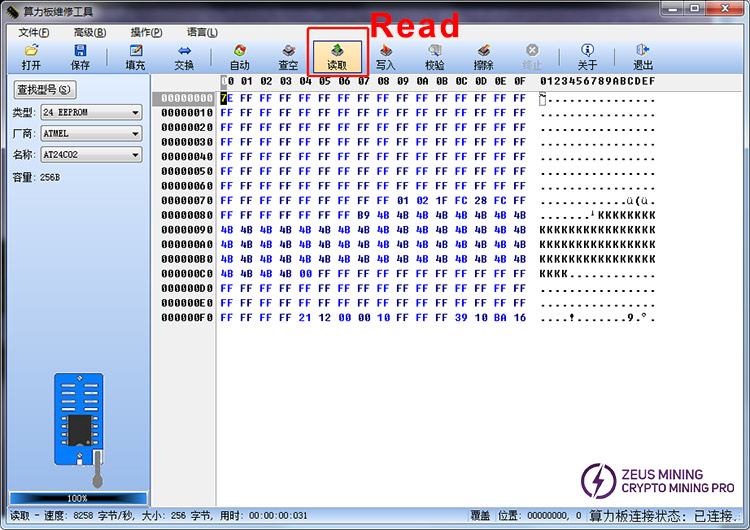

After clicking read, the configuration information of the hash board can be read out, and we can save the hash board configuration file in ".bin" format

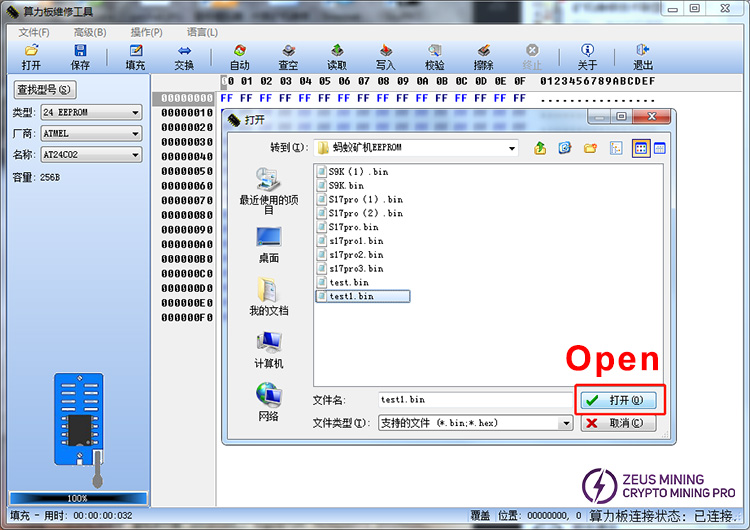

Step 4: Open the previously saved file and write to the new hash board.

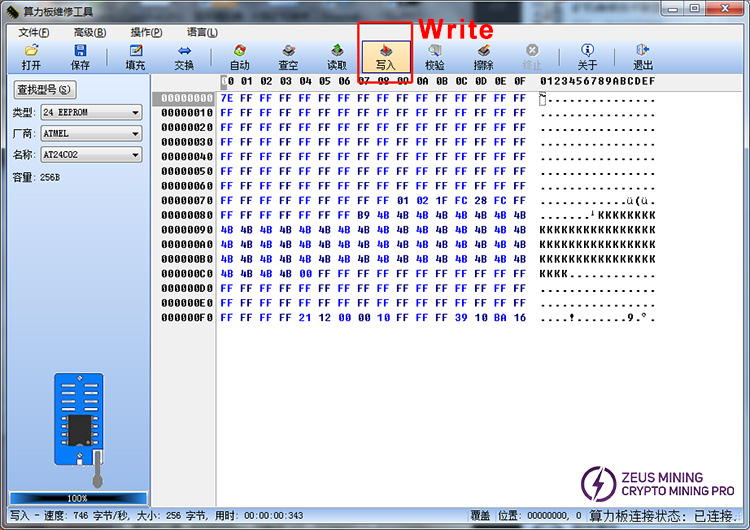

Connect the hash board to which you want to write information, click "Write"

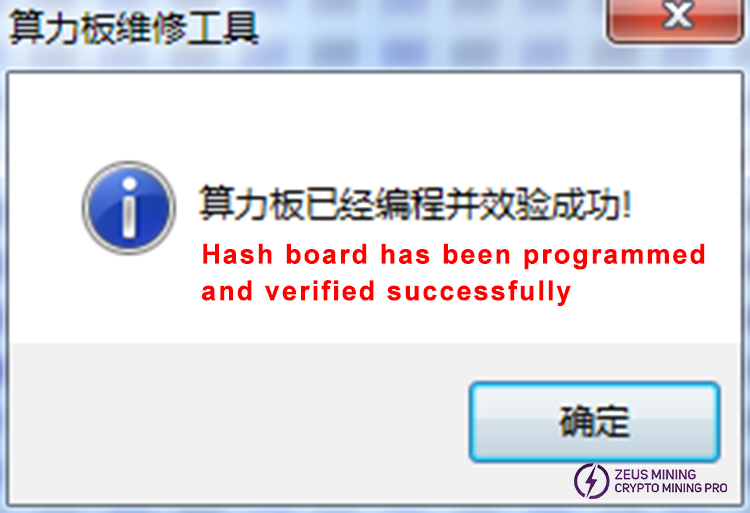

Step 5: Verify whether the writing is successful. After writing, click "Verify". If it is successful, it will prompt "Hash board has been programmed and verified successfully"; if it prompts "Hash board failed to read and write, please check its connection!" Please repeat step 4!

The programming cable connects the hash board and the computer, rewrites the correct program into the EEPROM chip, keeps the hash board data consistent, and restores the normal profitability of miners. It is an indispensable tool in ASIC miner maintenance.
