Oscilloscope Probe Bandwidth Range Selection Guide

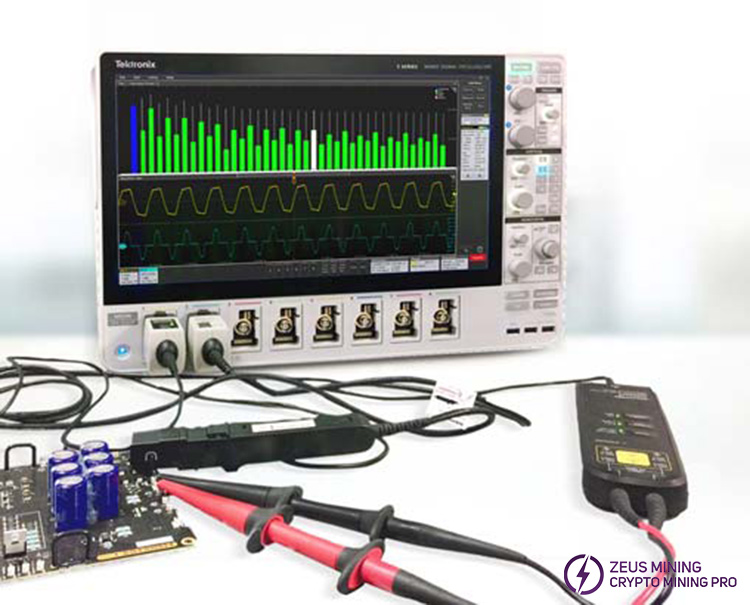

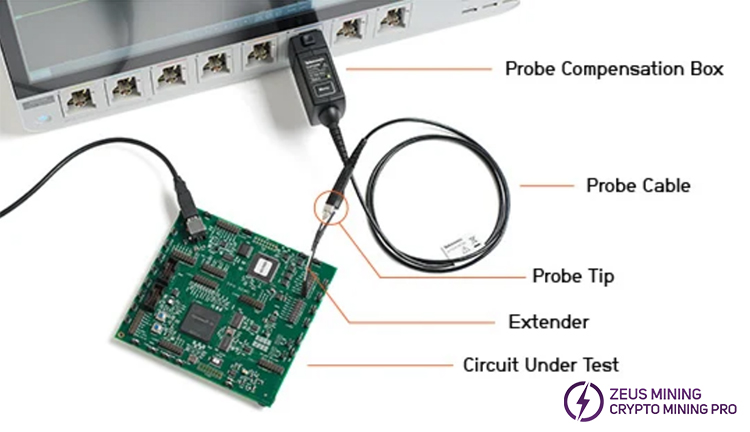

An oscilloscope probe is a combination of cables and connectors that connect the oscilloscope to the circuit under test. It is mainly used for signal access and measurement, transmitting the test signal from the circuit under test to the oscilloscope. The bandwidth of a probe refers to the frequency range over which it can transmit signals. When selecting an oscilloscope probe, we usually focus on its bandwidth and accuracy to ensure the accuracy of the measurement results.

I. Basic concept of probe bandwidth

The probe bandwidth refers to the highest frequency that the probe can transmit, which is a frequency range. The probe bandwidth is usually expressed in terms of -3dB bandwidth (the 3dB bandwidth is the frequency at which the output voltage drops to 1/√2 of the input voltage). When selecting the probe bandwidth, we need to consider the frequency range of the signal to be measured. If the frequency of the signal to be measured exceeds the probe bandwidth, the probe will not be able to transmit the signal correctly, thus affecting the measurement results.

II. Selecting the appropriate oscilloscope probe bandwidth

1. The bandwidth of the oscilloscope probe needs to be higher than that of the oscilloscope because the signal transmission path between the probe and the oscilloscope will introduce signal attenuation and distortion. Generally, the probe bandwidth can be about 1.5 to 2 times that of the oscilloscope, and there is no need to be higher.

2. Select according to the frequency range of the signal under test. The probe bandwidth should be an order of magnitude higher than the highest frequency of the signal under test. For example, the highest frequency of the signal under test is 10MHz. We should choose a probe with a 100MHz bandwidth.

3. Generally, the higher the bandwidth of the probe, the higher the price. Therefore, it is necessary to choose a probe with a reasonable price on the premise of ensuring measurement accuracy.

4. High - bandwidth probes will introduce more noise and errors, and the resolution will also be affected. Considering errors and resolution, if the frequency of the signal to be measured is not very high, a probe with a slightly lower bandwidth can be selected to obtain better measurement accuracy.

5. Different application scenarios require different probe bandwidths. For example, when testing digital signals, a probe with a high bandwidth and short rise time needs to be selected to ensure the accurate transmission and display of digital signals. When testing high - speed analog signals, a probe with an even higher bandwidth is required to ensure the accuracy of the measurement results.

III. Impact of inadequate probe bandwidth range on the oscilloscope

1. It affects the measurement accuracy of the oscilloscope. If the probe bandwidth is insufficient, errors will occur when measuring high - frequency signals. For example, when a 100MHz - bandwidth probe measures a signal higher than 100MHz, the measurement error of the signal amplitude may exceed 10%, and frequency measurement errors may also reach higher MHz.

2. It determines the signal fidelity of the oscilloscope. A probe with insufficient bandwidth will cause distortion or loss when transmitting high - frequency signals, reducing the signal quality.

3. It limits the testing range of the oscilloscope. It is impossible to accurately measure large signals or high - frequency signals. For example, a 100MHz - bandwidth probe cannot measure large signals higher than 100MHz.

Note: To ensure the measurement accuracy, signal fidelity, and testing range of the oscilloscope, select an oscilloscope probe with a sufficient bandwidth range.

IV. Precautions in practical applications

1. Grounding method. The grounding method of the probe will affect the measurement results. There are usually two grounding methods: single - point grounding and fully differential - mode grounding. Single - point grounding is suitable for low - frequency signals, and fully differential - mode grounding is suitable for high - speed analog signals and digital signals.

2. Contact quality. The contact quality of the probe will affect the measurement results. Poor contact will lead to increased measurement errors and noise. Therefore, when using the probe, ensure good contact quality.

3. Probe length. The length of the probe will also affect the measurement results. Generally, the probe length should be as short as possible to reduce the influence of capacitance and inductance, thereby improving the measurement accuracy.

4. Environmental interference. When using the probe, minimize environmental interference as much as possible. For example, avoid placing the probe together with power lines, high - voltage cables, and other interference sources to prevent interference with signal transmission and the accuracy of measurement results.

The appropriate oscilloscope probe can ensure the accuracy and reliability of measurement results, improve the measurement accuracy, signal fidelity, and testing range of the oscilloscope, thereby meeting various application scenarios and requirements, and avoiding problems such as signal reflection and distortion caused by probe mismatch or improper selection.

Related Products:

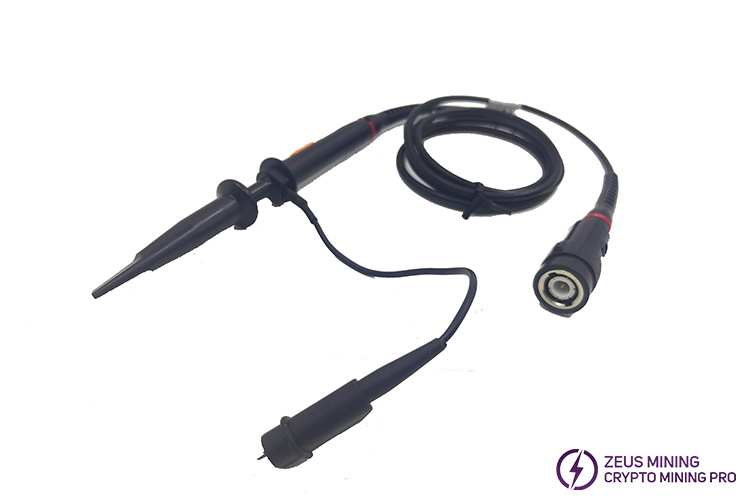

P6020 oscilloscope probe kit
