Antminer APW12 12V-15V Power Supply Manual

Ⅰ. APW12 Performance Properties and Range of Use

APW12 series power supply is a high efficiency DC power supply. It has two single-phase AC inputs and two DC outputs.

(1). DC output 1 (OUT1)：12V-15V voltage adjustable output，the maximum current can reach 233A；

(2). DC output 2 (OUT2)：12V voltage fixed output，the current can reach 15A. Maximum DC power output of OUT1 is 3600W, current and power vary under different voltage. It’s suitable for the field of servers and mining machines which require strict power supply.

Control board and cooling fan can be powered by OUT2. DC loads, circuits and other devices within 12V and 15A can also be powered by OUT2.

APW12 power supply has the following characteristics:

1. 200-240V wide voltage input, frequency 50Hz；

2. Active power factor correction function, PF＞0.99（full load）；

3. Adjustable output voltage, remote control；

4. Switch can be controlled remotely, supporting communication with upper computer;

5. Output ripple <1%;

6. There is under-voltage, output short-circuit, overload and over-temperature protection inside;

7. Maximum conversion efficiency 95%;

8. Density of small size and high power;

Selection of high-quality devices designed through reasonable schemes ensures the stability and reliability of the product, which can work with full load in high temperature environment of less than 45℃ for a long time.

Ⅱ. APW12 Exterior Design Introduction

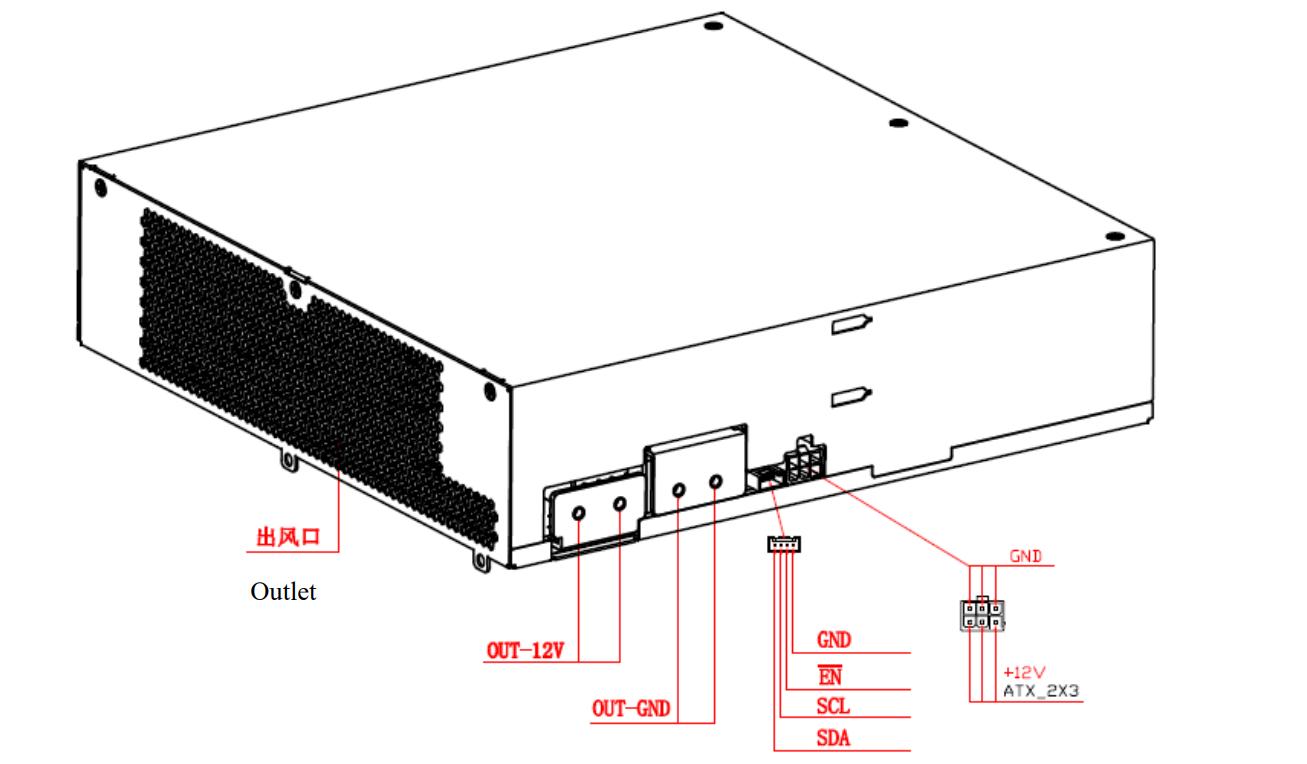

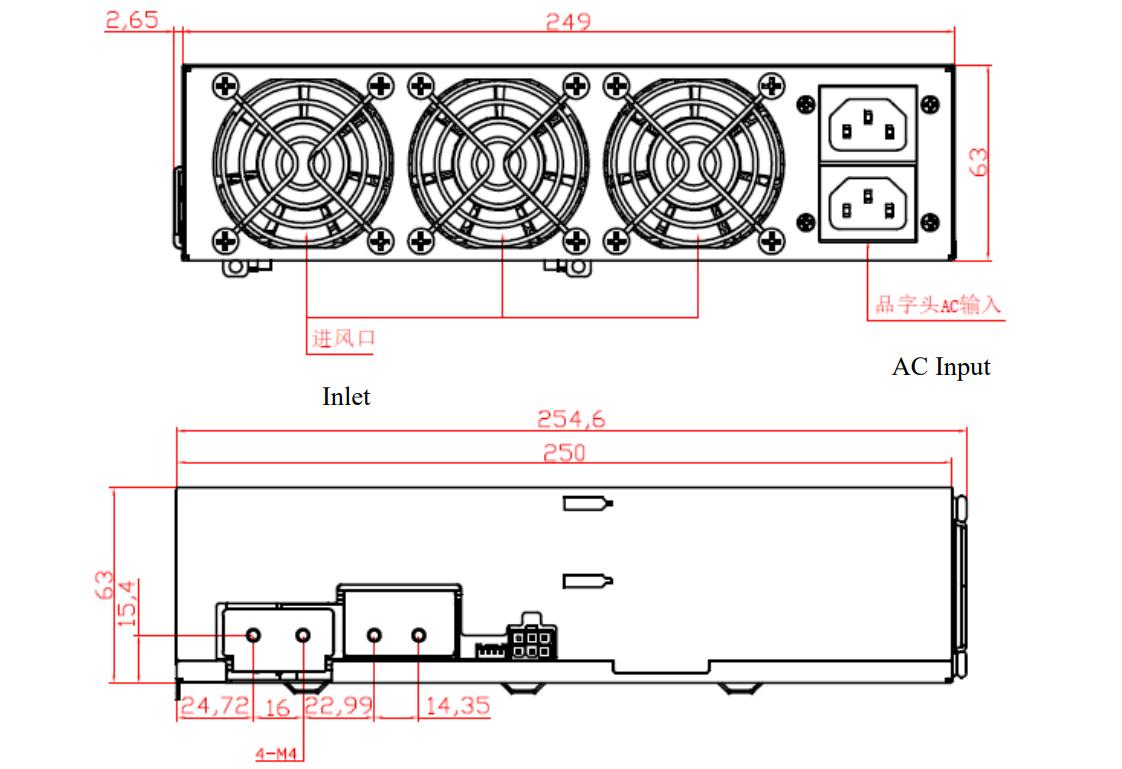

●Power supply distribution on the front panel:

2 zigzag AC input interfaces;

3 6025-size cooling fans.

●Power supply distribution on the left side:

output terminal (OUT1), fixed with 4 M4 screws;

one 4-Pin signal terminal;

one 5569 terminal with 12V fixed voltage output.

●Power supply distribution on the back panel: hexagonal heat dissipation outlet, which constitutes the outlet of the cooling fan.

●The type of AC input terminal on the front panel of power supply is C14, which needs AC input cable with C13 interface.

●The 4-Pin signal terminal is the communication interface between the external control board and the power supply. SDA/SCL is I2C protocol, which can adjust the output voltage of the power supply through I2C. EN is the enable signal of power supply, and the power supply of control board can be enabled by EN, which is effective at low level.

●The output (OUT1) uses copper terminals, 2 fixed holes near the outlet are output positive poles, 2 fixed holes near the signal terminals are output negative poles, and output wires or output copper bars can be fixed by M4 screws on the terminals etc. for easy and flexible use.

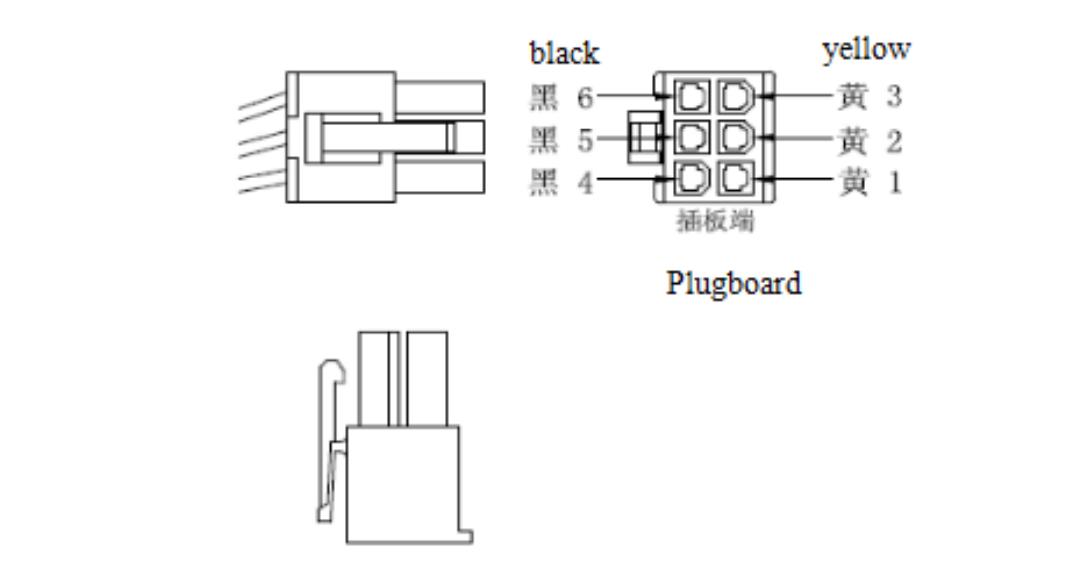

●OUT2 uses 5569 connector, 2*3PIN. The 5569 connector and the corresponding schematic diagram are as shown below:

Ⅲ. APW12 Specifications

Ⅳ. Precautions for Use

1. Before using the PSU, please ensure that your local voltage and power outlets are compatible with the requirements of the product. Output voltage from the power socket should meet the product’s voltage requirement. The leading-out terminal model, polarity and quantity must also be in accordance with the product requirements stipulated in this guide.

2. Please ensure that the PSU appears to be in good shape and has not suffered any damage in transit. If the exterior of the PSU appears damaged, do not use it.

3. Make sure that the ground electrode of PSU is properly grounded to ensure the electricity safety and EMI reduction.

4. As different countries have different power outputs, we do not supply an AC input cable with  PSUs.

Customers should purchase an AC input cable output that is compatible with the local power grid plug. The type number of the cable end interface to be connected with the power panel is C13, and the sectional area of copper conductor for cables should not be less than 1 square millimeter.

5. The PSU must be installed in a dust-free environment with good and unobstructed air circulation. Any items blocking the air flow of the PSU is prohibited and under no circumstances should the PSU be installed in an enclosed place. Installation also should not be done in environment where there is high condensation or high level of salt content and humidity in the air.

6. The correct way to use the PSU is to connect the output wire terminal, and then connect the input cable after the load and PSU output terminals are connected. Either connecting or disconnecting the output terminals are forbidden when the PSU is powered on. Voltaic arcs generated by excessive DC can damage

DC output terminals and pose a fire hazard.

Maintaining a good working environment and derating can greatly prolong the lifespan of PSU. It is generally recommended that the load power not exceed 90% of the rated power of the PSU and the temperature not exceed 45 degrees Celsius. It should be used in a dust-free, non-polluted area where there is low humidity and low salt content in the air. The derating method will also allow the PSU to work at a higher efficiency point, which can help in electricity savings.

Ⅴ. Troubleshooting

Caution:

1. The power supply is intended for building-in use as a component part of end system.

2. When installing the switching power supply into the end system, suitable enclosure should be

provided by the end system.

3. When installing the switching power supply into the end system, the earthing part of power supply should be earthed in end system. And the end system shall be connected to an earthed mains socket outlet.
