| Unit Price: | $ 1.7 |
WhatsApp : +8618623251355
Telegram : @zeusmining_presalesHF115F/012 minniature high power DC relay for APW3++ / APW7 / APW11 PSU repair

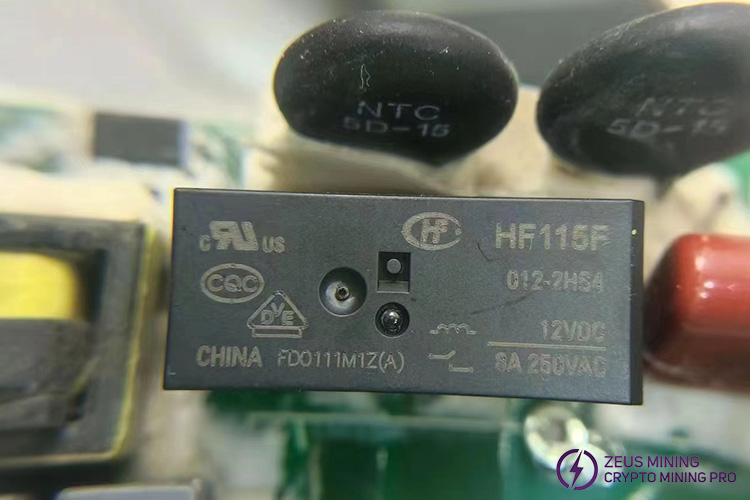

The miniature high-power relay HF115F 012-2HS4AF has a variety of contact forms and sockets to choose from, meets VDE0700/0631 reinforced insulation requirements, and meets IEC60335-1 standards and RoHS, can provide products that meet the requirements of reflow soldering. It is suitable for the development and production of printed circuit boards. Support miner power supply repair use.
Specification:
Model: HF115F/012-2HS4AF
Contact switching capacity: 16A
Contact material: AgSnO2
Dielectric withstand voltage between coil and contact: 5kV
Creepage distance: 10mm
UL insulation class: F-class insulation class is available
Dimensions: 29.0mm*12.7mm*15.7mm
Temperature range: 85°C
