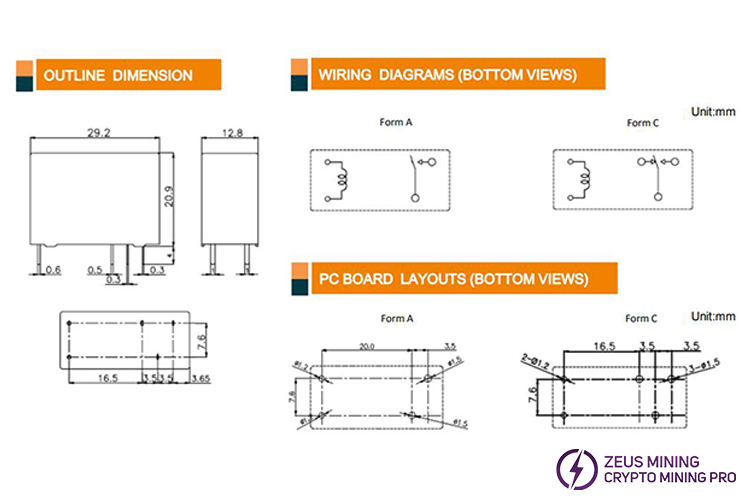

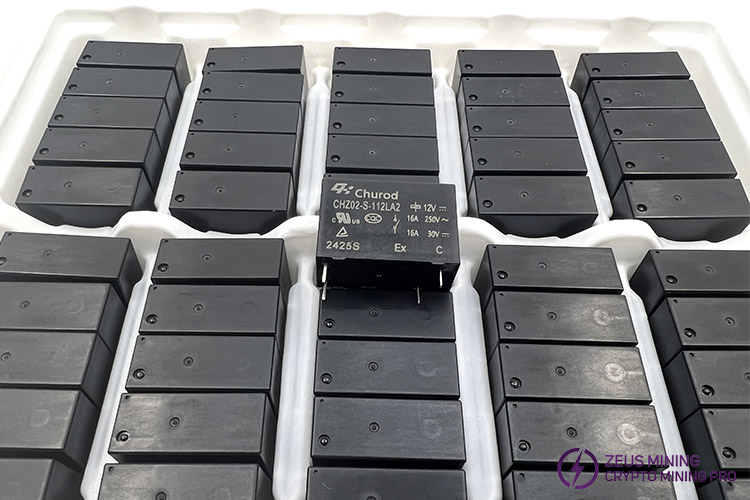

Telegram : @zeusmining_presalesCHZ02-S-112LA2 is a electromagnetic power relay on Whatsminer P221C PSU and P222C PSU. Its product parameters are 12V 16A 4 pins, one set ordinarily open, and the size is 29.2x12.8x20.9mm. It can provide sensitive and standard coils with a dielectric strength of 5000VAC between coil and contact, designed to meet cULus, TUV, and CQC requirements.
Product parameters:
Contact Material: Silver Alloy
Initial contact resistance: maximum 100m2@6VDC, 1A
Maximum switching voltage: 250VAC/30V DC
Maximum switching current: 16A
Maximum switching power supply: 4000VA/480W
Insulation resistance: 1000Ω min (500VDC)
Dielectric strength:
Between coils: 5,000VAC, 50/60HZ, for 1 minute
Open contact: 1,000VAC, 50/60HZ for 1 minute
Surge voltage between coil and contact: 10000V (1.2/50us)
Ambient temperature: -40~+85°C (no icing or condensation)
Ambient humidity operation: 20% to 85% relative humidity
