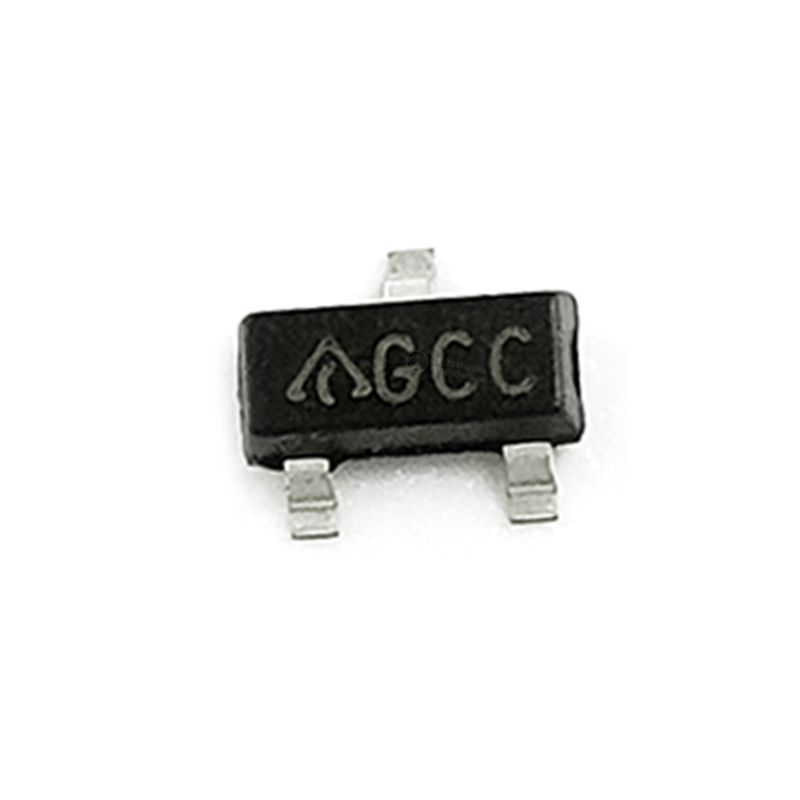

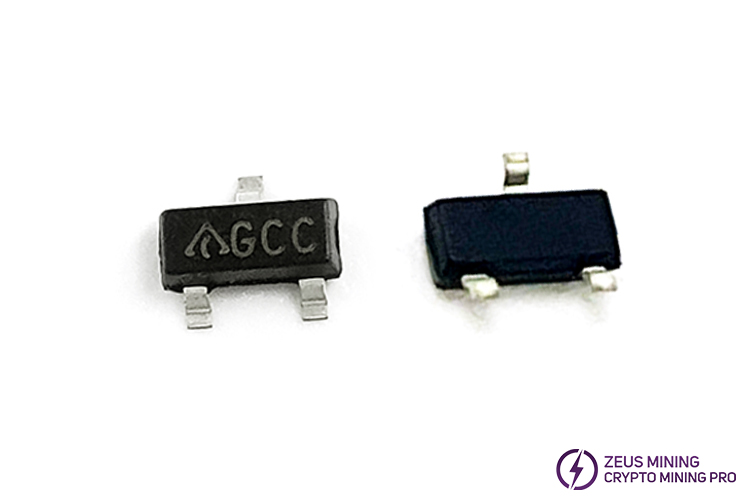

Telegram : @zeusmining_presalesThe AP2125K-4.2TRG1 is 300mA, positive voltage regulator ICs fabricated by the CMOS process.Each AP2125K-4.2TRG1 is equipped with a voltage reference, an error amplifier, a resistor network for setting output voltage, a chip enable circuit, a current limit circuit and an OTSD (over-temperature shut down) circuit to prevent the IC from over current and over temperature.
The AP2125K-4.2TRG1 has features of high ripple rejection, low dropout voltage, low noise, high output voltage accuracy and low current consumption which make them ideal for use in various battery-powered apparatus.
Features:
Low Standby Current: 0.01µA Typical
Low Quiescent Current: 60µA Typical
Extremely Low Noise: 50µVrms Typical
Maximum Output Current: 300mA (Min.)
High Output Voltage Accuracy: ±2%
Compatible with Low ESR Ceramic Capacitor
Excellent Line/Load Regulation
SOT-23-5 package
Applications:
CDMA/GSM Cellular Handsets
Battery-powered Equipment
Laptops, Palmtops, Notebook Computers
Hand-held Instruments
PCMCIA Cards
Portable Information Appliances
