| Unit Price: | $ 0.18 |
WhatsApp : +8618623251355

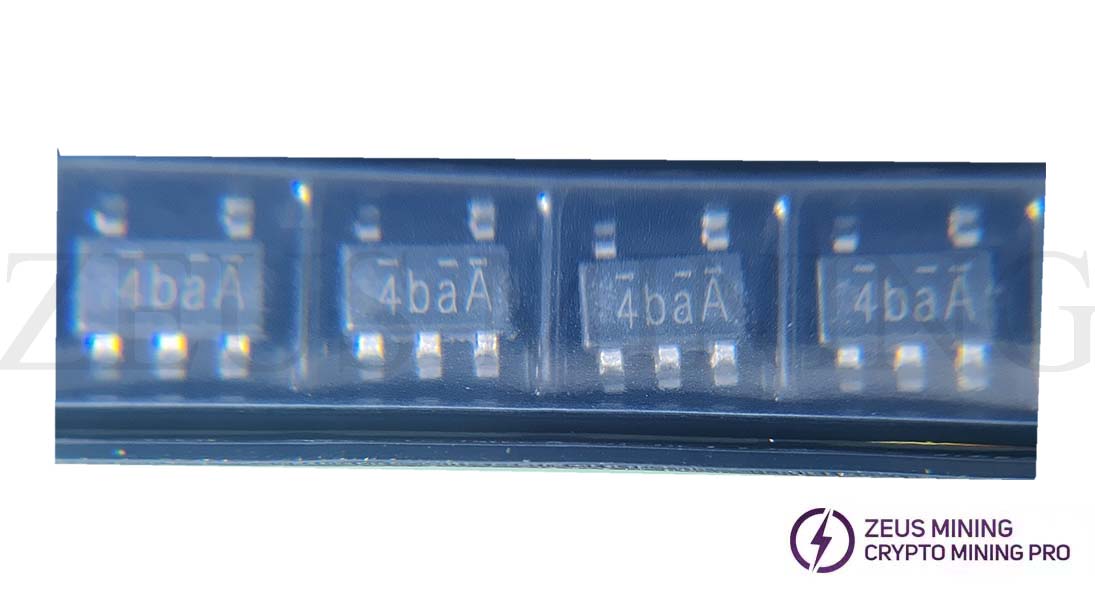

Telegram : @zeusmining_presalesTT2102-ADJ 0.8V is a high-speed, low dropout, high precision output voltage LDO voltage regulator low current consumption positive voltage regulator developed using CMOS technology. Applicable to the AntminerT17+ hash board, each domain has a 0.8V LDO tube, distributed on the hash board Top and bottom half (beside 1.8V).
Due to the built-in low on-resistance transistor, the dropout voltage is low and a large output current can be obtained. External output feedback can easily get the voltage required by customers. In order to make the load current not exceed the current capacity of the output transistor, built-in overcurrent protection, overtemperature protection and short circuit protection.
Characteristic:
Programmable output: down to 0.8V.
High feedback accuracy: the accuracy can reach ±1.5%
Low input and output voltage difference: 300 mV typical value (product with output of 3.0V, when IOUT=100mA)
High Ripple Rejection Ratio: 50dB (1 kHz)
Low current consumption: 30μA (TYP.)
Maximum output current: can output 300mA (VIN≥VOUT+1V)
Standby current: less than 0.1μA
Built-in Protection: Built-in over-current protection, over-temperature protection and short-circuit protection circuits
