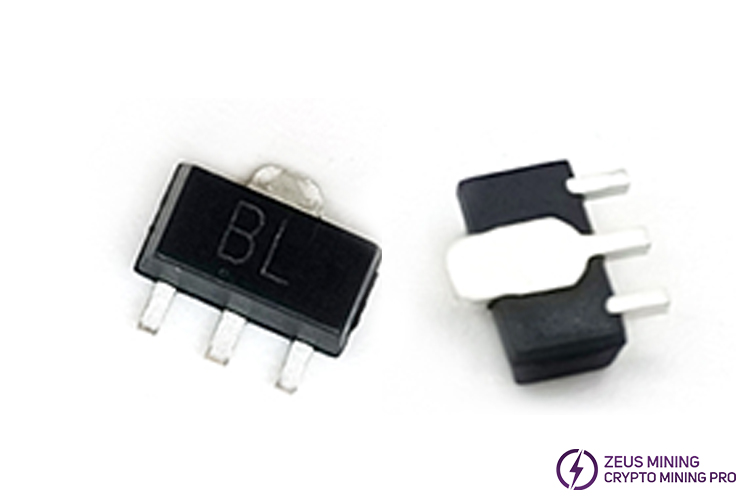

BCX56 BL
BCX56 BL
BCX56 BLBCX56 BL
Ratings:
( 527 Reviews )
BCX56 BL
Function: BCX56-16 PNP transistor for Whatsminer P21 power supply repair.
Unit Price: $ 0.06
MOQ: 10    Unit Weight: 0.001 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

BCX56-16 NPN Silicon AF Transistors

The BCX56-16 is a complementary PNP transistor for the BCX53-16.

BCX56-16 is used in medium power switching or amplification applications and AF driver and output stages. Available in a "green" molded plastic package. The matte tin finish leads are solderable per MIL-STD-202 method 208. UL flammability rating is 94V-0, totally lead-free & fully RoHS compliant.

BCX56-16

Parameter:

VCBO:100V

VCEO:80V

VEBO: 5V

IC: 1A

ICM: 1.5A

IB: 100mA

IBM: 200mA

Ptot: 500mW

Tj,Tstg: -65℃ to +150 ℃

RθjA: 75 °C/W

RθjC: 35 °C/W

Features：

Marking: BL

Package: SOT-89

Low collector-emitter saturation voltage  VCE(sat) < 500mV @ 0.5A

Ic = 1A Continuous Collector Current

Applications:

Medium Power Switching or Amplification Applications

AF driver and output stages
