| Unit Price: | $ 10 |
WhatsApp : +8618623251355
Telegram : @zeusmining_presalesEEPROM Imposition programming burner for 24C series chip for Bitmain Antminer S17/T17 series hash boards. Includes 1 download cable host, and 6 Dupont cables.

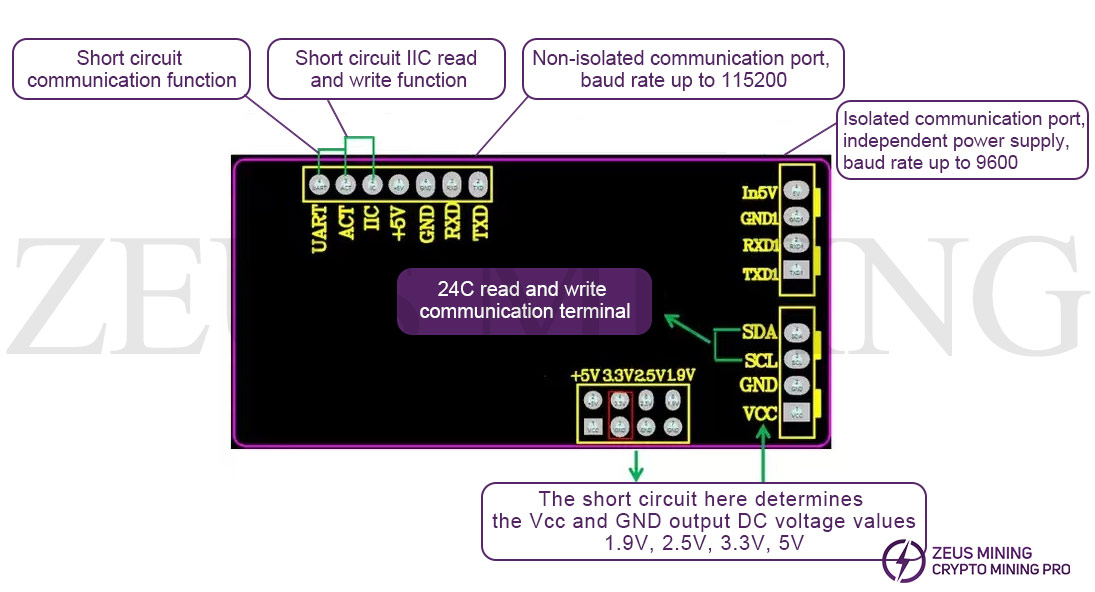

The description of the download cable host is as follows:
Function:
Support voltage regulation output function can output 5V, 3.3V, 2.5V, 1.9V
Support online download for STC series MCU/SST series/Philips etc.
Supports the read and write functions of a full range of 24C memories
Can be used for USB to TTL board alignment and nine brushing functions to replace the PL2303 board
Can be used as a USB to the serial port for serial communication function
Feature:
Fast programming speed.
Applicable to XP and WIN7 operating systems.
The connector adopts a USB male head, which can be directly inserted into the computer USB port, or can be inserted into the computer USB port after adding a USB extension cable.
When programming the chip, this download cable can directly supply power to the target board, and the target board does not need to be connected to any power supply.
The download wire support chips are as follows:
2.1 AT series
24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C128, 24C256, 24C512, 24C1024.
24LC01, 24LC02, 24LC04, 24LC08, 24LC16, 24LC32, 24LC64, 24LC128, 24LC256, 24LC512, 24LC1024.
2.2 STC series
STC89C51RC, STC89C52RC, STC89C53RC, STC89C54RD+, STC89C55RD+, STC89C58RD+, STC89C510RD+, STC89C512RD+, STC89C513RD+, STC89C514RD+, STC89C516RD+, STC89C58RD, STC89C561RD, etc.
STC12C1052, STC12C2052, STC12C3052, STC12C4052, STC12C5052, STC12C1052AD, STC12C2052AD, STC12C3052AD, STC12C4052AD, STC12C5052AD, etc.
STC11F01, STC11F02, STC11F03, STC11F04, STC11F05, STC11F01E, STC11F02E, STC11F03E, STC11F04E, STC11F05E, etc.
STC10F02, STC10F04, STC10F06, STC10F08, STC10F010, STC10F012, etc.
2.3 STC12C5A60S2 series
2.4 STC12C5608AD series
