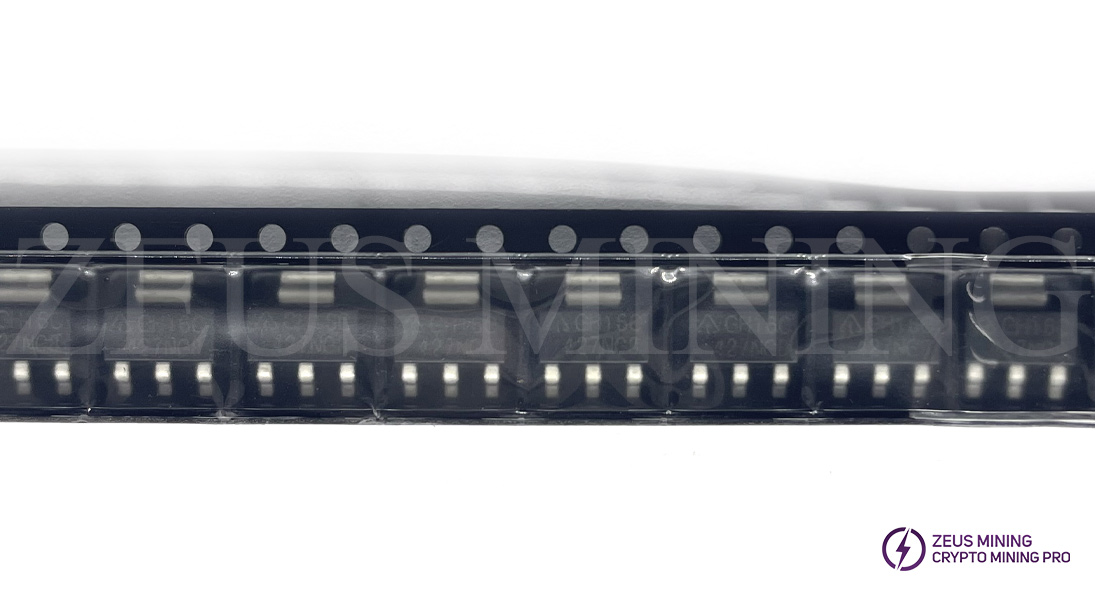

AZ1117CH-1.8TRG1 GH16C

The AZ1117CH-1.8TRG1 is a low dropout three-terminal regulator. Suitable for PCB motherboard. The Az1117C has been optimized for low voltage where transient response and minimum input voltage are critical. It provides current limit and thermal shutdown. Its circuit includes a trimmed bandgap reference to assure output voltage accuracy to bewithin±1%. On-chip thermal shutdown provides protection against a combination of high current and ambient temperature that would create excessive junction temperature.

The AZ1117C is available in 1.2V15V1.8V2.5V3.3V5.0Vfixed output voltage versions and ADJ output voltage versions. The fixed versions integrate the adjusted resistors and are also available in an adjustable version which can set the output voltage with two external resistors.

The Az1117C is available in the industry-standard TO252-2 Series(including TO252-2(3)TO252-2(4)and TO252-2(5))SOT89 and SOT223 power packages.

Parameters:

Manufacturer: Diodes Incorporated

Product Category: Low Dropout Regulators

Installation style: SMD/SMT

Package / Case: SOT-223-3

Output voltage: 1.8 V

Output current: 800 mA

Number of outputs: 1 Output

Polarity: Positive

Quiescent current: 6 mA

Input voltage (min): 3.2 V

Input voltage (max): 15 V

PSRR/Ripple Rejection - Typical: 70 dB

Minimum operating temperature: - 20 C

Maximum operating temperature: + 125 C

Fallback voltage: 1.2 V

Series: AZ1117CH

Trademark: Diodes Incorporated

Fallback Voltage—Maximum: 1.3 V

Load Regulation: 2 mV

Product Type: LDO Voltage Regulators

Subcategory: PMIC - Power Management ICs

Type: Linear Regulator

Unit weight: 112 mg

Alternative model:

AZ1117CD-1.8TRG1

TO252-2

AP1117D18G-13

TO-252-3 1.8V 1A 3Pin

AP1117D18L-13

TO-252-2

AZ1117D-1.8TRE1

TO252-2
