AZ1117CH-2.5TRG1 GH15D
AZ1117CH-2.5TRG1 GH15D
Ratings:
( 527 Reviews )
AZ1117CH-2.5TRG1 GH15D
Unit Price: $ 0.14
MOQ: 20    Unit Weight: 0.001 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

AZ1117CH-2.5TRG1 2.5V 800MA is a low-dropout three-terminal regulator on Avalon 8 series PMU board that provides current limit and thermal shutdown to ensure output voltage accuracy within ±1%. In addition, on-chip thermal shutdown protects against excessive junction temperatures caused by a combination of high current and ambient temperature. It is optimized for low voltage where transient response and minimum input voltage are critical. The device is available in a 2.5V fixed output voltage version and an ADJ output voltage version, and it is packaged in the industry standard SOT223.

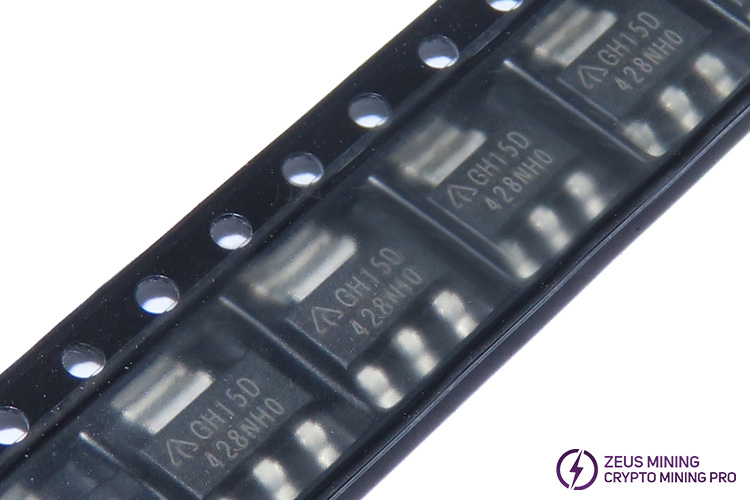

AZ1117CH-2.5TRG1 voltage regulator chip

Product parameters:

Series: AZ1117C

Package: Tape & Reel (TR)

Cut Tape (CT): Digi-Reel®

Product Status: Active

Output Configuration: Positive

Output Type: Fixed

Number of Regulators: 1

Voltage - Input (Max): 15V

Voltage - Output (Min/Fixed): 2.5V

Voltage Dropout (Max): 1.3V @ 800mA

Current - Output: 1A

Current - Quiescent (Iq): 6 mA

PSRR: 70dB (120Hz)

Protection Features: Thermal Shutdown

Operating Temperature: -20°C ~ 125°C (TJ)

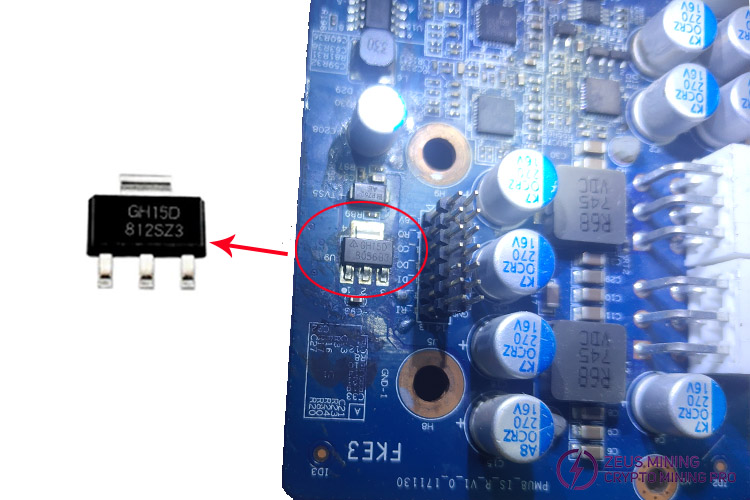

AZ1117CH-2.5TRG1 841 PMU location

Applications:

• USB devices

• Add-on cards

• DVD players

• PC motherboards

Related product:

Avalon 821 841 PMU
