ACPL-W314
ACPL-W314
ACPL-W314ACPL-W314
Ratings:
( 527 Reviews )
ACPL-W314
Function: Used to replace failed components of Whatsminer P21 power supply.
Unit Price: $ 0.6
MOQ: 10    Unit Weight: 0.001 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

The ACPL-W314 comprises a GaAsP LED optically coupled to an integrated circuit with a power output stage. These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate-controlled devices. The voltage and current supplied by this optocoupler make it ideal.

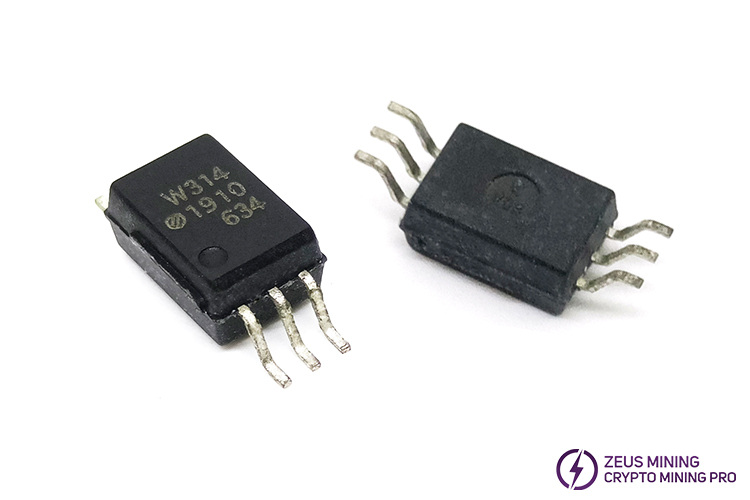

ACPL-W314 price

Product specifications:

0.6-A maximum peak output current

0.4-A minimum peak output current

0.7-μs maximum propagation delay over the temperature range

ICC(max) = 3-mA maximum supply current

25 kV/μs minimum common mode rejection (CMR) at VCM = 1500V

Wide VCC operating range: 10V to 30V over the temperature range

Wide operating temperature range: –40°C to 100°C

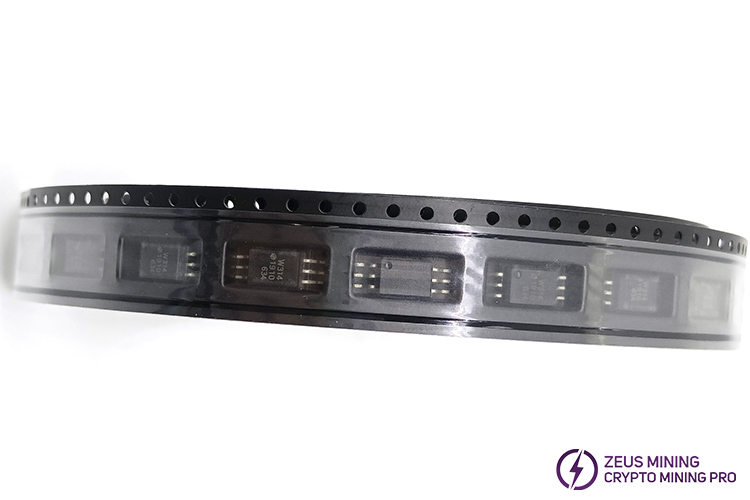

ACPL-W314 package

Product features:

High-speed response

Ultra-high CMR

Bootstrappable supply current

Available in Stretched SO-6 package

Package clearance / creepage at 8 mm (ACPL-W314)

Applications:

Isolated IGBT/Power MOSFET gate drive

AC and brushless DC motor drives

Industrial inverters

Inverter for home appliances

Induction cooker

Switching power supplies (SPSs)
