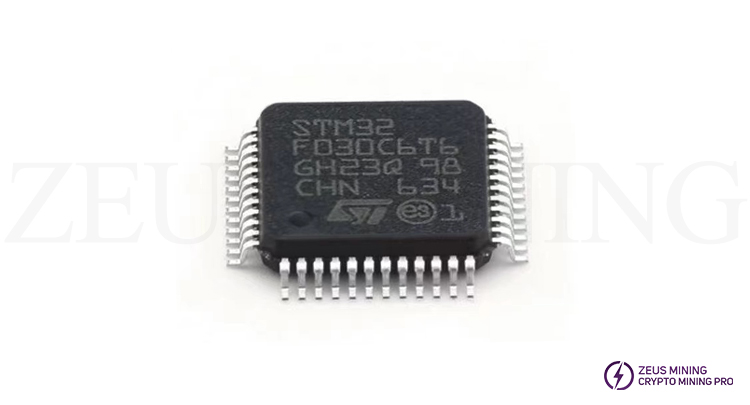

STM32F030C6T6

The STM32F030x microcontrollers integrate a high-performance ARM Cortex™-M0 32-bit RISC core running at 48 MHz, high-speed embedded memory, and a wide range of enhanced peripherals and I/Os. All devices offer standard communication interfaces, a 12-bit ADC, up to six general-purpose 16-bit timers, and an advanced control PWM timer. The STM32F030x microcontrollers operate in the -40 to +85°C temperature range with a supply voltage between 2.4 and 3.6 V.

STM32F030x microcontrollers are suitable for application control and user interface, handheld devices, A/V receivers, and digital TVs, PC peripherals, gaming consoles, e-bikes, consumer appliances, printers, scanners, alarm systems, video walkie-talkies, and more, and HVAC.

Product features:

• Core: ARM® 32-bit Cortex™-M0 CPU up to 48 MHz

• Memories

– 16 to 64 KB of flash memory

– 4 to 8 KB SRAM with hardware parity

• CRC calculation unit

• Reset and power management

– Voltage range: 2.4 V to 3.6 V

– Power-on/power-down reset (POR/PDR)

– Low power modes: sleep, stop, standby

• Clock management

– 4 to 32 MHz crystal oscillator

– 32 kHz oscillator for RTC with calibration

– Internal 8 MHz RC with x6 PLL option

– Internal 40 kHz RC oscillator

• Up to 55 fast I/Os

– All mappable to external interrupt vectors

– Up to 36 I/Os 5 V tolerant

• 5-channel DMA controller

• 1x 12-bit, 1.0 µs ADC (up to 16 channels)

– Conversion range: 0 to 3.6 V

– Separate analog supply from 2.4 to 3.6 V

• Up to 10 timers

– One 16-bit 7-channel advanced control timer for 6-channel PWM output with dead-time generation and emergency stop

– 1 16-bit timer, up to 4 IC/OC, can be used for IR control decoding

– One 16-bit timer with 2 IC/OC, 1 OCN, dead time generation and emergency stop

– Two 16-bit timers, each with IC/OC and OCN, dead time generation, emergency stop, and modulator gate for IR control

– One 16-bit timer with 1 IC/OC

– A 16-bit basic timer

– Standalone and system watchdog timers

– SysTick timer: 24-bit down counter

• Calendar RTC with alarm and periodic wakeup from stop/standby

• Communication Interface

– Up to two I2C interfaces: one supports Fast Mode Plus (1 Mbit/s) with 20 mA current sink

– Up to two USARTs supporting master synchronous SPI and modem control; one with automatic baud rate detection

– Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames

• Serial Wire Debug (SWD)
