Ebit E12 Series Hashboard Test Software

The Ebit E12 E10 E9 Series hash board test software is used together with the Ebit E12 E10 E9 series test fixture, which can quickly detect the specific location of the faulty chip on the hash board so that we can quickly and accurately replace the faulty ASIC chip and ensure the normal operation of the hash board.

Ebit E12 series test fixture software installation and use tutorial

1. Click the "Driver" folder, and install the following two drivers in sequence;

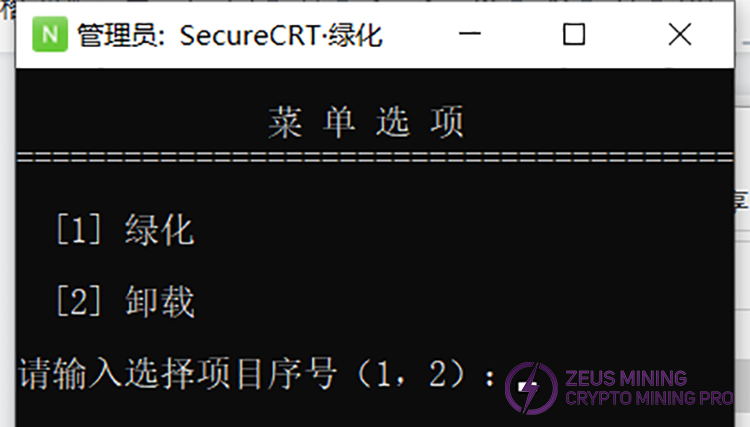

2. Click the program software "SecureCRT" and then click ; when you see the picture below, input the number "1" and then press the "Enter" button.

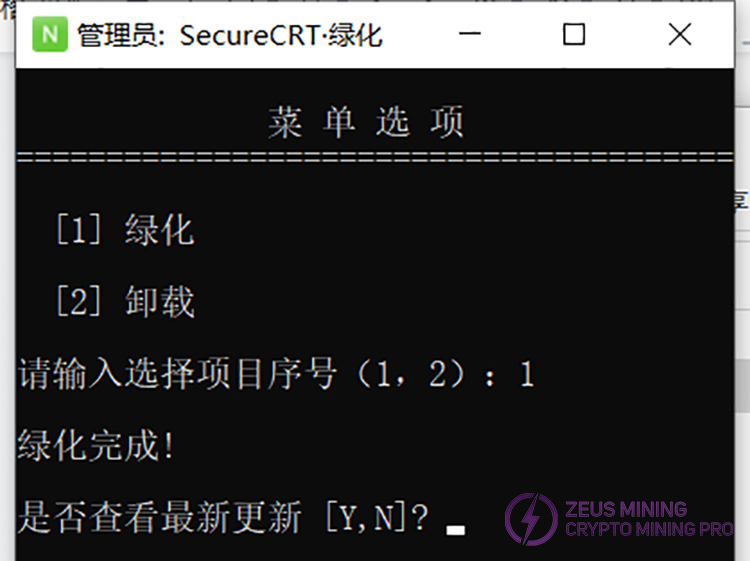

After pressing the "Enter" key, the following page will appear. After closing the dialog box, the icon  will be displayed on the computer desktop, indicating that the test software has been installed successfully.

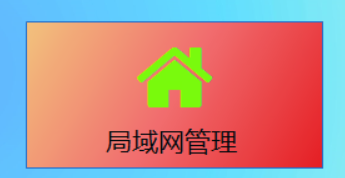

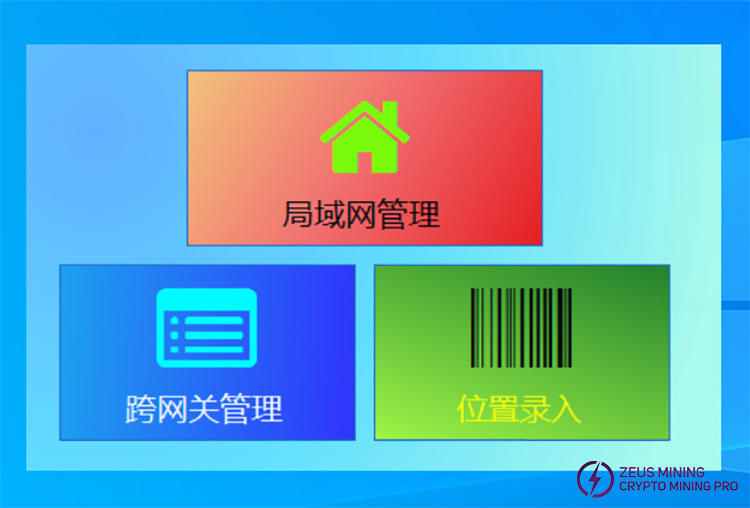

3. Click "EbitMinerMiniV1.0.3.5", and then click ; the following screen will pop up, select the  button.

After selecting the  button, a new screen will pop up, as shown in the figure below. At this time, the screen will display the IP of the control board that can be found at the same time (note: when scanning the IP of the control board, you need to use a network cable to connect the control board and the computer is connected to the same network segment, and the control board is powered on.)

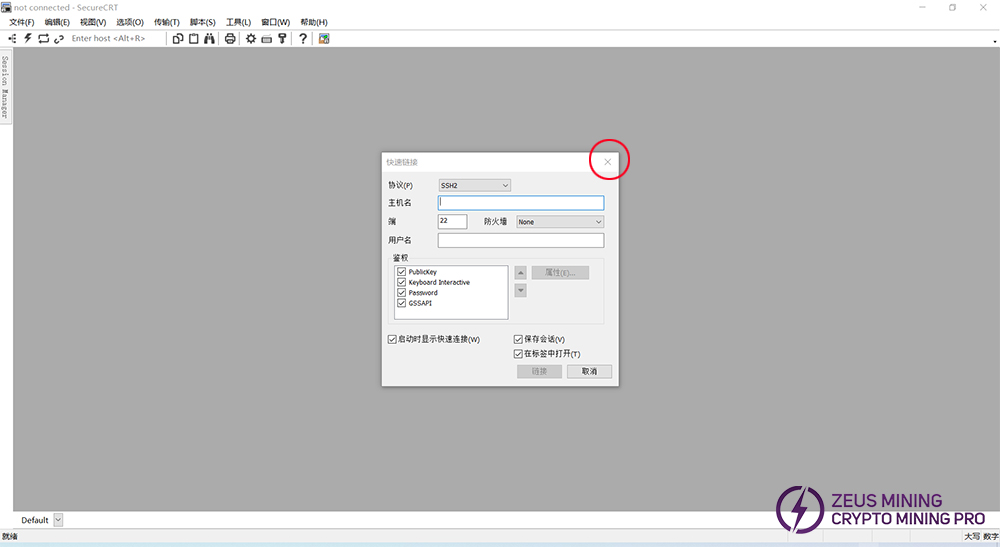

4. Click the desktop icon  to see the following page; close the small dialog box in the middle.

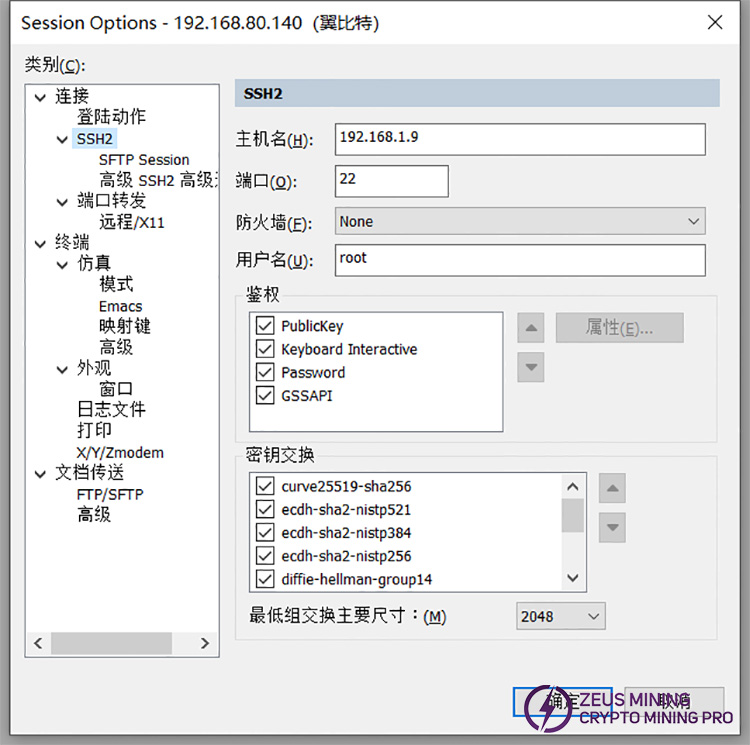

Then click the icon  in the upper left corner of the dialog box, select "192.168.80.140", right-click and select properties, and the following screen will be displayed:

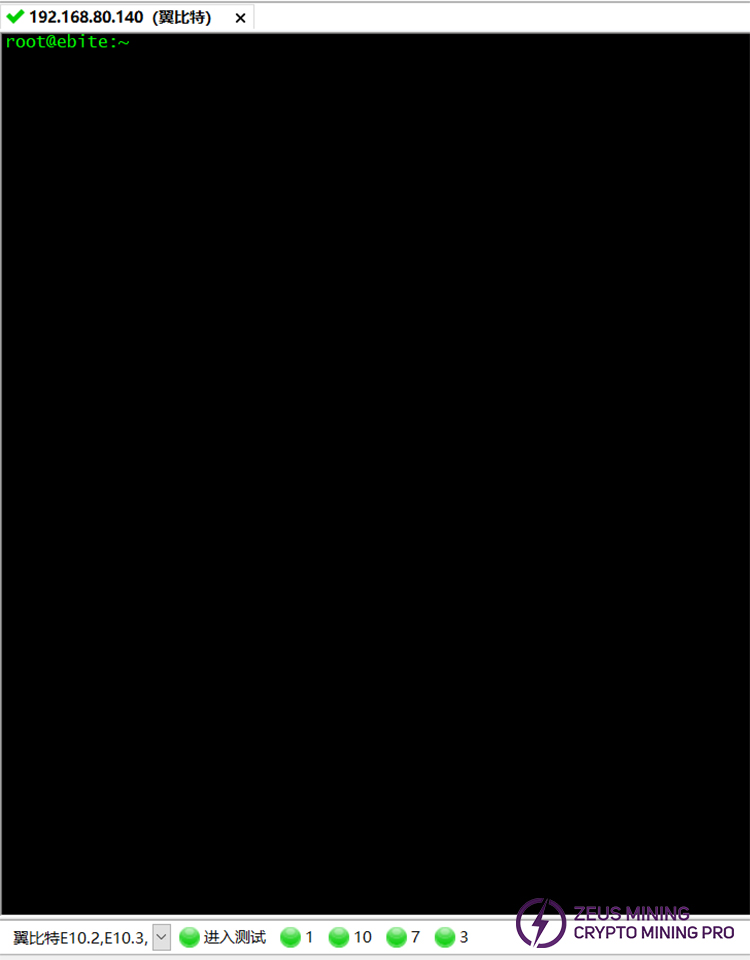

Select SSH2, fill in the IP of the control board as the host name, and click OK. After entering the new page, double-click "192.168.80.140" in the upper right corner, and then you will see the following screen:

Click the icon  to select the hash board model to be tested, and then click  in the lower left corner to enter the test.

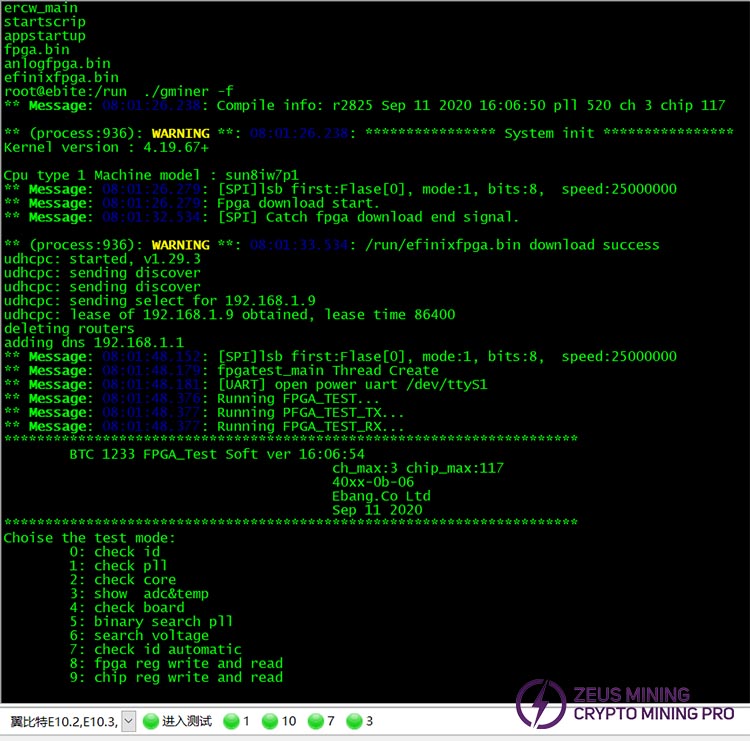

5. After entering the test, you will see the following page:

Click the icon  to select the test model you need according to your needs. After selecting the model, the hash board test will officially start. (Note: When testing the hash board, you need to use a data cable to connect the control board and the hash board first and then power on the hash board).
