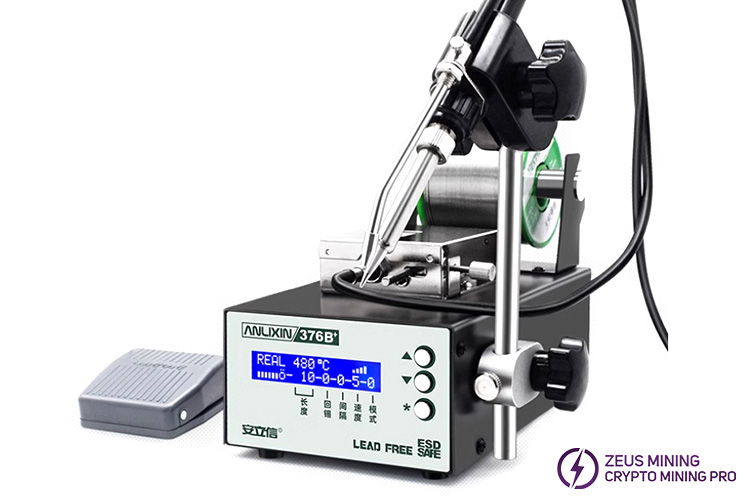

ANLIXIN 376B+ intelligent automatic soldering station adopts a pedal hose to discharge tin, welding heating core, uniform and stable tin discharge, and multiple modes are free to choose from. The automatic tin-discharging device adopts a stepping motor with precise and fast tin-discharging, low heat generation, and stable operation. Equipped with an all-copper core transformer, the power is abundant, and the performance is stable. The copper wire's electrical conductivity and mechanical strength are better than the aluminum wire's, the power is sufficient, and the service life is long. Its heating core adopts a ceramic welding design, which heats up quickly and stably, is stronger, and the production operation is more durable.

Attention: Please select the power cord plug when purchasing this product. We will give you an International universal socket adapter for free according to your choice.

Product parameters:

Console parameters:

Product model: 376B+

Output voltage: AC 24V

Out of tin pipe: hose export

Tin tube length: 90cm

Tin out method: pedal out tin

Is it equipped with a foot switch: Yes

Power (max): 75W

Tin out speed: about 2.7~27mm/s

Tin length: 0~150mm

Tin out interval: 0~2.7s

Re-tin time: 0~0.9s

Applicable tin wire diameter: 0.5, 0.6, 0.8, 1.0, 1.2mm

Host size: L200xW155xH130mm

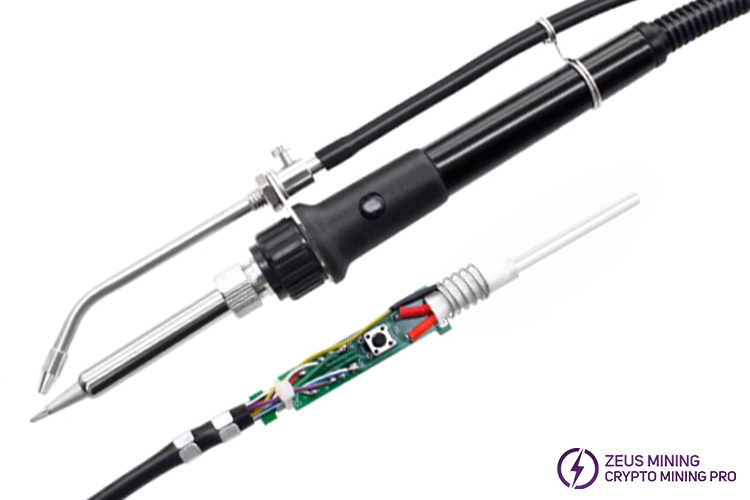

Soldering iron parameters:

Heating core: ceramic welding heating core

Soldering iron head: alloy copper

Grounding impedance: <2Ω

Leakage voltage: <2mV

Soldering iron temperature: 200~480℃

Line length: 1 meter

Product features:

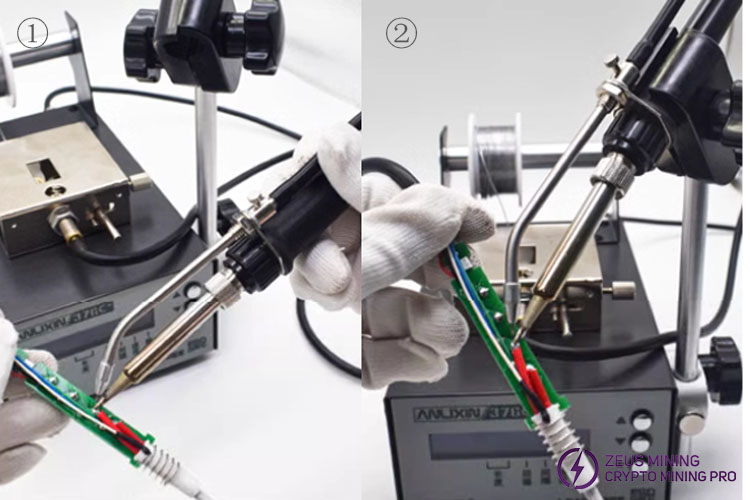

1) Handheld operation, bracket fixed, free switching;

①Handheld operation: The soldering iron and tin feeding tube can be removed to restore traditional usage, and the step of holding the tin wire can be eliminated!

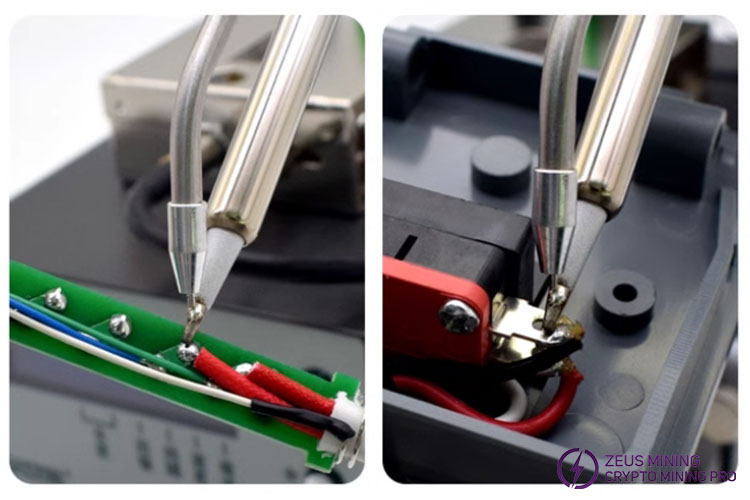

②Bracket fixed: Hold the product with both hands for direct operation, and the soldering point can directly contact the soldering iron tip to improve the work efficiency!

Adjustable constant temperature: 200℃~480℃

Tinning mode: 0~9 gears

2) Welding design, ceramic heating core;

The temperature rises quickly and stably, the welded ceramic heating core is more solid, and the production operation is more durable.

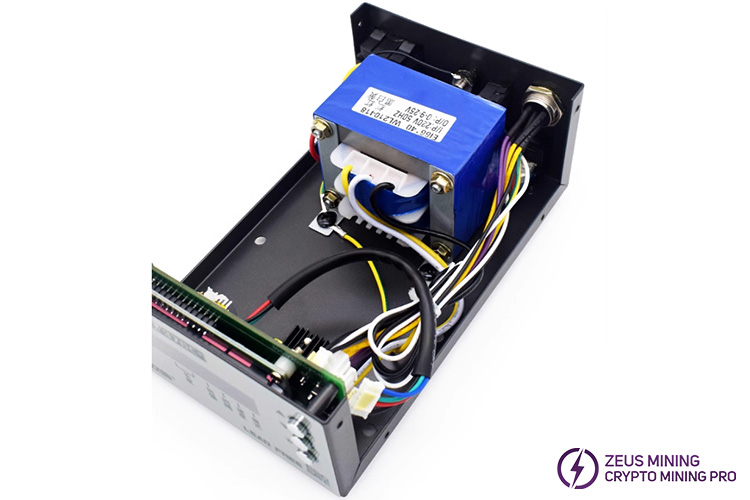

3) Copper core transformer, sufficient power, stable performance;

The conductivity and mechanical strength of copper wire are better than those of aluminum wire, and the power is sufficient to improve the conversion rate and long life.

Application:
