952A 952H 952V SMD rework soldering station
Ratings:
( 664 Reviews )
952A 952H 952V SMD rework soldering station
Power cord plug:
CNUSUKEU
Unit Price: $ 59.9
MOQ: 1    Unit Weight: 5 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:


Product description:

The GORDAK 952 series 2 in 1 soldering station adopts multi-level adjustment and features large air volume, low noise, rapid temperature recovery, and precise temperature control. Lead-free anti-static handle, made of PVC, anti-static, high temperature resistant, and has a long service life.

Attention: Please select the power cord plug when purchasing this product. We will give you an International universal socket adapter for free according to your choice.

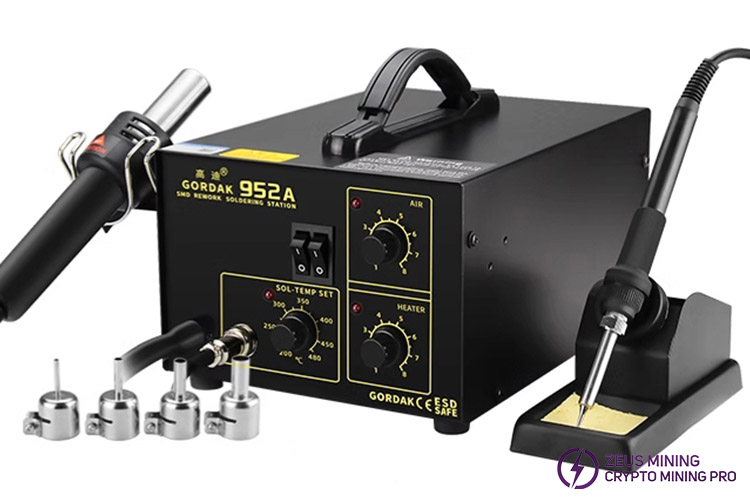

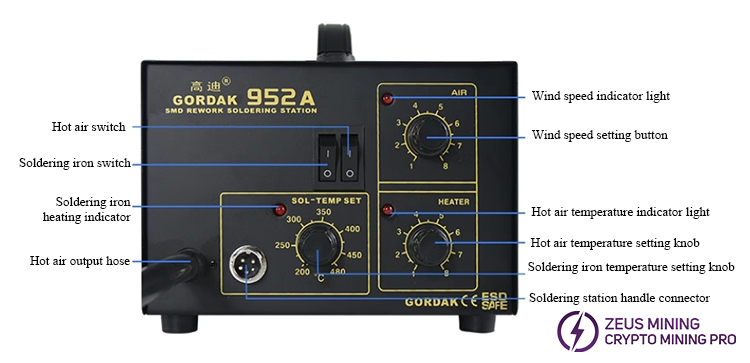

952A soldering station:

952A rework soldering station

Gordak 952 soldering station

Product parameters:

Hot air soldering station

Parameter

Soldering Stations

Parameter

Rated voltage

AC 220V

Power consumption

60W

Maximum power consumption

270W

The output voltage

AC 24V

Air pump mode

Diaphragm type

Temperature control range

200℃-480℃

Display method

Scale display

Welding resistance between welding tip and ground

Below 20

Airflow volume

0.3~4L/min stepless adjustment

Potential between welding tip and ground

Below 20mV

Temperature control range

100℃-450℃

Heating element

Ceramic heating core

Control method

Pulse control

Heating element power

About 60W

Host size

245mm long*184mm wide*135mm high

Accessories

Host*1; Air gun handle*1; Soldering iron handle*1; Bracket*1; Air nozzle*4; Soldering iron stand*1; Sponge*1; Instruction manual*1.

In addition to the above table product list, we also give away the following products:

952A SMD rework soldering station part lists

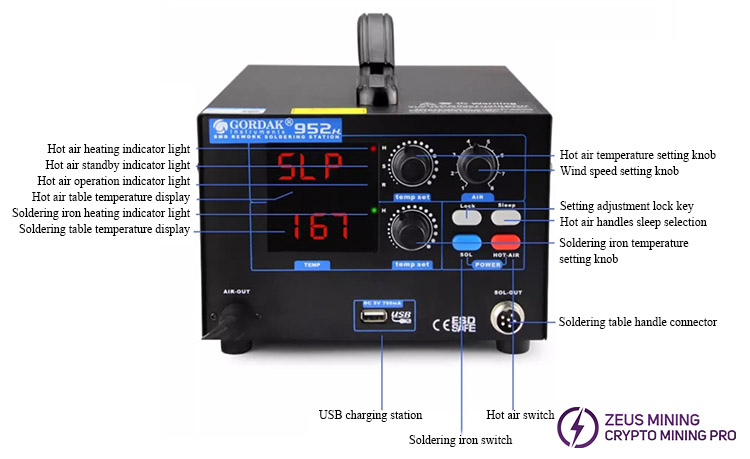

952H soldering station:

GORDAK 952H hot air station

Gordak 952 soldering station

Product parameters:

Hot air table

Parameters

Soldering station

Parameters

Rated voltage

AC220V

Power consumption

60W

Maximum power consumption

650W

Output voltage

AC 24V

Air pump mode

Diaphragm type

Temperature control range

200℃~480℃

Pump power

45W

Solder resistance between soldering tip and ground

2Ω or less

Air flow

120L/min (Max)

Potential between soldering tip and ground

20mV or less

Temperature control range

100℃~500℃

Heating element

Ceramic heating element

Noise

<45db

Heating power

About 60W

External dimensions

Length 245mm*width 184mm*height 135mm

Accessories

Host*1;Air gun handle*1;Soldering iron handle*1;Bracket*1;Air nozzle*4;Soldering iron stand*1;Sponge*1;Instruction manual*1.

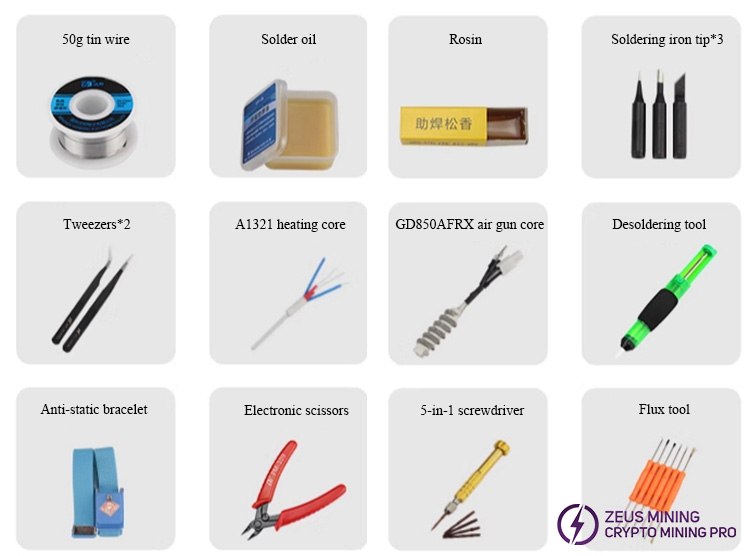

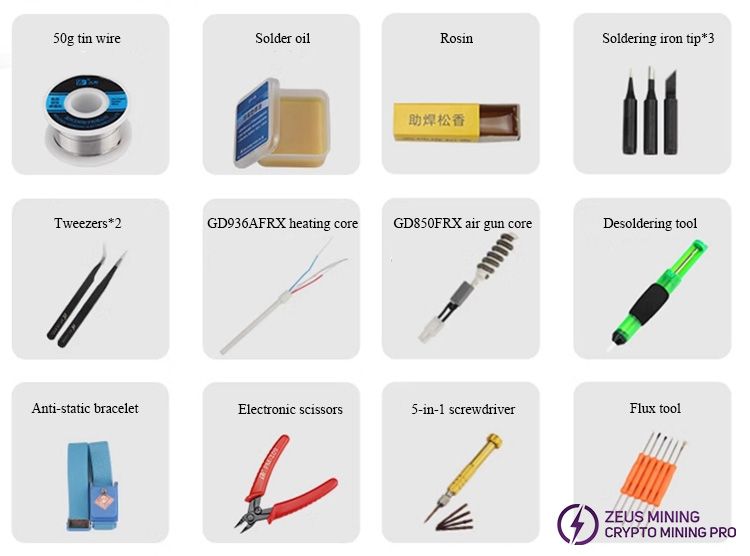

In addition to the above table product list, we also give away the following products:

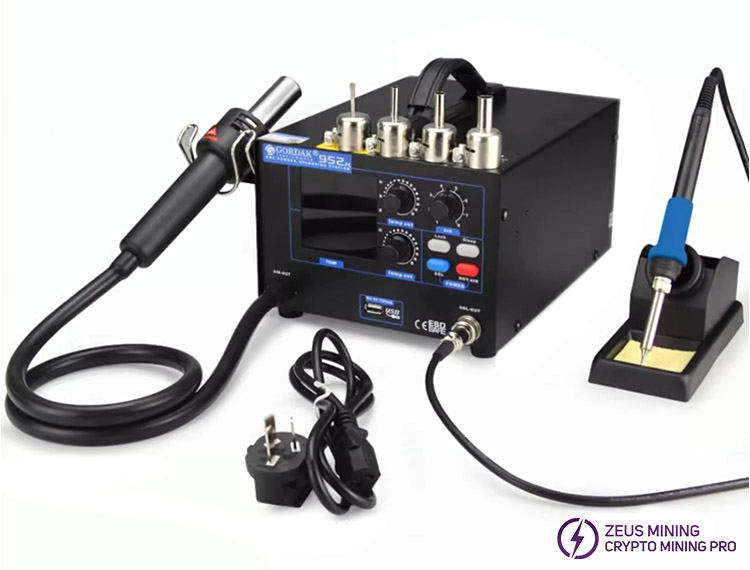

952H double digital display SMD soldering station 2 in 1

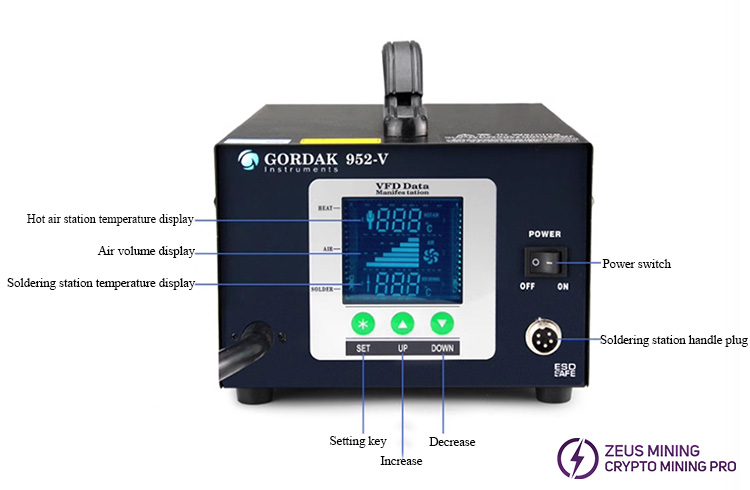

952V soldering station:

952V 2 in 1 digital display hot air SMD rework soldering station

GORDAK 952V intelligent hot air soldering station

Product parameters:

Hot air table

Parameters

Soldering station

Parameters

Rated voltage

AC220V

Power consumption

50W

Power consumption

150W~650W

Output voltage

AC 24V

Air pump mode

Diaphragm type

Temperature control range

200℃~480℃

Pump power

45W

Solder resistance between soldering tip and ground

2Ω or less

Air flow

0.12~1.6Nm3/h

Potential between soldering tip and ground

20mV or less

Temperature control range

100℃~500℃

Heating element

Ceramic heating element

Heating element power

605W

Heating power

About 50W

Total power consumption

About 180W~700W

External dimensions

Length 245mm*width 184mm*height 135mm

Accessories

Host*1;Air gun handle*1;Soldering iron handle*1;Bracket*1;Air nozzle*4;Soldering iron stand*1;Sponge*1;Instruction manual*1.

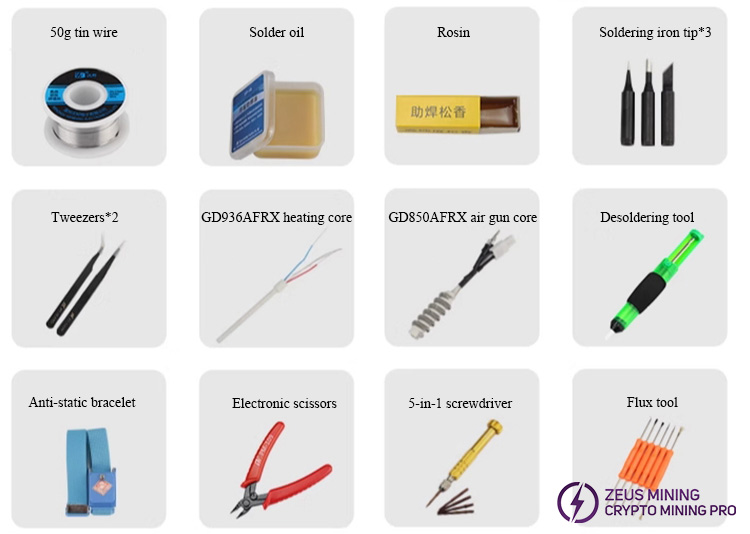

In addition to the above table product list, we also give away the following products:

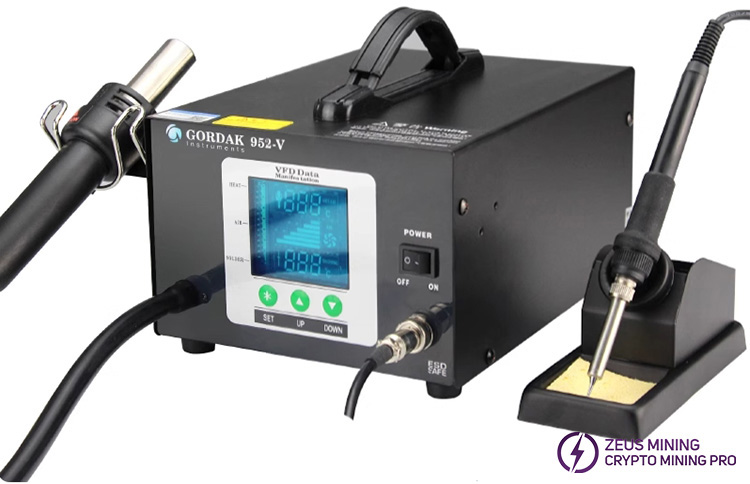

Gordak-952V hot air gun SMD rework station

Product features:

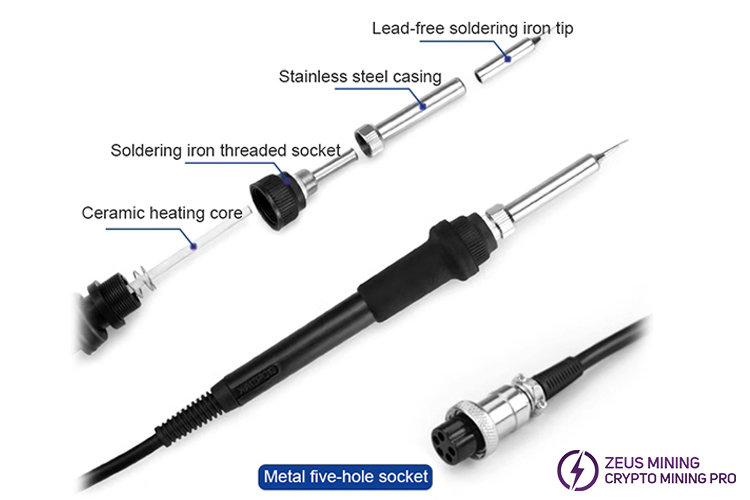

1) Soldering station handle, lead-free, anti-static, PVC material, durable;

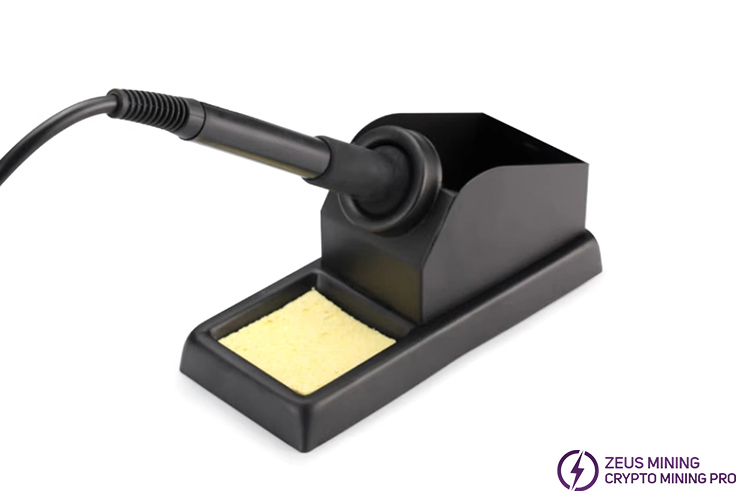

2) Anti-static soldering iron stand, high-temperature resistance, anti-static, high strength, and durable;

3) The hot air pistol diaphragm air pump supplies air with stable air volume and high air pressure. The hot air gun has a delayed automatic cooling system. The air supply will be delayed after the work is completed and the air gun is turned off. When the temperature drops, the air gun will be automatically turned off. The power plug must be unplugged when stopping use.

952a soldering station

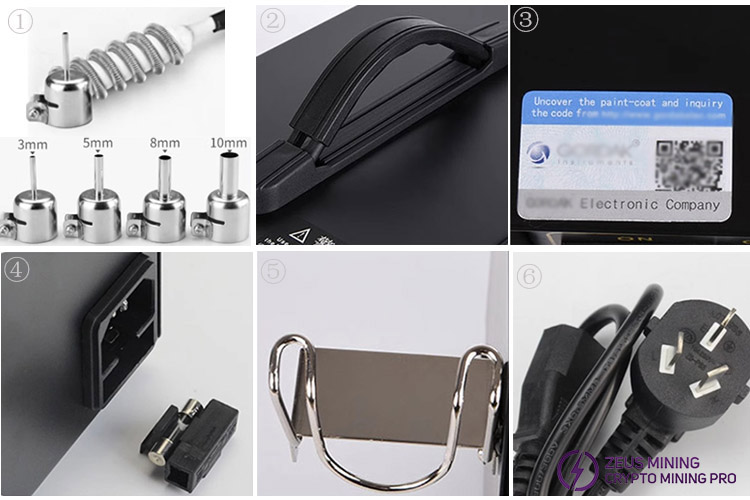

Product details:

1) Nickel-chromium wire heating core, spiral heating, uniform heating, rapid heating, high-temperature resistance, durability, and long life;

2) Suitcase-style handle, strong and stable, easy to carry, saving time and effort, and improving work efficiency;

3) Anti-counterfeiting label, original and authentic, quality guaranteed;

4) External fuse, safety protection, no need to disassemble the machine, more convenient to replace;\

952A SMD soldering rework station 270W

5) Air gun handle rack, convenient for placing the air gun host and can be installed on the left and right sides;

6) Thick power cord, China national standard 3C certification, safer and more durable.

952 hot air 2 in 1 rework soldering

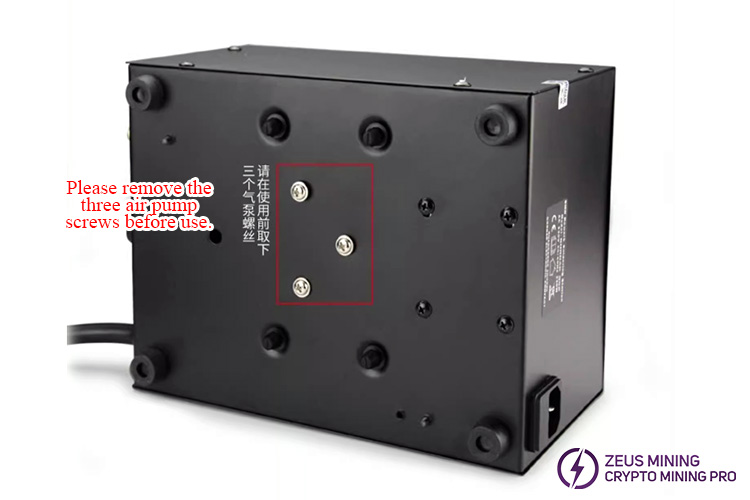

Note:

The three screws that fix the air pump at the bottom of the main unit must be removed when using it. Otherwise, there will be a loud noise, and the air pump inside the machine will be stuck.

952 series soldering station
