MP1471AGJ-Z AGMH
MP1471AGJ-Z AGMH
Ratings:
( 527 Reviews )
MP1471AGJ-Z AGMH
Function: Whatsminer H3 control board step-down converter chip.
Unit Price: $ 0.2
MOQ: 20    Unit Weight: 0.001 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

The MP1471A 3A 16V 500kHz is a high-frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs on the Whatsminer H3 control board. It achieves 3A output current over a wide input supply range with excellent load and line regulation. The MP1471A features synchronous mode operation for higher efficiency over the output current load range. Current mode operation provides a fast transient response and simplifies loop stabilization. Protection features include overcurrent protection and thermal shutdown.

MP1471AGJ-Z converter

Feature:

• Wide operating input range of 4.5V to 16V

• 110mΩ/57mΩ low RDS(ON) internal power MOSFET

• Proprietary switching loss reduction technology

• Efficient synchronous mode operation

• Fixed 500kHz switching frequency

• Internal AAM power-saving mode for high efficiency at light loads

• Internal soft start

• Overcurrent protection and hiccup

• thermal shutdown

• Output adjustable from 0.8V

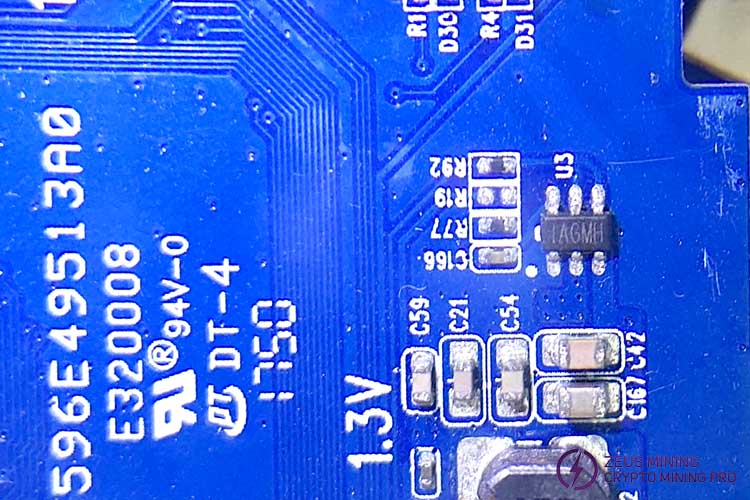

AGMH marking converter

Application:

• Whatsminer H3 control board

• Game host

• Digital set-top boxes

• Flat screen TV and monitor

• General purpose

Related product:

Whatsminer M20 M30 H3 control board
