RS3236-1.8YF3 LB18 1.8V LDO
RS3236-1.8YF3 LB18 1.8V LDO
RS3236-1.8YF3 LB18 1.8V LDORS3236-1.8YF3 LB18 1.8V LDO
Ratings:
( 527 Reviews )
RS3236-1.8YF3 LB18 1.8V LDO
Function: Replace Whatsminer CB4-V10 control board parts.
Unit Price: $ 0.13
MOQ: 20    Unit Weight: 0.001 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

The chip marked LB18 on the silk screen is a signal-level conversion chip located on the Whatsminer CB4-V10 control board, located at the U2 position on the control board. The LB18 chip converts the input voltage of 5V into an output voltage of 1.8V to supply U1 (H6 CPU main control chip) and UD2 (H5TQ2G63GFR-RDC memory chip) bit-marked chips.

RS3236-1.8YF3 1.8V LDO

The RS3236-1.8YF3 is a low-power, low-dropout CMOS LDO that operates from an input voltage of 1.7V to 7.5V and can provide up to 500mA output current. Features include 10nA logic-controlled shutdown mode, foldback current limit, and thermal shutdown protection. It is packaged in SOT23-3 and operates over an ambient temperature range of -40°C to +85°C.

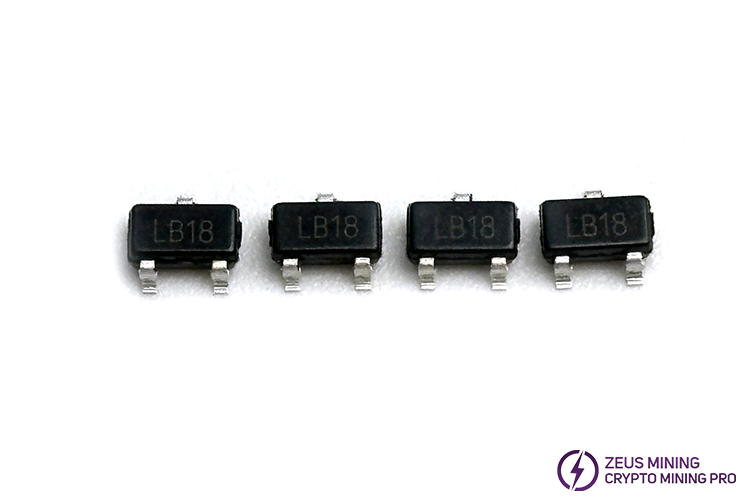

RS3236-1.8YF3 SOT23-3 LDO

Feature:

• Low output noise

• Low dropout voltage

• Thermal overload protection

• Output current limit

• 10nA logic controlled shutdown

• 30μA(TYP) low supply current

• 1.7V to 7.5V input voltage range

• 500mA output current

• -40°C to +85°C operating temperature range

Whatsminer control board 1.8V LDO

Application:

• Mobile phone

• Camera module

• HiFi audio radio transceiver

• PLL/synthesizer, clock

• Moderate current, noise-sensitive applications
