| Unit Price: | $ 126 |

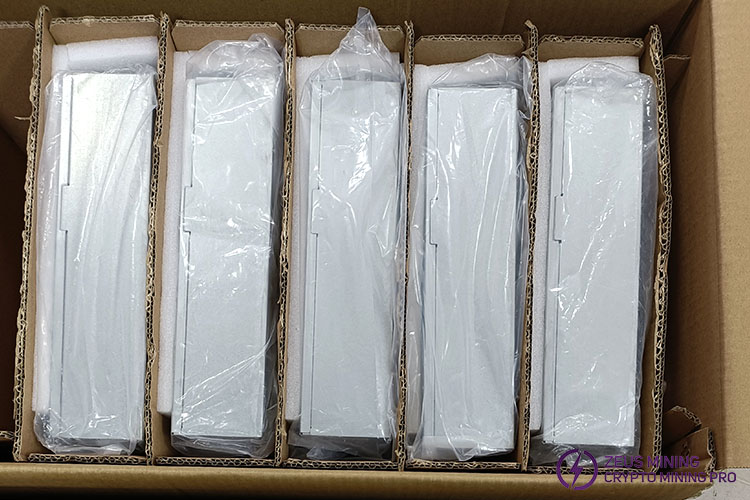

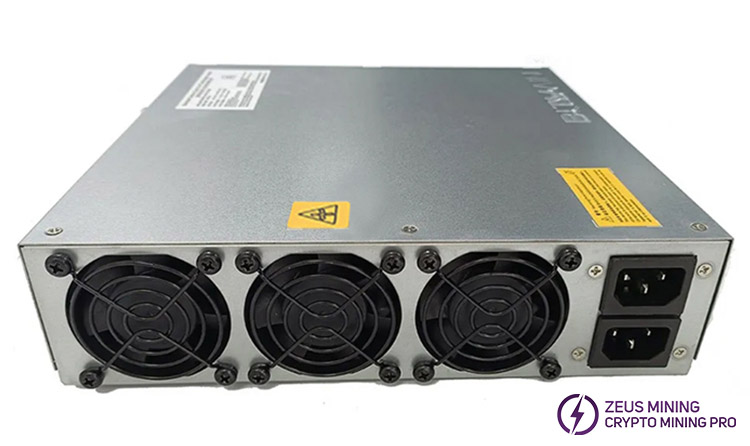

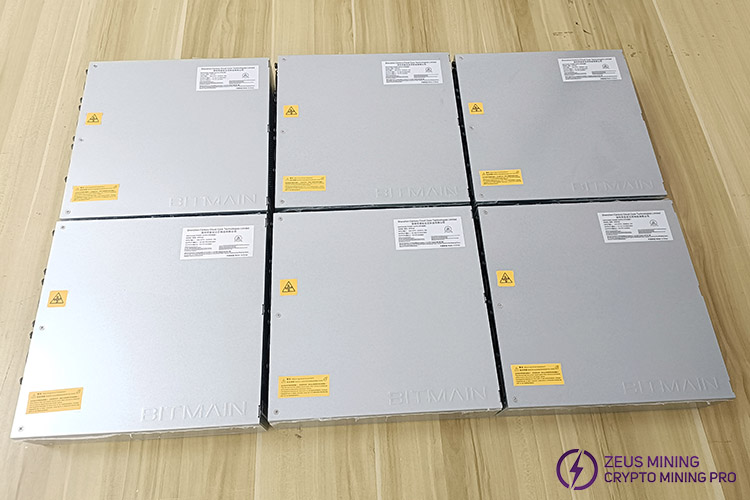

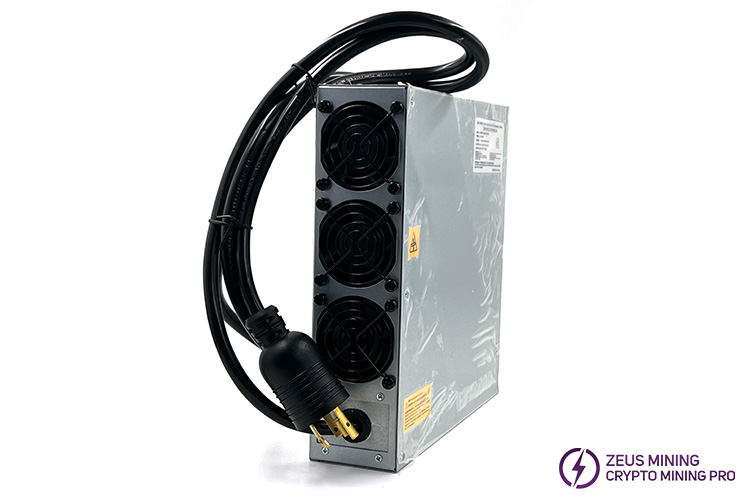

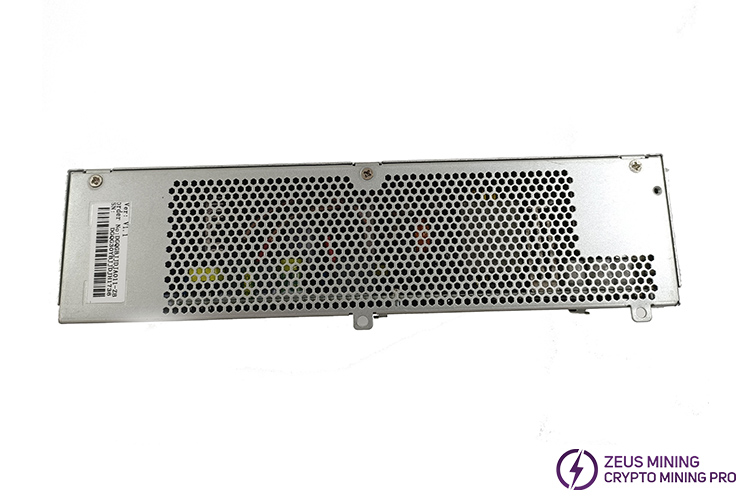

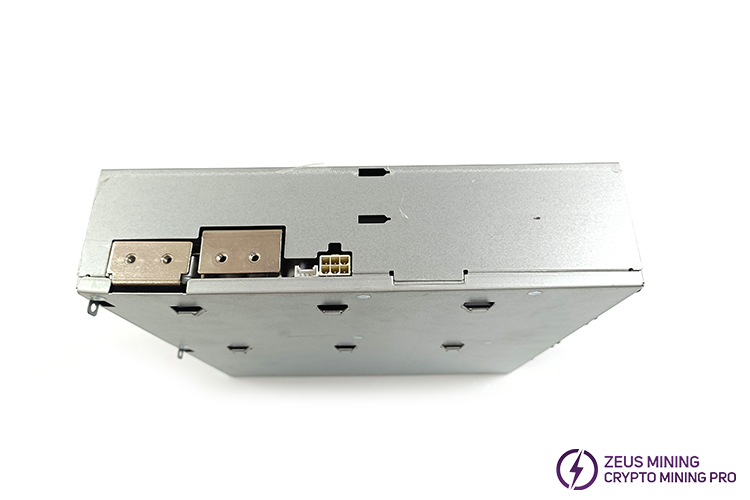

Brand new original Bitmain APW12a 277V power supply for S19J Pro-A SHA256 air-cooled miners.
There are many kinds of APW12 power supplies; please pay attention to the model and version when using them. The main models of the APW12 power supply are APW121215, APW121417, and APW12A. These types of power supplies are not compatible with each other.
Parameter:
Model: APW12A
Input: 240-277V 50/60Hz 16A
Output 1: 12-15V 233A MAX
Output 2: 12V 15A MAX
The main differences are as follows:
1. The APW121215 power supply is suitable for most models of the 19 series, and 1215 means the power supply's output voltage is 12-15V. It contains multiple versions of a b c d e f.
2. APW121417 means the power supply's output voltage is 14-17V. This power supply is currently used in L7 and some S19 miners. Currently, there are two versions, a and b, and version b is compatible with version a.
3. APW12A, this power supply is suitable for 277V input. Countries and regions that use 277V standard voltage, such as the United States, can purchase models of this power supply version, and the latest version is APW1215g.
Reminder: When replacing the power supply, pay attention to the model and version of the original power supply. Avoid replacement errors that render the miner unusable or cause burnout.
Product Specifications:
Out1:
DC Voltage | 12V - 15V |
Rated Current (277V input) | 233A |
Ripple & Noise | <1% |
Line Regulation | <1% |
Load Regulation | <1% |
Setup Time | <2S |
Short Circuit Protection | >10mS |
Detailed Characteristics:
Out2:
DC Voltage | 12.3V |
Rated Current (277V input) | 15A |
Ripple & Noise | <1% |
Voltage Accuracy | 12.2V - 12.4V |
Line Regulation | <1% |
Load Regulation | <1% |
Setup Time | <2S |
Short Circuit Protection | >10mS |
Input:
Voltage Range | 277V AC ± 10% |
Frequency Range | 60Hz |
Power Factor | >0.99 (full load) |
Leakage Current | <1.5mA (220V 50Hz) |
Protection:
Input low-voltage protection value | 170V - 180V AC |
Output Short Circuit | Yes |
Overheat Protection | Yes |
Over-current Output | 291A - 350A (protection value varies under different voltage) |
Environment:
Operating Temperature | -20 - 45℃ |
Operating Humidity | 20% - 90%RH (non-condensing) |
Altitude | < 2000m |
Structure:
Dimensions | 254.6mm * 251.6mm * 63mm |
Net Weight | 3.6kg MAX |
Cooling System | Forced-air cooling |
Noise | 45dBA |
PSU model correspondence table | |
APW3 series | Z11 series, S9 series, T9, L3 series |
APW5 | S9 hydro, S9 series, L3 series, Z11 series |
APW7 | S9 hydro, S9 series, L3 series, Z11 series, Z15 series |
APW8 | S15, T15, S11, D5, DR5 |
APW9 | S17 Pro, T17, S17 |
APW9+ | S17e, S17+, T17e, T17+ |
APW11 | S19Pro+ Hydro, S19Pro Hydro, S19 Hydro, S19XP Hydro, T19 Hydro |
APW111721c | S21 Hydro, S19Pro Hydro |
APW12 | S19, S19j, S19 Pro, S19j Pro, S19i, T19 |
APW121215a | S19, S19j, S19 Pro, S19j Pro, S19a Pro, S19a, S19i, T19, D7, E9, E11, E9 Pro |
APW121215b | S19, S19j, S19 Pro, S19j Pro, S19a Pro, S19a, S19i, T19, D7, E9, E11, E9 Pro |
APW121215c | S19, S19j, S19j+, S19 Pro, S19j Pro, S19a, T19, D7, E9, E11 |
APW121215d | S19, S19 Pro, S19j Pro, S19j Pro+, S19XP |
APW121215e | S19 Pro, S19j Pro, S19XP, S19L |
APW121215f | S19, S19 Pro, S19j Pro, S19j Pro+, S19XP, S19K Pro |
APW121215g | S19 Pro-A |
APW121417a | S19, S19XP, L7, S19JL |
APW121417b | S19, K7, L7, DR7, KA3, KS3, HS3 |
APW12A | S19j Pro-A |
APW171215a | S21, S19j XP, KS5, KS5Pro, AL1, AL1Pro, L9 |
APW171215c | S21XP, S21Pro |
APW11A1216-1a | T21 |
