| Unit Price: | $ 126 |

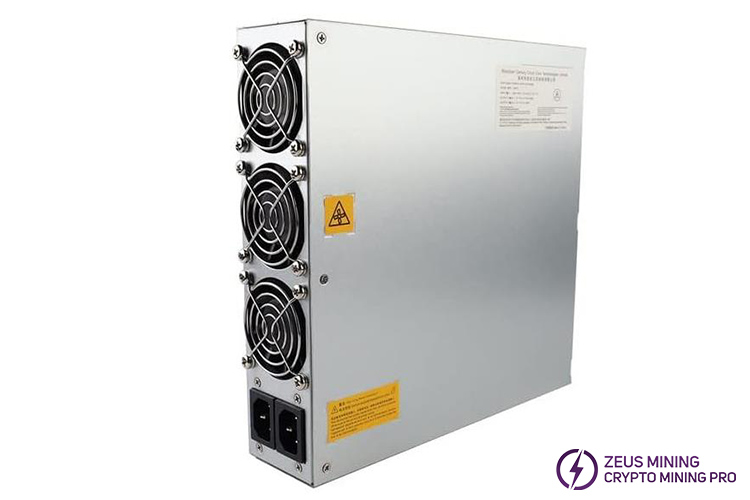

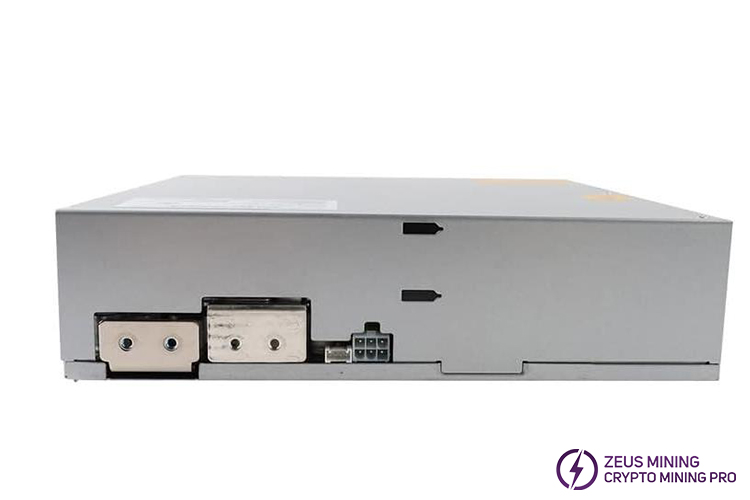

Bitmain Antminer APW12 233A PSU is used to replace the faulty power supply of S19, S19J, S19PRO, S19JPRO, S19I, and T19 miners to ensure the normal operation and income of miners.
APW12 power supply is a widely used power supply at present. Most of the 19 series models use this power supply. The 4-digit number 1215 behind APW12 means the power supply's output voltage is 12-15V. 1417 means the output voltage of the power supply is 14-17V. Currently, the main models of APW12 power supplies are APW121215, APW121417, and APW12A; these types of power supplies are incompatible.
Please confirm the power supply model in detail before purchasing to ensure the received power supply matches the miner.
| APW12 | ||
| OUT1 | DC Voltage | 12V - 15V |
| Rated Current(220 V input) | 233A | |
| Ripple & Noise | <1% | |
| Line Regulation | <1% | |
| Load Regulation | <1% | |
| Setup Time | <2S | |
| Short Circuit Protection | >10mS | |
| OUT2 | DC Voltage | 12.3V |
| Rated Current(220 V input) | 15A | |
| Ripple & Noise | <1% | |
| Voltage Accuracy | 12.2V - 12.4V | |
| Line Regulation | <1% | |
| Load Regulation | <1% | |
| Setup Time | <2S | |
| Short Circuit Protection | >10mS | |
| Input | Voltage Range | 200 - 240V AC |
| Frequency Range | 47 - 63Hz | |
| Power Factor | >0.99(full load) | |
| Leakage Current | <1.5mA（220V 50Hz） | |
| Protection | Low-voltage Input | 80 - 89V AC |
| Output Short Circuit | Yes | |
| Overheat Protection | Yes | |
| Over-current Output | 291A - 350A （protection value varies under different voltage） | |
| Environment | Operating Temperature | -20 - 45℃ |
| Operating Humidity | 20% - 90%RH（non-condensing） | |
| Altitude | < 2000m | |
| Structure | Dimensions | 254.6mm x 251.6mm x 63mm |
| Net Weight | 3.6KG | |
| Cooling System | forced‐air cooling | |
| Noise | 45dBA | |
Parameter:
Model: APW12
Input: (200-240V 50/60Hz 10A) X 2
Output 1: 12-15V 233A MAX
Output 2: 12V 15A MAX
PSU model correspondence table | |
APW3 series | Z11 series, S9 series, T9, L3 series |
APW5 | S9 hydro, S9 series, L3 series, Z11 series |
APW7 | S9 hydro, S9 series, L3 series, Z11 series, Z15 series |
APW8 | S15, T15, S11, D5, DR5 |
APW9 | S17 Pro, T17, S17 |
APW9+ | S17e, S17+, T17e, T17+ |
APW11 | S19Pro+ Hydro, S19Pro Hydro, S19 Hydro, S19XP Hydro, T19 Hydro |
APW111721c | S21 Hydro, S19Pro Hydro |
APW12 | S19, S19j, S19 Pro, S19j Pro, S19i, T19 |
APW121215a | S19, S19j, S19 Pro, S19j Pro, S19a Pro, S19a, S19i, T19, D7, E9, E11, E9 Pro |
APW121215b | S19, S19j, S19 Pro, S19j Pro, S19a Pro, S19a, S19i, T19, D7, E9, E11, E9 Pro |
APW121215c | S19, S19j, S19j+, S19 Pro, S19j Pro, S19a, T19, D7, E9, E11 |
APW121215d | S19, S19 Pro, S19j Pro, S19j Pro+, S19XP |
APW121215e | S19 Pro, S19j Pro, S19XP, S19L |
APW121215f | S19, S19 Pro, S19j Pro, S19j Pro+, S19XP, S19K Pro |
APW121215g | S19 Pro-A |
APW121417a | S19, S19XP, L7, S19JL |
APW121417b | S19, K7, L7, DR7, KA3, KS3, HS3 |
APW12A | S19j Pro-A |
APW171215a | S21, S19j XP, KS5, KS5Pro, AL1, AL1Pro, L9 |
APW171215c | S21XP, S21Pro |
APW11A1216-1a | T21 |
ZeusMining | |
Please click "Installation tutorial for Bitmain Antminer APW12 233A power supply" to view the product replacement details.
Related product:
This is the most basic power supply for APW12 PSU, suitable for Antminers such as S19, S19J, S19PRO, and so on. The overall packaging is exquisite and beautiful, the workmanship is fine, the product operates stably, and has ultra-long standby operation. It is the best replacement for the Antminer 19 series power supply.
Advantage:
The power supply is small in size and attached to the miner's body, saving space;
Strong compatibility, suitable for various Antminer models;
Quality assurance, after-sales service, and thoughtful guidance;
High safety performance, excellent performance, and stable operation.
Shortcoming:
Due to the complexity of the model, it is necessary to determine the miner model and original power supply version to ensure maximum mining benefits.
