TMI3252 TP29RA TP29TA
TMI3252 TP29RA TP29TA
Ratings:
( 527 Reviews )
TMI3252 TP29RA TP29TA
Unit Price: $ 0.3
MOQ: 20    Unit Weight: 0.001 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

TMI3252 step-down DC-DC converter

The TMI3252 is a high-efficiency 600kHz, constant on-time (COT) control mode synchronous step-down DC-DC converter capable of delivering up to 2A. It integrates main and synchronous switches with low R DS(ON) to minimize conduction losses. The 600kHz switching frequency enables low output voltage ripple and small external inductor and capacitor sizes. It features a COT architecture for fast transient response in high-voltage buck applications. It is housed in a 6-pin SOT23-6 ROHS-compliant package.

It is located on the Whatsminer CB2-V16 control board. The silk screen mark is TP2***, such as TP29TA, TP29RA, etc.

TMI3252 converter chip

TP29RA 18V 2A converter package

Product features:

. 140mΩ/70mΩ low RDS(ON) internal FET

. High-efficiency synchronous mode operation

. Wide input range: 4.5V to 18V

. Output voltage: 0.8V

. 600kHz switching frequency

. Up to 2A output current

. COT control for fast transient response

. Power saving mode at light load

. Integrated Internal Compensation

. Stable with low ESR ceramic output capacitors

. Overcurrent protection with hiccup mode

. Thermal shutdown

. Inrush current limiting and soft-start

. Built-in input overvoltage protection

. Available in the SOT23-6 package

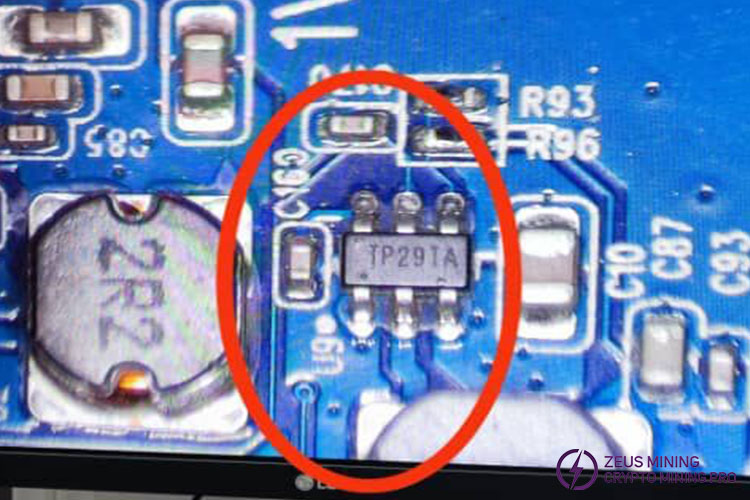

TP29TA marking chip

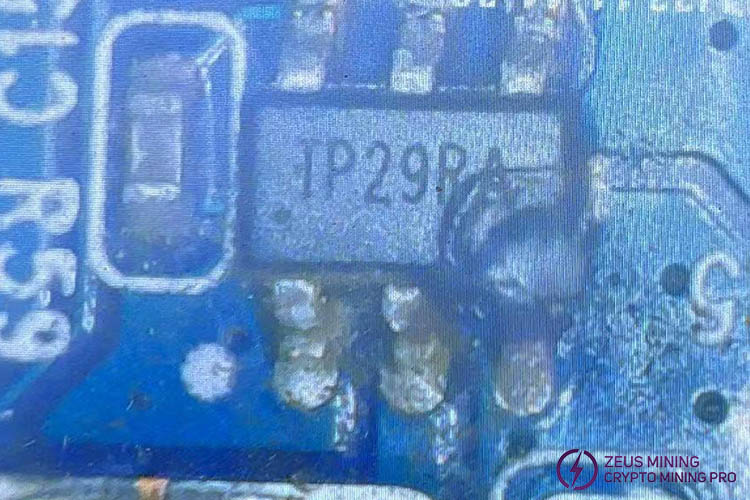

TP29RA 18V 2A converter
