| Unit Price: | $ 3.38 |
WhatsApp : +8618623251355

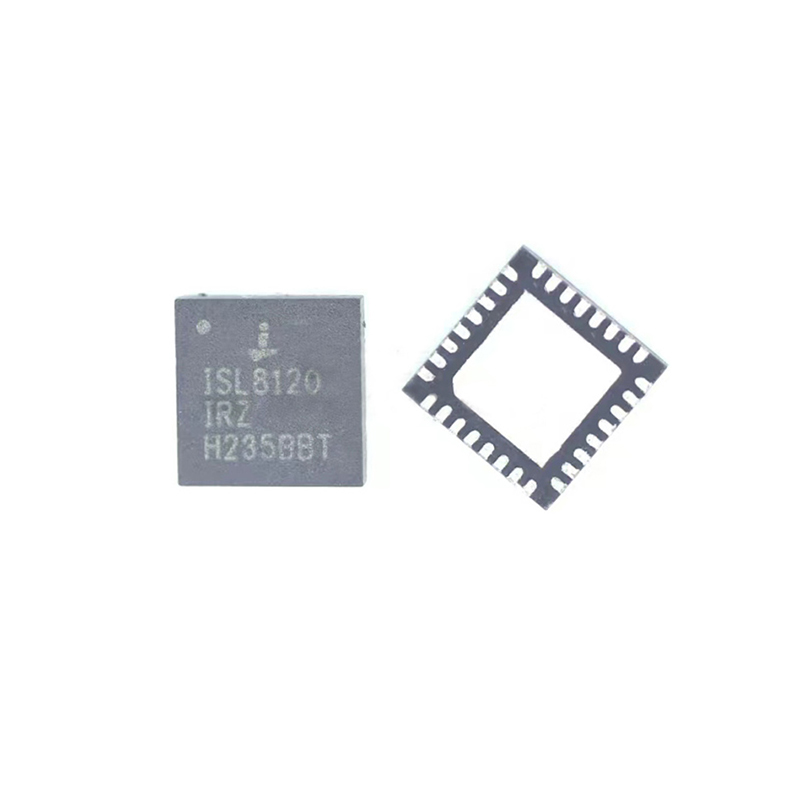

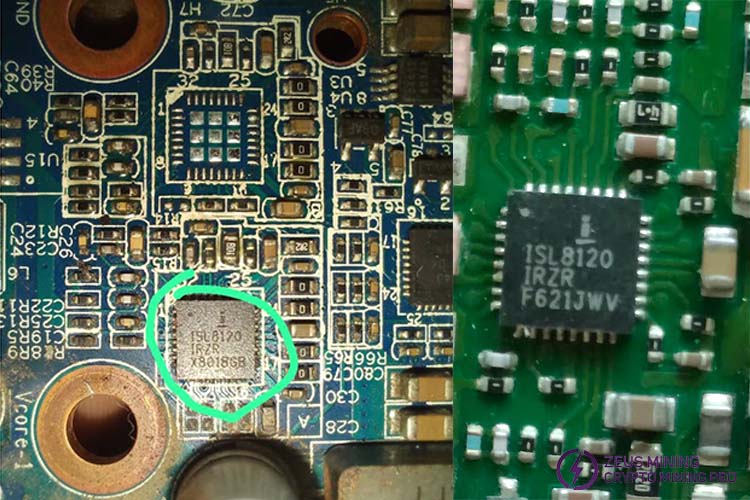

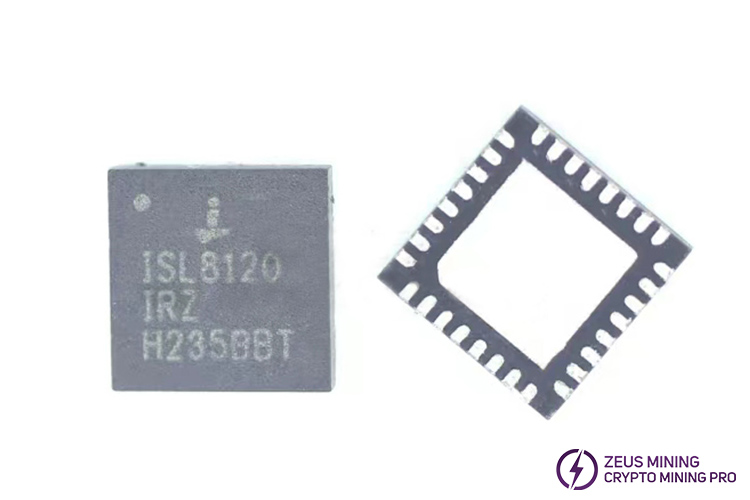

Telegram : @zeusmining_presalesThe ISL8120IRZ integrates two voltage-mode leading-edge modulation controls and an input feed-forward synchronous buck PWM controller to control dual independent or two-phase single-output regulators. It also integrates current sharing control to enable parallel operation of power modules, thus providing high system flexibility. The ISL8120 internal oscillator is adjustable from 150kHz to 1.5MHz and can be synchronized to an external clock signal for frequency synchronization and parallel phase applications.
Feature:
• Wide VIN Operating Range: 3V to 22V
- VCC Operation from 3V to 5.60V
• Frequency synchronization
• Digital soft-start with pre-charged output start-up.
• Dual independent channels enable input with precision voltage supervisor and voltage feed-forward
- Programmable input voltage POR with hysteresis via resistor divider at EN input
• Abundant circuit protection functions: output overvoltage, undervoltage, overcurrent protection, overtemperature, and power-on pre-reset overvoltage protection
Application:
• Datacom/Telecom and POL power
• Parallel connection of power modules
• Wide input voltage range and narrow input voltage range buck regulators
• DDR I and II applications
• High current density power supply
• Multiple output VRM and VRD
