IT6633E-P
IT6633E-P
Ratings:
( 527 Reviews )
IT6633E-P
Unit Price: $ 1.7
MOQ: 20    Unit Weight: 0.001 KG    Availability: In Stock
- +
+ Add to cart
If you dont know how to place an order please check our FAQs

Tech support and pre-sale:
WhatsApp : +8618623251355
Telegram : @zeusmining_presales
Download the BOM for one-stop delivery
Product description:

The IT6633 is a three-to-one HDMI v.1.3 active switch that supports signaling rates up to 2.25Gbps and the new Dark Mode. It operates in software mode, allowing the system to control it via the two-wire serial interface PCSCL/PCSDA. As an active switch, IT6633 can equalize the incoming TMDS data with optimal quality regardless of the quality of the input signal.

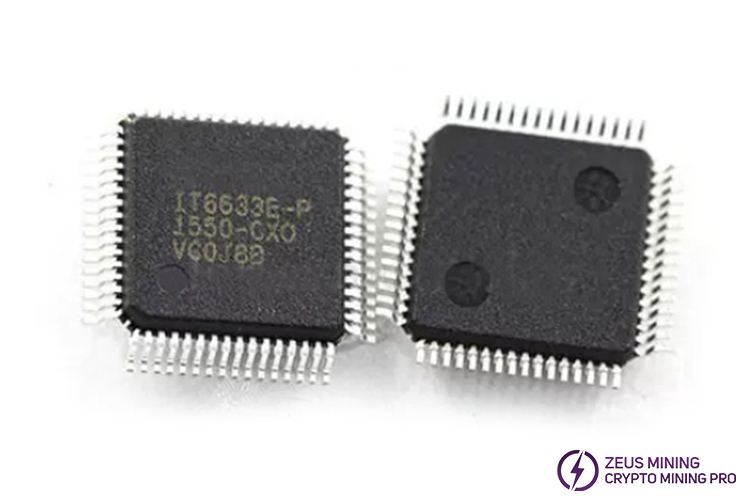

IT6633E-P for sale

Feature:

• HDMI active switches, providing better performance than traditional passive switches

• Serial data rates up to 2.25Gbps

• Embedded EDID RAM saves external EDID ROM costs

• Embedded HDP resistor

• Integrated HPD switch

• Active port detection by monitoring PWR5V input and TMDS input clock

• Human body model ESD protection up to ±8kV on all TMDS differential input pins

• Disconnectable input terminals with automatic impedance calibration

• Adaptive input equalization supports both long and short cables

• Software mode operation provides flexibility

• Programmable TMDS output current levels

• High impedance TMDS output when disabled

• Optional backend receiver terminal detection for automatic power down

• 64-pin LQFP package

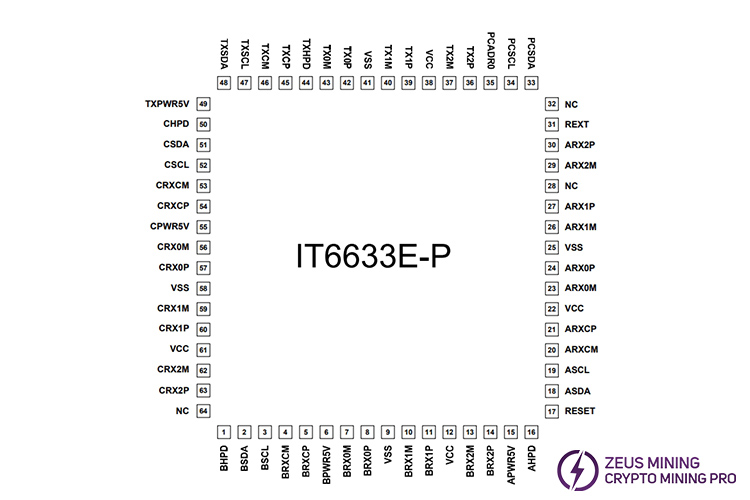

IT6633E-P pin diagram
