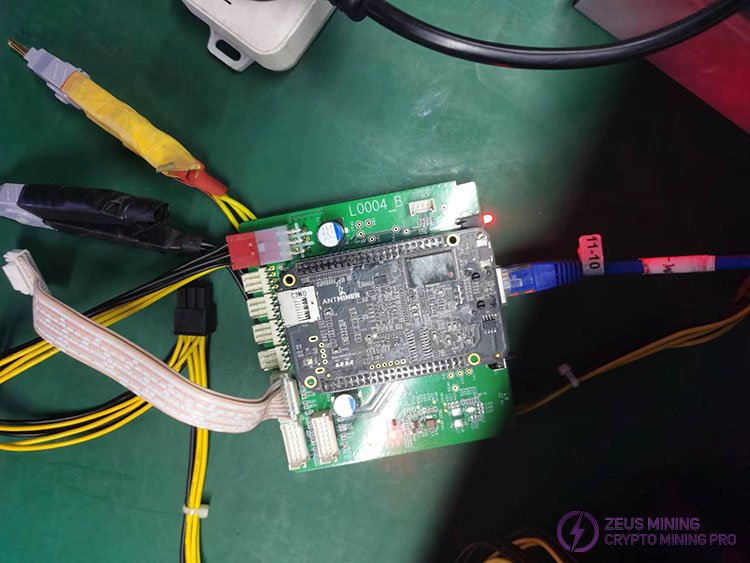

Telegram : @zeusmining_presalesThis is a test file for Bluestar L1 hash board fault detection. It is suitable for use with the Bluestar L1 test fixture to detect ASIC chip faults in L1 miners quickly. By copying the test file to the TF card, then inserting it into the TF card slot of the test fixture, and connecting the L1 hash board, we can view the hash board fault location on the computer after power-on testing.
In addition, if you purchase the Bluestar L1 hash board test file, we will give you an additional L1 hash board repair guide to help maintenance technicians quickly repair it.
Department repair manual display:
The working structure of the hash board:

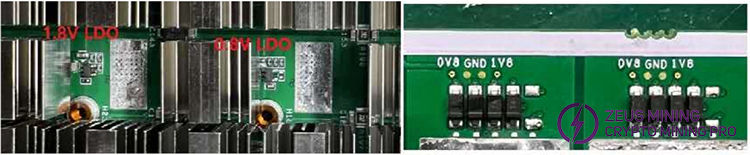

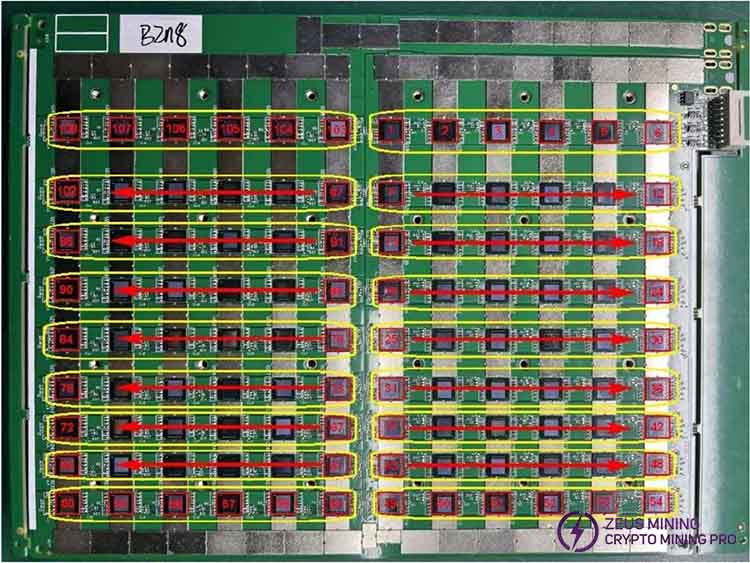

The hash board (No. L0010-B) consists of 108 chips, divided into 18 groups (domains); each group consists of 6 ICs; the chip working voltage is 0.68V; the 18th, 17th, 16th, and 15th groups (4 groups in total) have 18V output from the boost circuit to power the LDO to output 1.8V. The 14th to 1st groups are provided with 1.8V by VDD through LDO; each time you step back, the domain voltage decreases by 0.68V. All 0.8V is provided by the 1.8V of this domain through LD0 output, as shown in the following figure:
