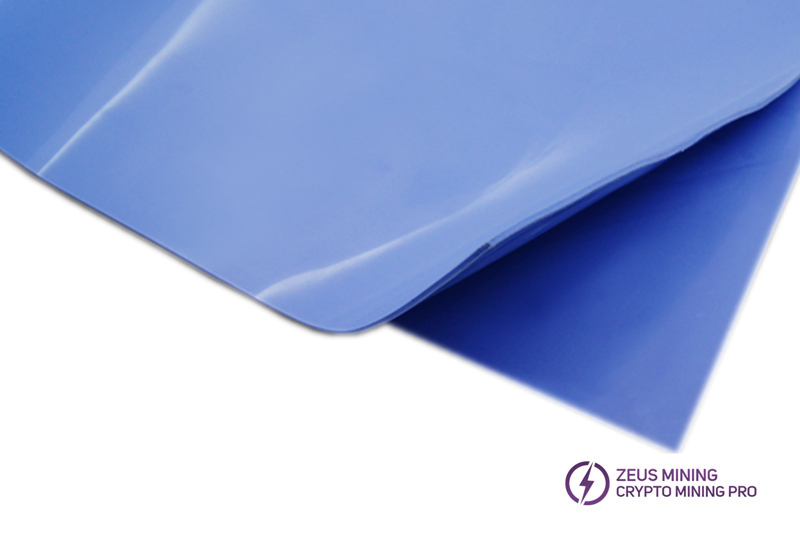

Thermally conductive silicone sheet

Thermally conductive silicone sheet

Heat-dissipating silicone gasket, high thermal conductivity, insulation and shockproof, high thermal conductivity and non-conductivity, suitable for graphics cards, video memory, north-south bridge chips and integrated circuits, etc. Thermal conductivity 4.0W/M.K.

Feature:

1. Thermal insulation: good thermal conductivity, heat dissipation and insulation;

2. Soft shockproof: soft and compressible, good shockproof performance;

3. Self-adhesive: peelable, self-adhesive, easy to fix;

4. Good plasticity: Silicone film is plastic and can be cut;

5. Easy to operate: heat dissipation with one stick, convenient and simple.

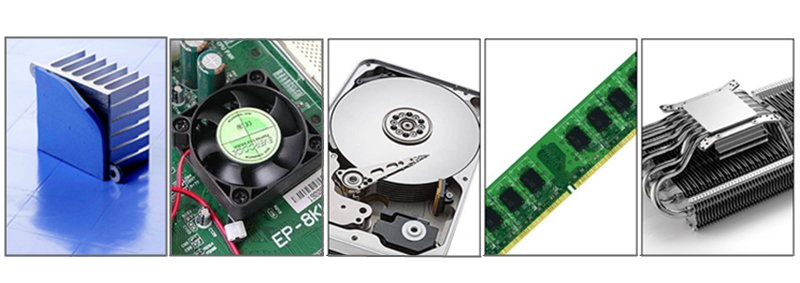

Application areas:

ASIC chip heat dissipation (customized mode)

Computer chip south bridge, north bridge, heat dissipation.

CPU, GPU cooling, memory stick, hard drive, chipset and particle cooling.

Instructions:

1. First, clean up the surface of the sticky or affixed object to remove dust and oil stains, etc.;

2. First tear off the protective film on one side (do not tear off the protective film on both sides at the same time) to reduce the number and area of direct contact to avoid damage to the product's viscosity and thermal conductivity;

3. Stick the side with the protective film removed to the top of the radiator. After installation, apply a certain pressure to the radiator to ensure that the thermal pad is fixed, and then remove the other side of the protective film.
