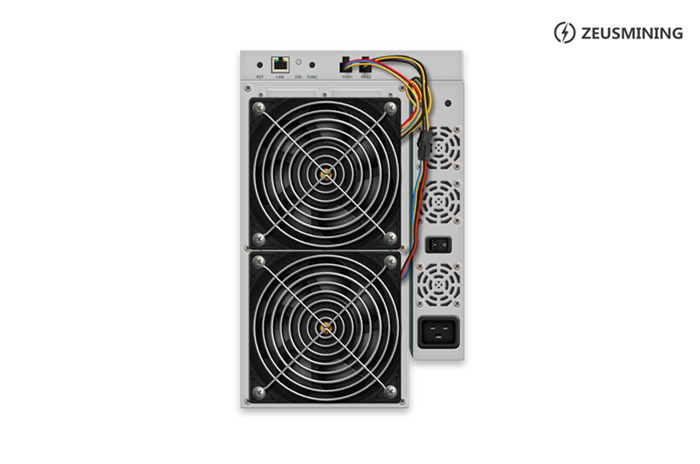

​Avalon A1066pro

The Avalon A1066Pro has solid materials and an excellent energy consumption ratio. The total computing power is 55T, and the power consumption is 3300W/h (-5%～+5%).The aluminum alloy profile has a one-piece body structure, which is simple and regular, saving space to the greatest extent. It is equipped with a power plug in the box, which is convenient to plug and dig. Three hash rate boards are tightly wrapped by heat sinks and reinforced card slots embedded in the chassis to ensure that the machine is more robust and reliable. The removable power board design makes maintenance work more convenient and flexible. The heat sink is glued tightly with real materials on both sides, and the front is reinforced with 18 spring screws to enhance heat transfer. The thermal grease covers evenly and comprehensively, which is beneficial to the heat conduction of the chip.

One of the selling points of A1066Pro is the Kanzhi K210 AI chip main control module independently developed by Avalon. This module is implanted with multiple encryption algorithms and has a native anti-tampering mechanism, which can effectively prevent the loss of computing power and theft. The temperature-sensing accessories on the fan are directly connected to the main control board to monitor the ambient temperature. The main control board issues fan speed control commands based on the ambient temperature and the core temperature of the computing power chip. The higher the temperature, the faster the fan speed, and vice versa. The all-in-one design of integrated power supply facilitates mine operation and maintenance management, and the cluster control function improves the efficiency of large-scale mine management.

Product name: Avalon A1066pro

Rated computing capacity: 55TH/s (0 ~ +3%)

Wall power consumption: 3300W/h (-5% ~ +8%)

Energy consumption ratio at different temperatures: 60J/T ± 5% at 25℃; 62J/T ± 5% at 35℃

Fan: 12038 * 4 fan

Working environment: -5℃ ~ 35℃

Indoor noise: ≤75db

Geometric size: 331mm (length) * 195mm (width) * 292mm (height)

Net weight: 12.8kg

Note: The standard 3300W power supply is adjustable
