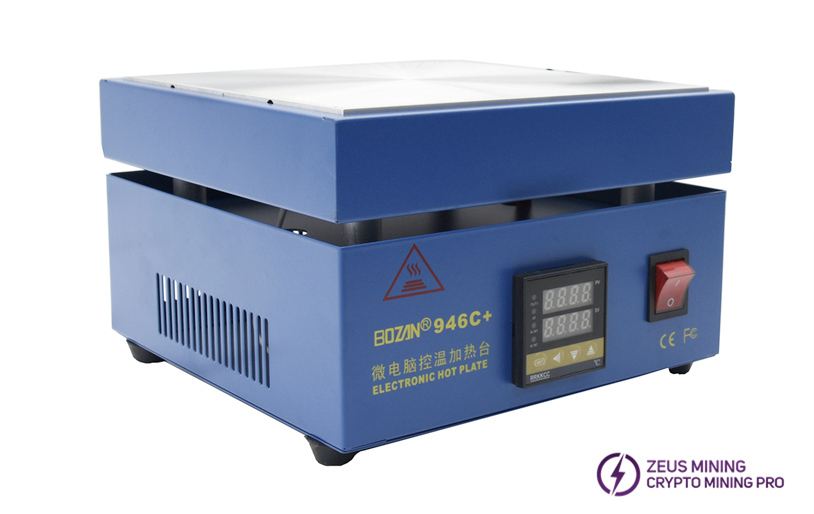

BOZAN 946C+ electronic hot plate preheat station

Electronic preheat station BOZAN 946C+

BOZAN 946C+ is small in size, simple in operation and convenient to use. Its heating plate is made of high-quality aluminum alloy, which has the advantages of fast heating, high efficiency and uniform temperature. Its flat-plate desoldering heating plate uses high-performance micro-processing chips, precise temperature control, intuitive display, strong practicability and can automatically determine the failure of the heating part of the machine. It is usually used to preheat the aluminum-based hash board of the Antminer, Avalominer, Iceriver, and Whatsminer series to facilitate the repair and replacement of electronic components on the hash board.

Attention: Please select the power cord plug when purchasing this product. We will give you an International universal socket adapter for free according to your choice.

Product related tutorial articles: How to use the constant temperature heating platform?

Parameters:

Model: BOZAN 946C+

Power supply voltage: 220V

Heating body power: 850W

Temperature control range: 0～400℃

Temperature display: four digits

Display mode: high-definition LCD screen digital display

Constant temperature stability: ±1℃

Host weight: 2.74KG

Package weight: 3.26KG

Heating area: 200mmx200mm

Dimensions: 220x220x145mm

Heating material: high-quality aluminum alloy plate

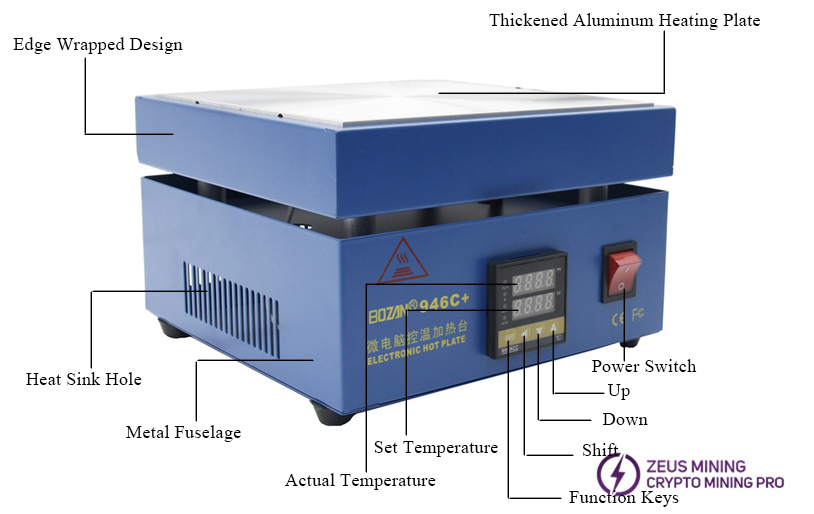

Functional description:

BOZAN 946C+ Application:

1. Component heating operation.

2. SMD remanufacturing operation (applicable temperature for dismantling and welding: 220℃~260℃).

3. PC board disassembly and welding operations.

4. The packaging box is made of plastic packaging hot film.

5. Widely used in biology, electronics industry, medicine, research institute work, etc.

Operating instructions:

1. The working platform where the heating table is placed must be flat and the material must be heat-resistant.

2. During the working process, the surface of the board and its surroundings are very hot. Be careful to avoid burns and scalds!

3. Pay attention to the safety of the heated object. Excessive temperature may damage the heating components.

4. It is forbidden to use heating plates near combustible and combustible objects.

5. To move or touch the machine, remember to cut off the power supply and wait for the heating plate to completely cool to room temperature.

6. This machine is a high-temperature electric heating product. Remember to cut off the power supply when the machine is not used to avoid danger and accidents.

7. To extend the life of the heating element and the machine, it is forbidden to use the machine for a long time at high temperatures (above 300℃). Generally, the continuous working time of the machine should not exceed eight hours.

8. It is necessary to ensure that the ground wire of the machine is well grounded.

9. Do not let the air flow directly blow on the board surface, it will affect the heater's heating.
