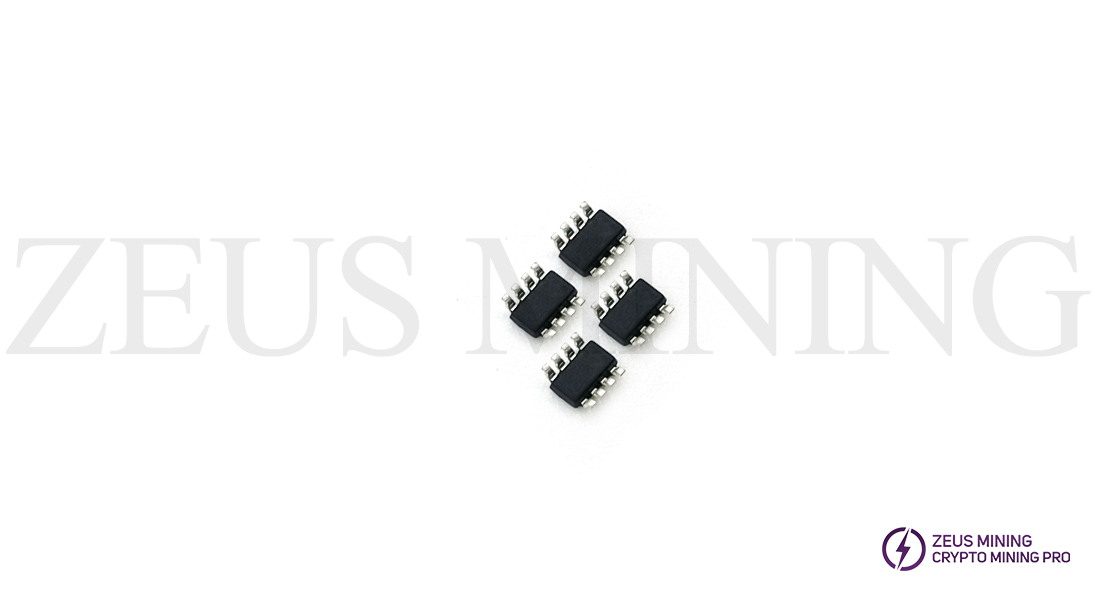

MP2319 High-Efficiency Synchronous Step-Down Converter The MP2319 is a fully-integrated, high-frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. Achieves 3A of continuous output current with excellent load and line regulation over a wide input range. Synchronous mode operation for higher efficiency over the output current load range. Constant-on-time control operation provides a very fast transient response, easy loop design, and very tight output regulation. Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), over-voltage protection (OVP), and thermal shutdown. The MP2319 requires a minimal number of readily available, standard, external components and is available in a space-saving, 8-pin, TSOT23 package.
Features:

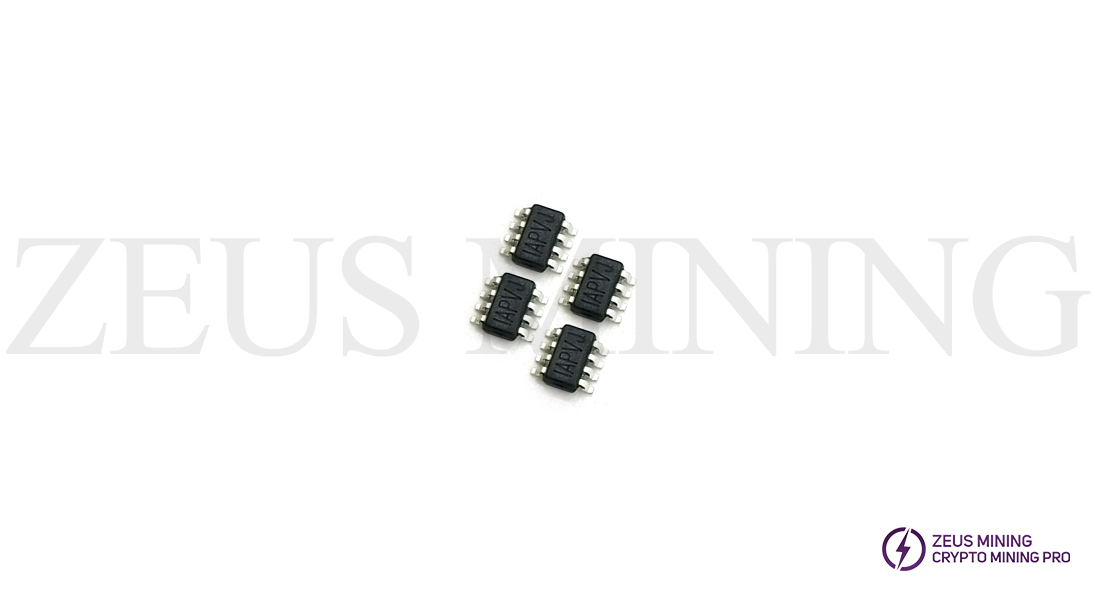

Silk screen marking: APVY(APV: Product code of MP2319GJ; Y: Year code)
Wide 4.5V to 18V operating input range
105mΩ/57mΩ low RDS(ON) internal power MOSFETs
Output adjustable from 0.8V
EN shutdown output discharge
Internal soft-start
High-efficiency synchronous mode operation
Fixed 650kHz switching frequency
EN and power good for power sequencing
Applications:
Security cameras, portable devices and xDSL devices, digital set-top boxes, flat-panel televisions and monitors, general purposes.
