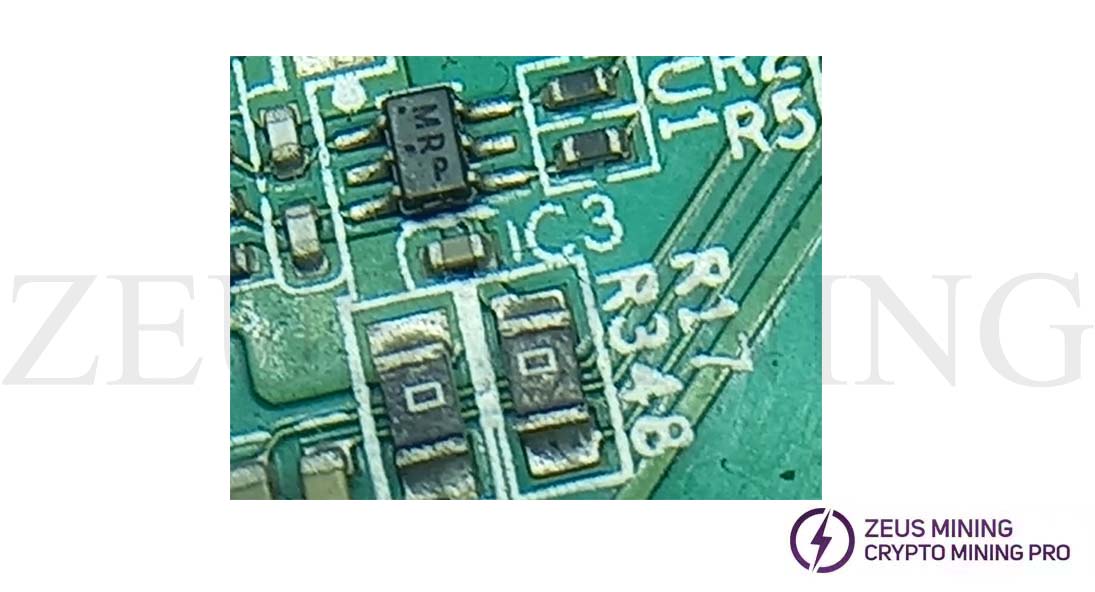

Telegram : @zeusmining_presalesThe NL27WZ16DFT2G is a high-performance double buffer, 1.65-5.5V. A memory used for Innosilicon series hash boards to temporarily store data when it passes between elements with different transmission capabilities. Buffers balance the flow of data between each component, allowing them to send and receive data at an optimum rate. Buffers are mostly used on the bus to delay or improve the driving capability and isolate the front and rear circuits.
Product Category: Buffers and Line Drivers
High level output current: - 32 mA
Low-level output current: 32mA
Quiescent current: 1 uA
Supply Voltage - Maximum: 5.5V
Supply Voltage - Minimum: 1.65 V
Operating supply current: 10 microamps
Minimum operating temperature: - 40 degrees Celsius
Maximum operating temperature: + 85 degrees Celsius
Function: buffer
Height: 0.9mm
Input signal type: single-ended
Length: 2mm
Logic Family: LCX
Logic Type: CMOS
Number of channels: 2
Operating Supply Voltage: 1.65V to 5.5V
Pd - Power consumption: 200 MW
Product Category: Buffers and Line Drivers
Propagation delay time: 4.6 ns at 3.3 V, 3.8 ns at 5 V
Series: NL27WZ16
Subcategory: Logic Integrated Circuits
Supply Current - Maximum: 1 uA
Technology: CMOS
Width: 1.25mm
Unit Weight: 0.000988 oz
