Unit Price: | $ 1596 |

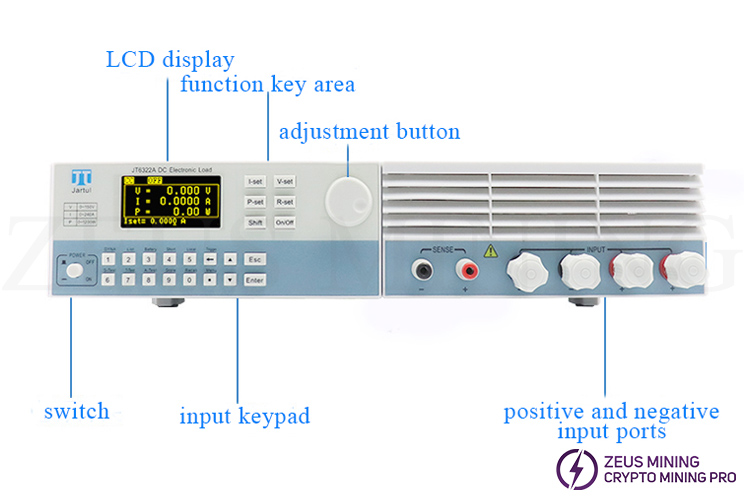

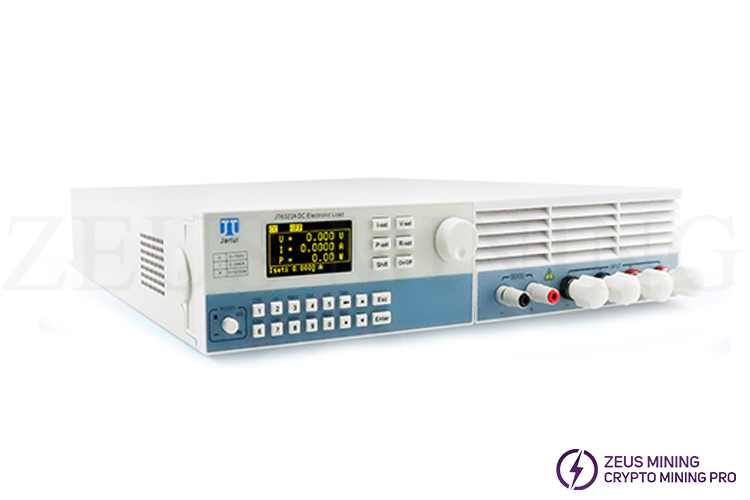

JT6322A programmable DC electronic load tester is suitable for testing various battery capacities and power sources. Accurate LED simulation, 500KHz synchronous sampling, high-precision LCD screen, clear digital display; over-voltage, over-current, over-power, overheating, reverse polarity protection, etc.; constant current, constant voltage, constant power, Four working modes of constant resistance. Its functions include routine tests, list tests, external triggers, and remote measurements.
Introduction of four working modes:
1) Constant current mode (CC):
In constant current mode, no matter whether the input voltage changes, the load will be loaded according to the set current.
2) Constant voltage mode (CV):
In constant voltage mode, the load maintains the input voltage at the set voltage through the fast and accurate current pull.
3) Constant resistance mode (CR):
In constant resistance mode, the load will be equivalent to a constant resistance.
4) Constant power mode (CP):
In constant power mode, the load will be loaded with constant power.
Product basic parameters:
Model: JT6322A
Input power: 1200W
Input voltage: 0~15V/0~150V
Input current: 0~24A/0~240A
Minimum operating voltage: 1.4V@240A
Basic operation mode: CC/CV/CP/CR

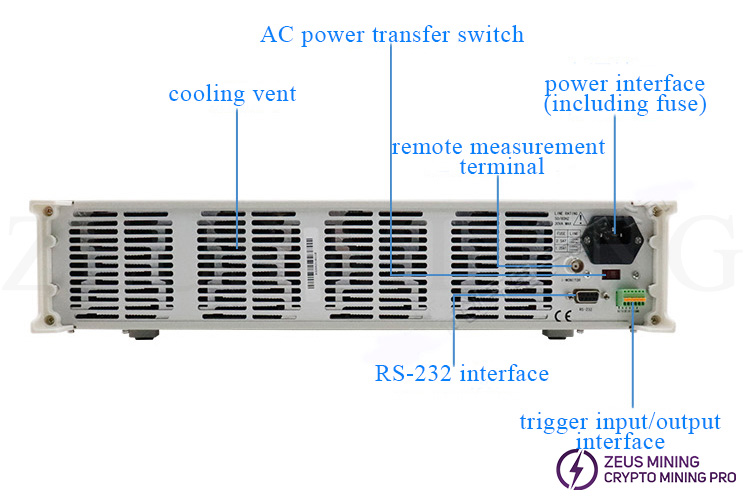

Interface: RS232
Product Specifications:
Model | JT6322A | ||
Input Rating | Power | 1200W | |
Voltage | 0~15V | 0~150V | |
Current | 0~24A | 0~240A | |
Min. operating voltage | 1.4V@240A | ||
Full range current rising time | 25uS | ||
CC Mode | Range | 0~24A | 0~240A |
Resolution | 0.5mA | 5mA | |
Accuracy | 0.03%+0.05%FS | ||
CV Mode | Range | 0~15V | 0~150V |
Resolution | 0.2mV | 2mV | |
Accuracy | 0.03%+0.02%FS | ||
CP Mode | Range | 1200W | |
Resolution | 16Bits | ||
Accuracy | 0.1%+0.1%FS | ||
CR Mode | Range | 0.006Ω~50KΩ | |
Resolution | 16Bits | ||
Accuracy | (0.1+0.08R)% | ||
LED Mode | Bandwidth | 100kHz above | |
Rd Coefficient Range | 0.001~1 | ||
Dynamic Operation Mode | Range | 10uS~50S | |
Resolution | 2uS | ||
Accuracy | 1uS+20PPM | ||
Slew rate | 4.8A/mS~9.6A/uS | ||
Voltage Meas. | Range | 0~15V | 0~150V |
Resolution | 0.1mV | 1mV | |
Accuracy | 0.02%+0.03%FS | ||
Current Meas. | Range | 0~24A | 0~240A |
Resolution | 0.1mA | 1mA | |
Accuracy | 0.03%+0.05%FS | ||
Ripple Meas. | Range | 0~15V | 0~150V |
Bandwidth | 10Hz~100kHz | ||
Accuracy | 1mV±0.03% | 10mV±0.03% |
