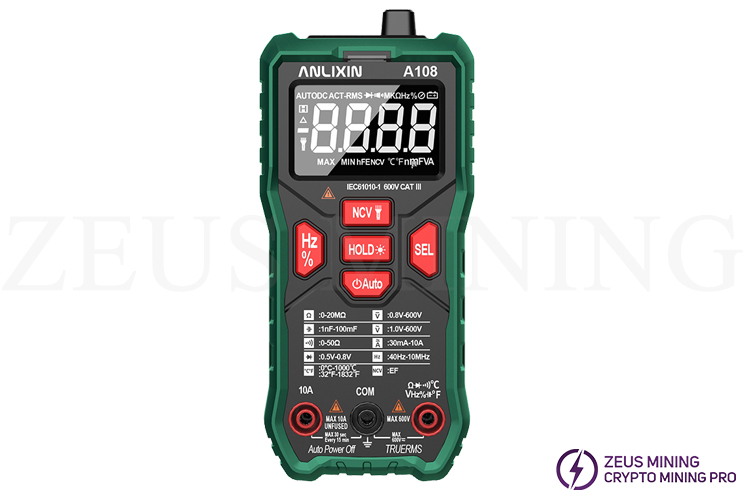

ANLIXIN A108 Automatic Intelligent Digital Multimeter

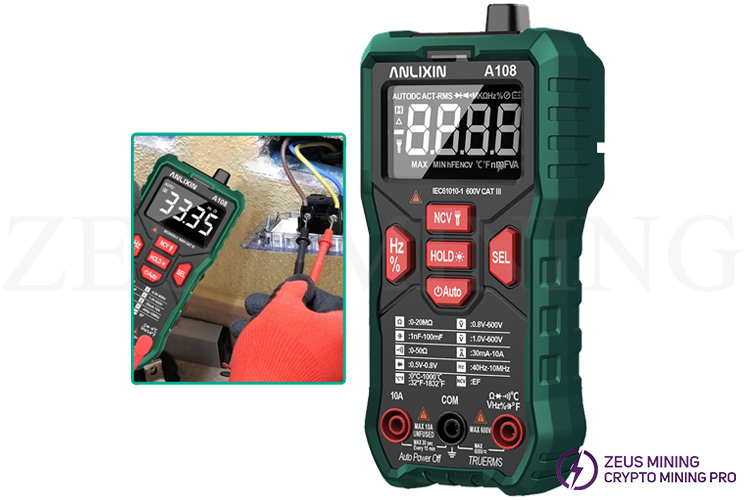

Anlixin A108 intelligent anti-burning multimeter adopts full-automatic range, complete functions, instant measurement after power-on, 18 kinds of function recognition, such as AC and DC voltage/AC/DC current/resistance/capacitance on-off buzzer/zero live wire identification, etc., to meet the daily needs of customers.

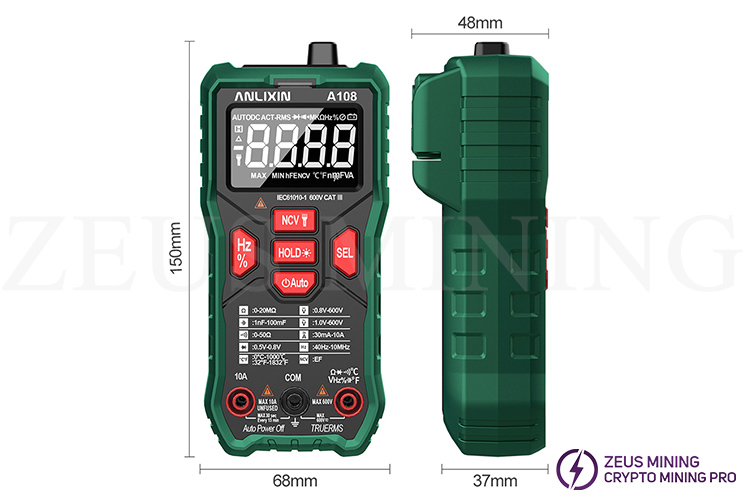

Product parameters:

Product model: A108

DC voltage: 1V-600V

AC voltage: 1V-600V

AC current: 30mA-10A

DC current: 30mA-10A

Resistance: 1Ω-60MΩ

Temperature measurement: -20℃-320℃/601℉-1832℉

Capacitance: 9.999nF-999.99F

Frequency: 99.99Hz-10MHz

Maximum display value: 5999

Product net weight: 230G

Product features:

1) Automatically identify the corresponding gear and range; no need to change gears, and the measurement is simple.

2) 2.5-inch VR high-definition display screen, high-definition backlight, no fear of darkness.

3) Intelligent anti-burning is safer; built-in fuse overload protection measures, and is equipped with high-performance withstand voltage relays with a pressure of 600V.

4) Reading hold mode H; short press the "HOLD" key, and the reading will be held, and short press the "HOLD" key again to restore the meter to the normal measurement state.

5) Non-contact voltage detection; short press the NCV button and put the front end of the meter close to the object to detect, detect the strength of the signal; when the voltage is greater than 90V, the buzzer will emit a beep alarm, and there is no response when the voltage is insufficient, or the power is not turned on.

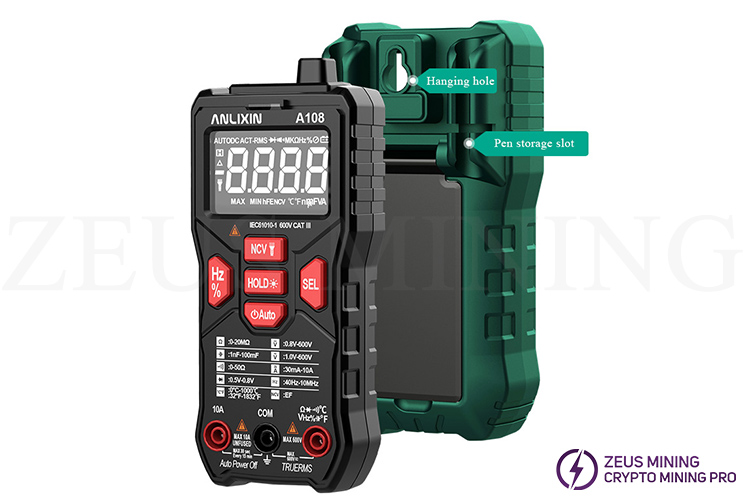

6) Industrial-grade rubber protective case; double protection, the back of the protective case comes with pen storage and hanging holes, which are anti-fall, wear-resistant, and durable.

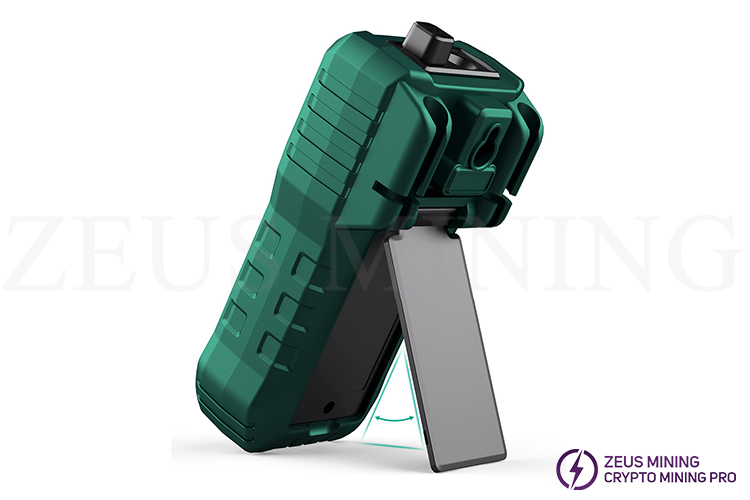

7) The retractable bracket can be adjusted at will; there is an extendable support frame on the back, which can be adjusted at will according to the actual viewing angle, which is more humanized.

8) Accurate measurement, functional application, accuracy from inside to outside, real embodiment, automatic range, NCV non-contact and other functions are mastered by one machine.

Product instructions:

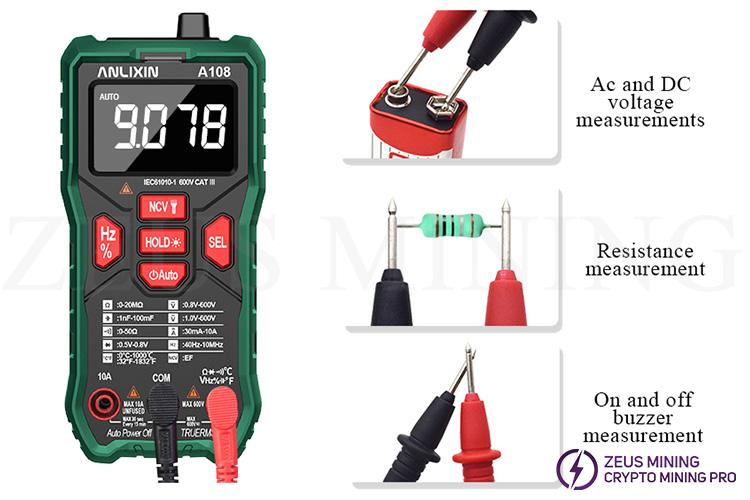

AC and DC voltage measurements:

① Long press the Auto button to turn on the meter's power.

② Connect the test leads to COM and input socket respectively.

③Use the other two ends of the test pen and connect to the voltage source, both ends of the load or the resistance to measure

④The instrument will automatically identify AC voltage, DC voltage, resistance, and buzzer. The measured data is read from the LCD. When a DC voltage is detected, the display will simultaneously display the polarity of the voltage connected to the red test lead.

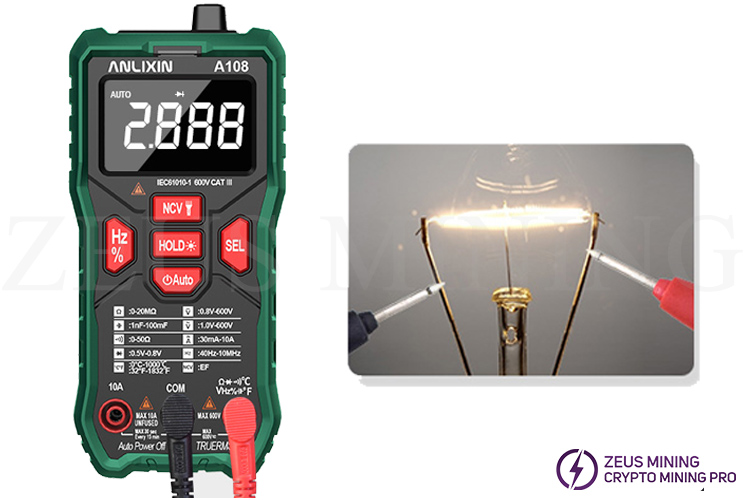

The method of resistance measurement and on-off buzzer measurement is the same as above.

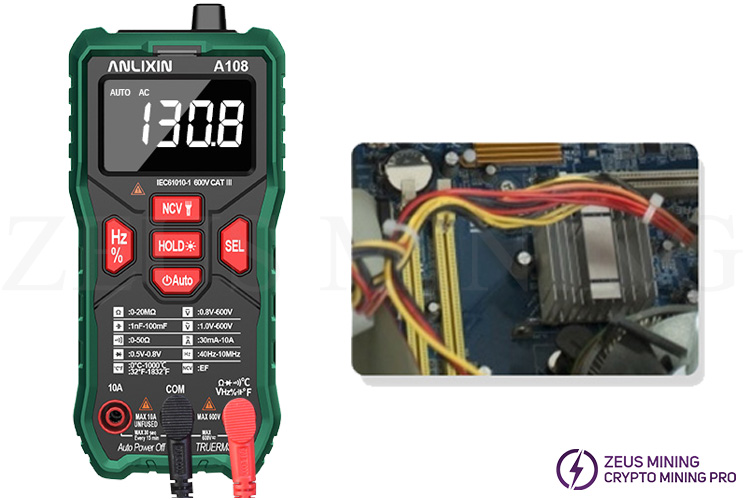

AC and DC current measurements:

① Long press the Auto button to turn on the meter's power.

② Connect the test leads to the COM and 10A input sockets respectively.

③ Disconnect the circuit to be tested. Connect the black test lead to one end of the disconnected circuit (which has a lower voltage), and the red test lead to the other end of the disconnected circuit (which has a higher voltage).

④The instrument will automatically identify AC current and DC current. The measured data is read from the LCD. When DC current is detected, the display will simultaneously display the polarity of the current connection to the red test lead.

Diode test:

① Test a diode outside the circuit.

②Press the "SEL" button to switch to the test state.

③Connect the test leads to COM and input socket respectively.

④Connect the other end of the red test lead to the anode of the diode, and the other end of the black test lead to the cathode of the diode for testing.

⑤ The meter will display the approximate value of the diode's forward voltage drop under test. If the polarity of the test pen is reversed, the meter will display "OL." In the circuit, a normal diode should produce a forward voltage drop of 0.5V to 0.8V, but the reading of the reverse voltage will. Depends on the resistance value change of other channels between the two test leads.

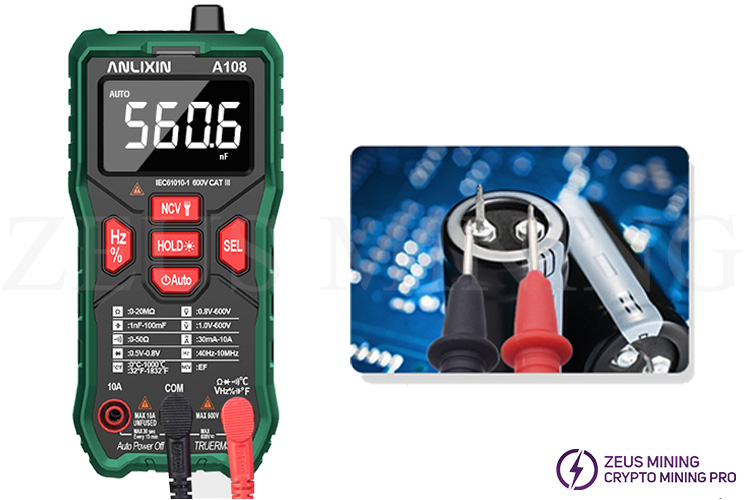

Capacitance test:

① Long press the Auto button to turn on the meter's power.

②Connect the test leads to COM and input socket respectively.

③Press the "SEL" button to switch to the capacitance range.

④ After the capacitor under test is fully discharged, connect the other ends of the red and black test leads to both ends of the capacitor under test for measurement. And the measured capacitance value is read by the liquid crystal display.

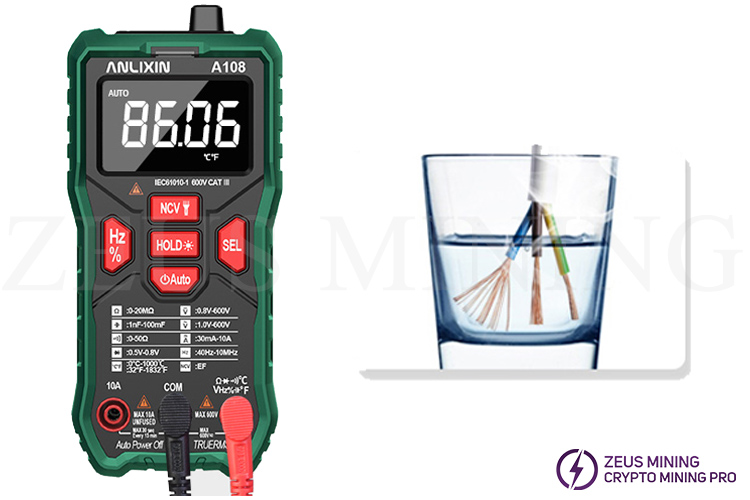

Temperature test:

①Press "SEL" to select Celsius or Fahrenheit.

② Connect the negative terminal (black) and the lower terminal (red) of the K-type thermocouple to the COM input jack and the input hole respectively.

③Put the other end of the thermocouple (test end) close to the object's surface to be measured.

④ When the reading is stable, read the measured temperature value from the liquid crystal display.

Note: The maximum temperature of the K-type thermocouple distributed randomly is 250 degrees Celsius.
