| Unit Price: | $ 3.8 |
WhatsApp : +8619123969125

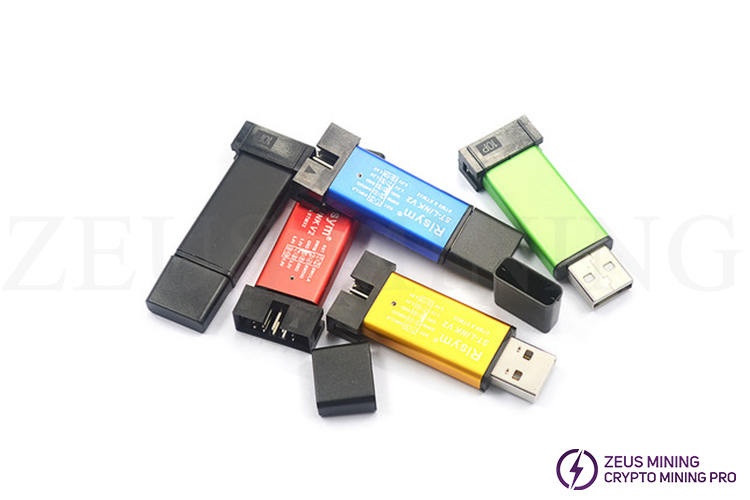

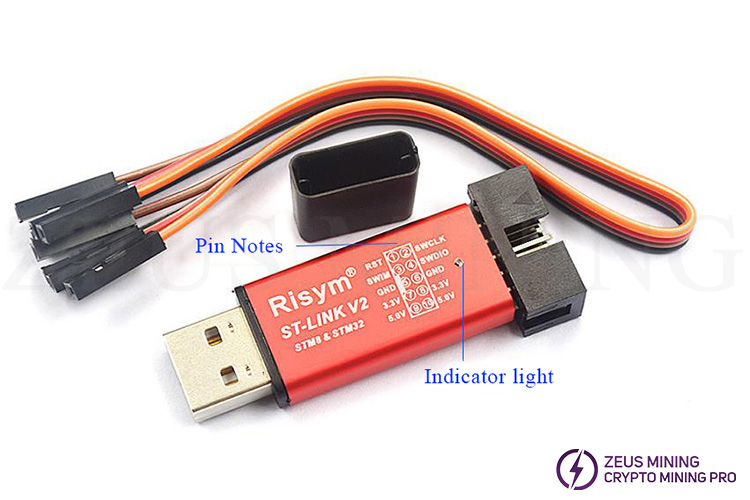

Telegram : @zeusmining_presalesSTM8 / STM32 emulator programmer stlink downloader line programming and debugging MCU supports all STM32 SWD interface debugging and SWIM debugging of STM8 or STM32 series controllers. It can provide power to target 5V and 3.3V outputs. An Aluminum alloy U disk shell is used to install the internal motherboard, which is easy to carry, safe, and reliable. The internal motherboard has a 500MA resettable fuse to protect your expensive motherboard. The outer packaging uses an anti-static bag, and the automatic sealing machine seals the package, which is safe and reliable, not afraid of static electricity and not afraid of water ingress!
Note: This product must be used with a PicoBT multifunctional hash board tester.
Product features:
1. Support the debugging of a full range of STM32 SWD interfaces; the 4-wire interface is simple (including power supply), fast, and stable; the interface is directly marked outside the definition!
2. Support full series of STM8 SWIM download and debugging (commonly used development environments such as IAR, STVD, etc. are supported).
The supported software versions are as follows:
ST-LINK Utility 2.0 and above
STVD 4.2.1 and above
STVP 3.2.3 and above
IAR EWARM V6.20 and above
IAR EWSTM8 V1.30 and above
KEIL RVMDK V4.21 and above
3. Support automatic firmware upgrades to ensure follow-up support for the company's products. The firmware has been upgraded to the new V2.J17.S4 when leaving the factory.
4. Increase the 5V power output; the output I/0 ports are protected, so you are not afraid of damage caused by misoperation!
5. The interface uses pure copper gold-plated 2.54 pitch simple horn seat, equipped with a 20CM DuPont line, which can cope with the line sequence of different target boards and flexible wiring.
6. Use the aluminum alloy casing of the U disk to protect the main board, which is easy to carry and is not afraid of static electricity or falling.
How to use the ST-LINK V2 emulator and programmer?

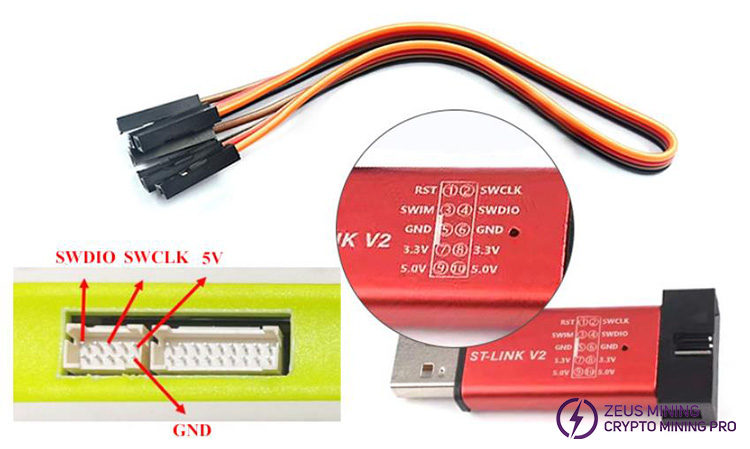

1. Insert one end of the DuPont cable into "② SWCLK", "④ SWDIO", "⑤ or ⑥ GND", "⑨ or ⑩ 5.0V" of the programmer.
2. Download the STM32 ST-LINK Utility software and install it on the computer.
3. Insert the ST-LINK V2 programmer into the computer, and then connect the other end of the Dupont cable to the SWDIO, SWCLK, GND and 5V pins of the test fixture.

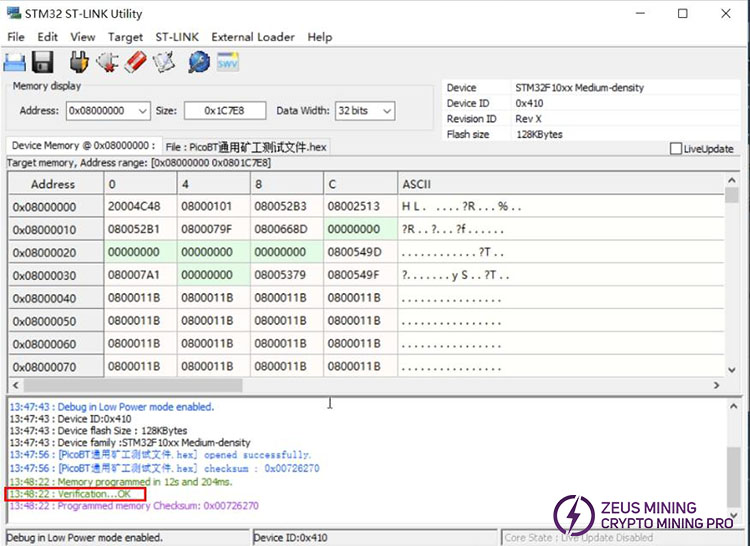

4. Click the icon
on the STM32 ST-LINK Utility software to start connecting the test fixture.
5. Click the icon
to start loading the new firmware (with Hex format)
6. Click the icon
to start programming. When "OK" appears on the interface of the STM32 ST-LINK Utility software, it means that the test fixture has been successfully activated. At this time, the tester will also restart.
Related Products:
PicoBT Multifunctional Hash Board Tester
