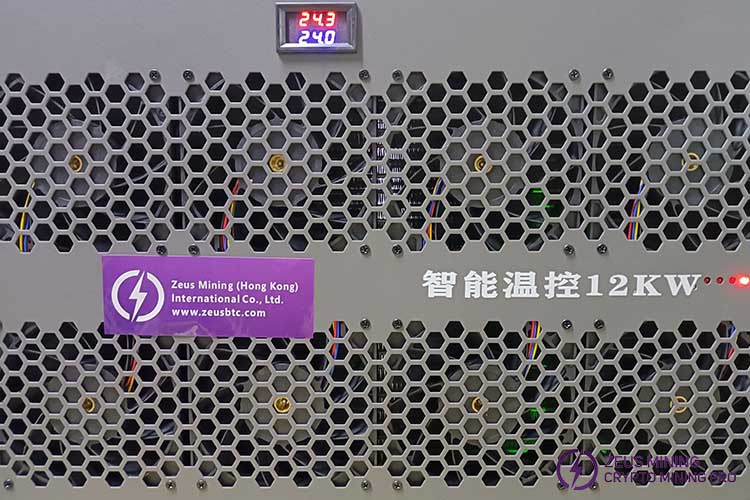

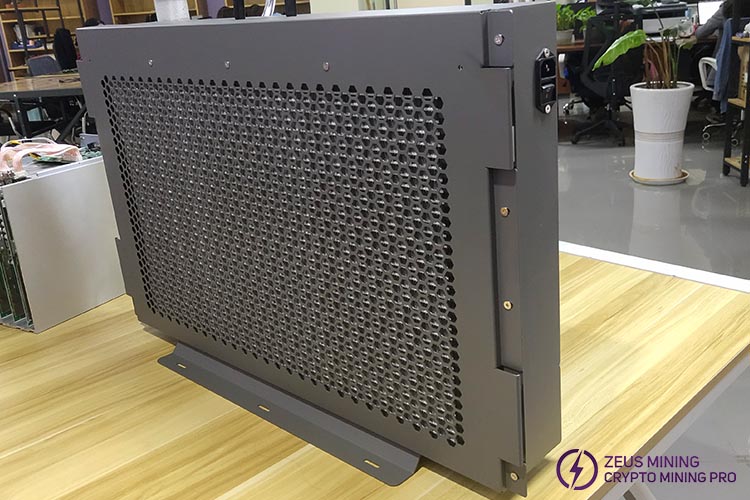

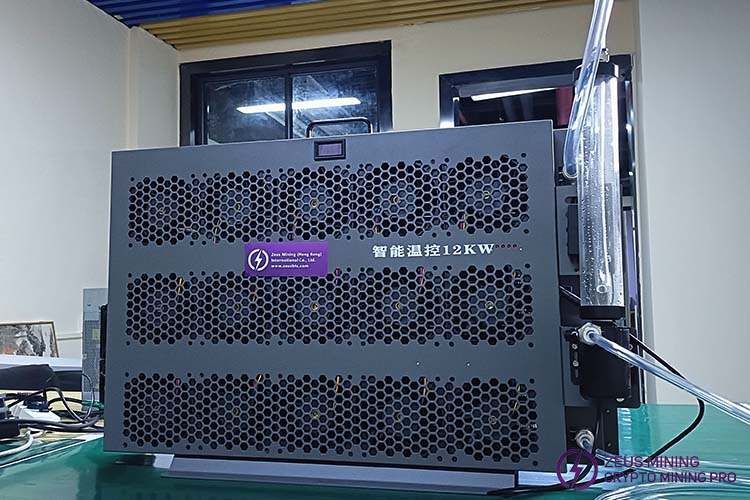

The 12kw intelligent temperature control water-cooled radiator is the simplest and most convenient overclocking system for air-cooled miners and water-cooled miners. It has intelligent temperature control and real-time detection of operating temperature. It can effectively reduce the operating temperature of the hash board ASIC chip, built-in 15 cooling fans and achieve efficient heat dissipation and stable operation. While helping mines to overclock, it also helps miners increase mining profits.
Cooling medium: pure water or coolant.
Version 1: With intelligent temperature control
Product advantages:
1. The intelligent temperature control system will automatically adjust the water exhaust fan position according to the water temperature, eliminating the need for manual adjustment. Improve the operating efficiency of water exhaust fans and save power consumption.
2. An intelligent temperature control system displays the ambient temperature of the miner in real time. Help miners monitor temperature and adjust operating environment temperature conveniently, efficiently, and quickly.
3. The water-cooled exhaust fan has a built-in extra-long copper pipe and an external extra-long water-cooling pump. Compared with ordinary water-cooled exhaust fans, more coolant can be loaded, and the heat dissipation effect is more powerful. (Generally, water-cooled exhaust fans can only add 2L of coolant once, while intelligent temperature-controlled water-cooled exhaust fans can add 3L of coolant.)
4. The water pump head can reach 16 meters and has strong power. Ensure that the coolant flows at high speed in the minerand water-cooled exhaust fan to enhance the cooling effect.
5. The intelligent temperature-controlled water-cooled exhaust fan can simultaneously drive the operation of miners with a combined power of 12,000W. (For example, the power of S19XP (141T) is 3031.5W. The water-cooled exhaust fan can drive 3 miners to operate simultaneously, greatly improving miners' operating efficiency.)
6. The operating noise is small, and the second-speed wind speed noise is only about 70 decibels after actual testing.
7. The temperature of the water-cooled miner's air outlet connected to this exhaust fan is reduced to about 60 degrees. It can realize the overclocking of miners and increase miners' profits.

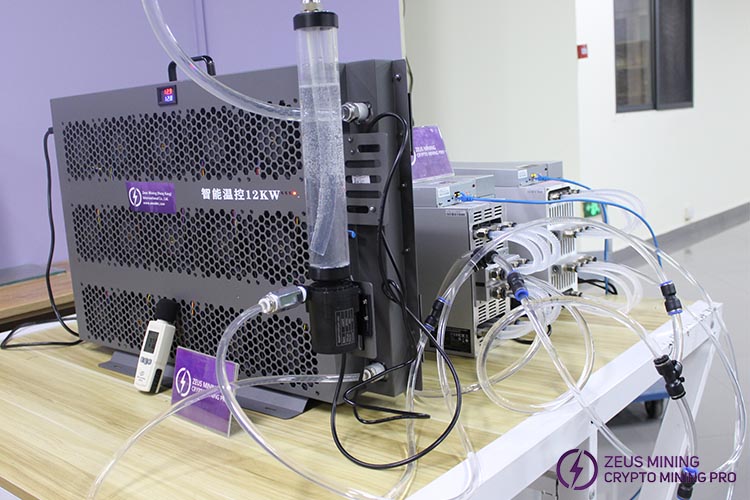

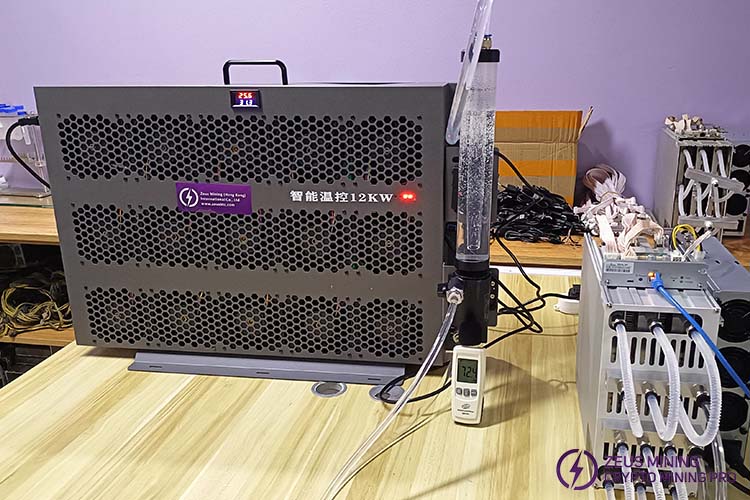

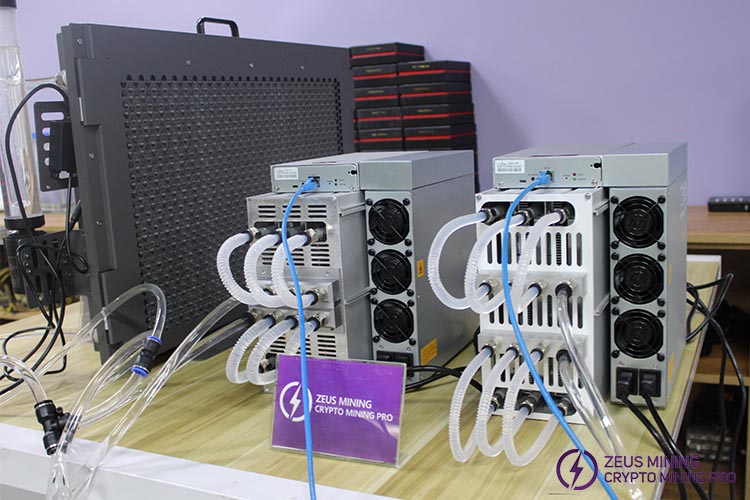

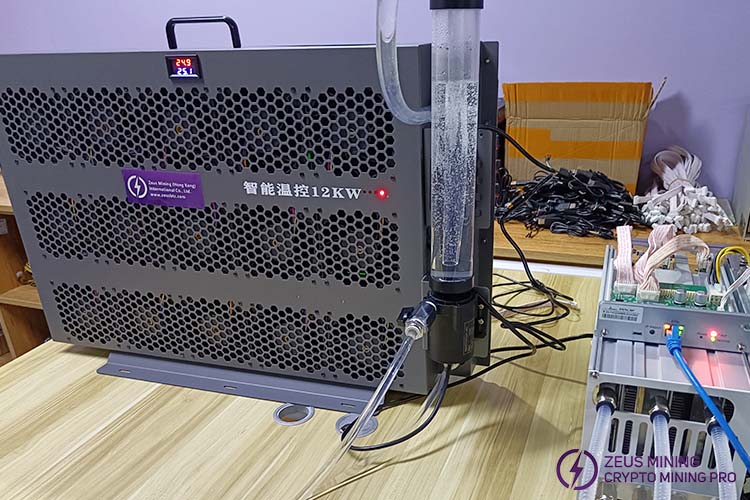

The Intelligent temperature control 12KW ASIC water cooling row can simultaneously dissipate heat for two miners with a total power of less than 12kw, effectively saving the miners' operation and maintenance costs. The connection diagram is as follows:
Version 2: Without intelligent temperature control
Product features:
1) Extremely fast heat dissipation, 12000W high power, adjustable fan, built-in power supply;
2) Equipped with a powerful water pump;
3) High lift, large flow, high-temperature resistant water pump, transparent water tank for easy observation of water level changes;
4) 5600 rpm high power fan;
5) Customized density cold water plate;
6) Water pump with the speed control button.

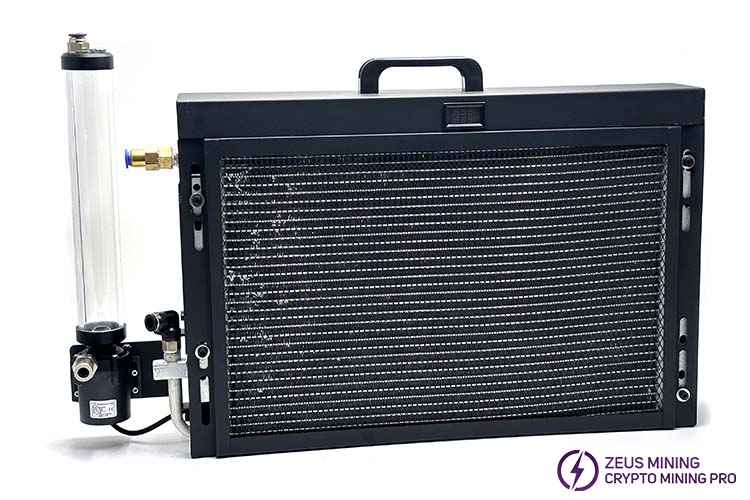

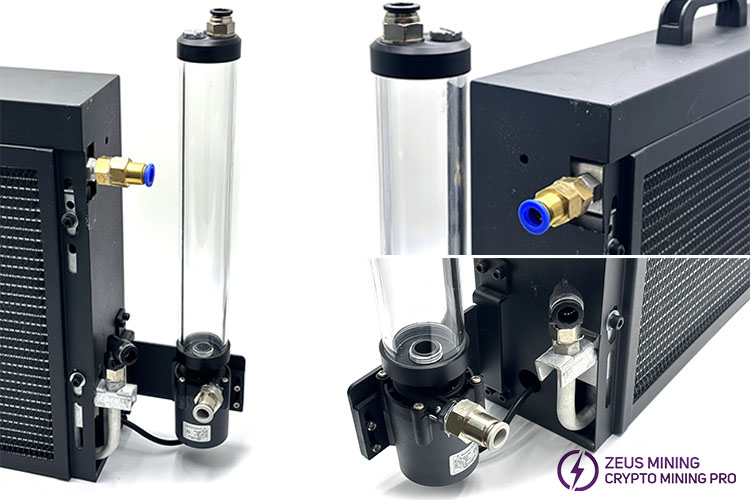

Front side:

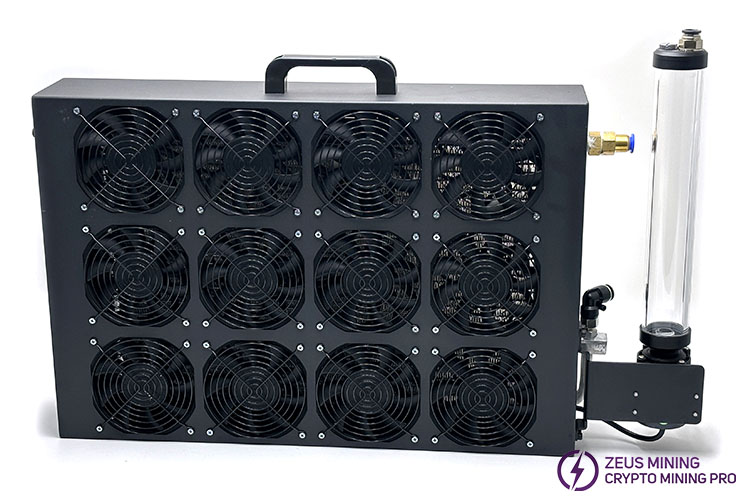

Back side:

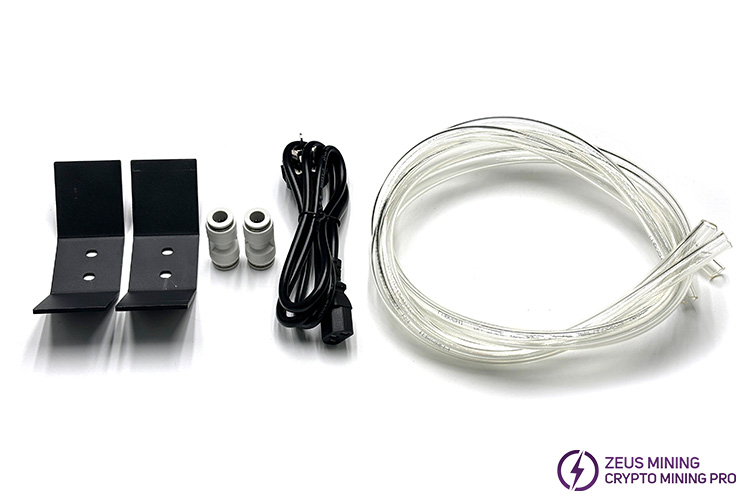

Parts list:
Product parameter:
Product name | Integrated water cooling radiator 12kw |
Color | Black |
Water pump flow | 2400L/H |
Water pump head | 16M |
Working power | 360W |
Working voltage | 12V |
Load | 11. 5L |
Maximum load current | 3.3A |
Maximum power consumption | 80W |
Maximum operating temperature | 100° |
Water tank temperature resistance | -45°C- 140°C |
Fan speed | 5600RPM |
Fan speed adjustment | Support manual speed adjustment |
Single fan power consumption | 22W |
Water pipe diameter | 12CM (Whatsminer 12cm, Antminer 10cm) - adapter available |
Net weight | 13.07kg |
Gross weight | 15.02kg |
Exhaust fan size | 710x480x120mm |
Outer box size | 800x560x220mm |
