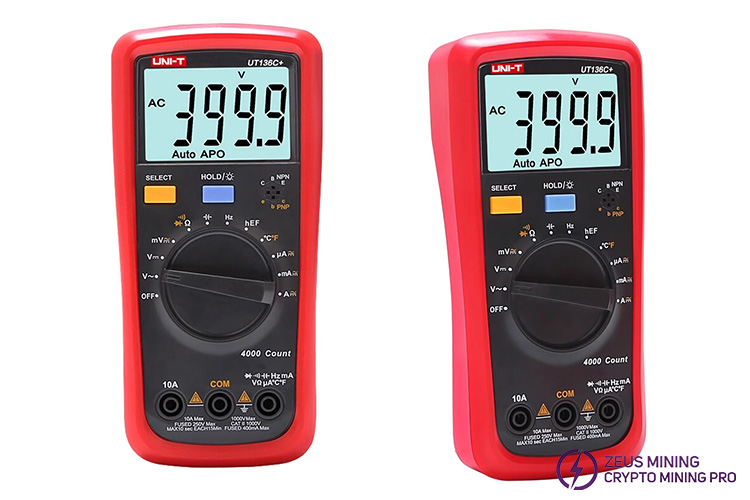

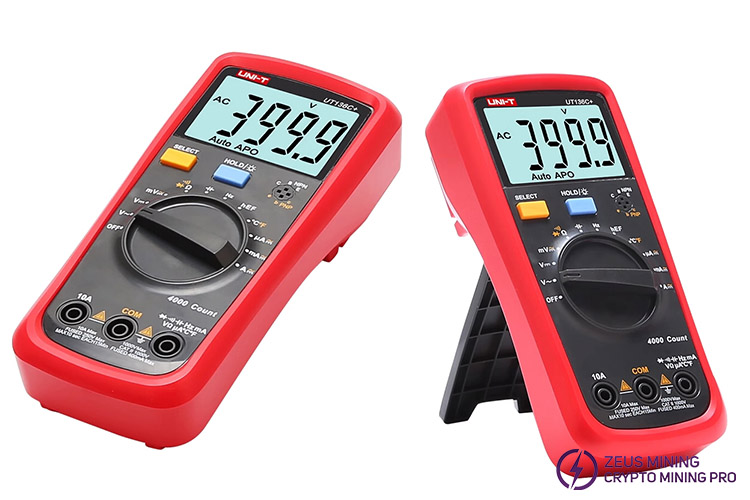

Telegram : @zeusmining_presalesUNI-T UT136C+ is a digital multimeter, high-precision capacitance meter, automatic range electrical multimeter equipped with capacitance measurement, hFE NCV temperature measurement, and a large LCD screen display. It can work safely in a CAT II 1000V/CAT III 600V environment. Based on the commonly used digital multimeter, UT136C+ adds a temperature measurement function, which can provide convenient measurement and maintenance services for miner professional technicians.
Product features:
1. Easy to operate: UT136C+ auto-ranging digital multimeter, with capacitance and frequency functions, easy to use;
2. Accurate measurement: It can measure a maximum current of 10A, a current of 20A in 30S measurement time, and an AC and DC voltage up to 1000V;
3. Test function: It has diode and transistor test function, with a maximum display of 3999, easy to operate and practical;
4. Multi-function: It has basic functions such as switch test, data retention, automatic shutdown, low-voltage display and screen backlight;
5. Safety protection: Safety level CAT II1000V, CAT III 600V, passed 1m drop test. Full-featured false detection protection can withstand a maximum voltage impact of 1kV.
UT136C+ multimeter technical indicators:
Basic skills | Measuring range | UT136C+ |
DC voltage | 400mV / 4V / 40V / 400V / 1000V | ±(0.7%+3) |
AC voltage | 400mV / 4V / 40V / 400V / 1000V | ±(1.0%+3) |
DC current | 400uA / 4mA / 40mA / 400mA / 4A / 10A | ±(0.8%+3) |
Alternating current | 400uA / 4mA / 40mA / 400mA / 4A / 10A | ±(1.0%+2) |
Resistance | 400Ω / 4000Ω / 40kΩ / 400kΩ / 4MΩ / 40MΩ | ±(0.8%+2) |
Capacitance | 4nF / 40nF / 400nF / 4uF / 40uF / 400uF / 4mF / 40mF | ±(3.0%+5) |
Frequency | 400Hz-40mHz | ±(0.1%+4) |
Celsius temperature (℃) | -40-1000℃ | ±(1.0%+4) |
Fahrenheit (℉) | -40~1832℉ | ±(1.5%+5) |
Special function | ||
Display digits | 3999 | |
hFE | Current amplification measurement | √ |
NCV | Non-contact voltage detection | √ |
Diode testing | √ | |
Continuity test | √ | |
Data retention | √ | |
Automatic shut-down | √ | |
Low voltage display | √ | |
LCD backlight | √ | |
Safety level | CAT II1000V, CAT III 600V | √ |
Drop test | 1m | √ |
