Unit Price: | $ 520 |

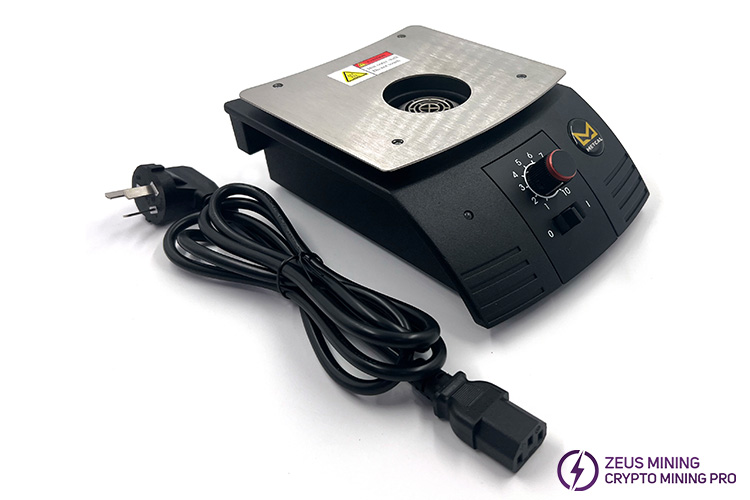

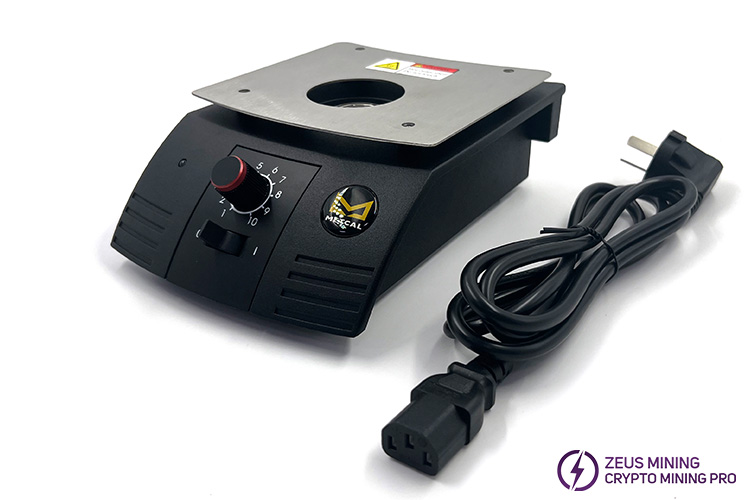

The PCT-100-21 is a focused convection preheater that provides ultra-high thermal energy for demanding applications. Different from traditional preheaters, the ASIC miner hash board can be placed directly above the PCT-100-21 preheater to provide huge heat energy for the lead-free soldering process.
It is usually used to preheat the aluminum-based hash board of Antminer Whatsminer Avalon to facilitate the servicing of components on the board.
Please refer to the article Use of PCT-100-21 convection preheater in ASIC miner maintenance to learn how to use this product.
Main features and advantages:
• For hand soldering, through-hole desoldering, hot air SMT rework, lead-free soldering, soldering of multi-layer circuit boards and large ground plane assemblies;
• Shorter processing times and superior control of potentially damaging temperatures;
• Using the top ventilation panel, the PCB can be placed directly over the heater for maximum heat transfer.
Technical specifications:
Input voltage: 230V
Heater rated power: 450W
Storage temperature:-10°C - 60°C
Ambient temperature: 0°C - 40°C
Air flow: 280L/min
Control temperature: variable up to 300°C
Surface resistance (ESD): 105Ω - 1011Ω
Dimensions (length * width * height): 205 * 155 * 65mm
Weight: 1.6kg
