Upgrade Iceriver KS5L KS5M water cooling plate kit

Installing a water-cooling block for the Iceriver KS5L KS5M miner can upgrade the KS5M KS5L Kaspa air-cooled miner to a water-cooled miner. The working principle of the liquid cooling plate is to drive the water cooling liquid circulation through the water pump to take away the heat emitted by the hash board ASIC chip, thereby improving the mining performance of the miner. Installing the KS5M KS5L water cooling module plate, miner has the advantages of efficient heat dissipation, quietness, large water heat capacity, and relatively slow temperature rise, which is conducive to ensuring that the hash board will not burn out instantly in an emergency.

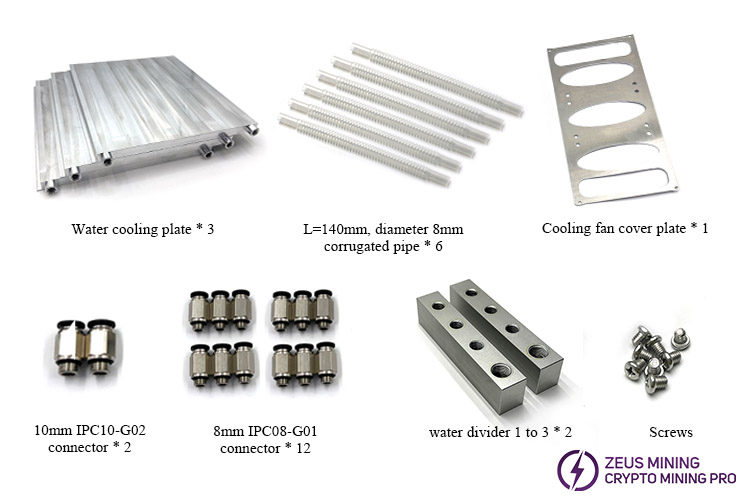

3 pcs front side (chip side) water cooling plates:

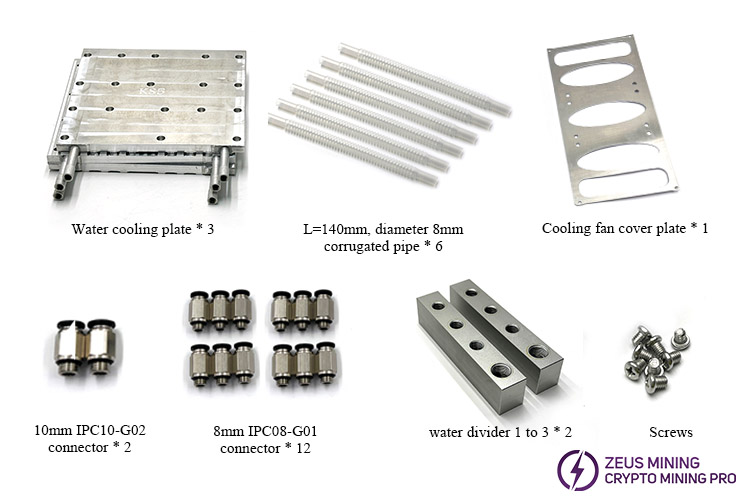

3 pcs back side water cooling plates:

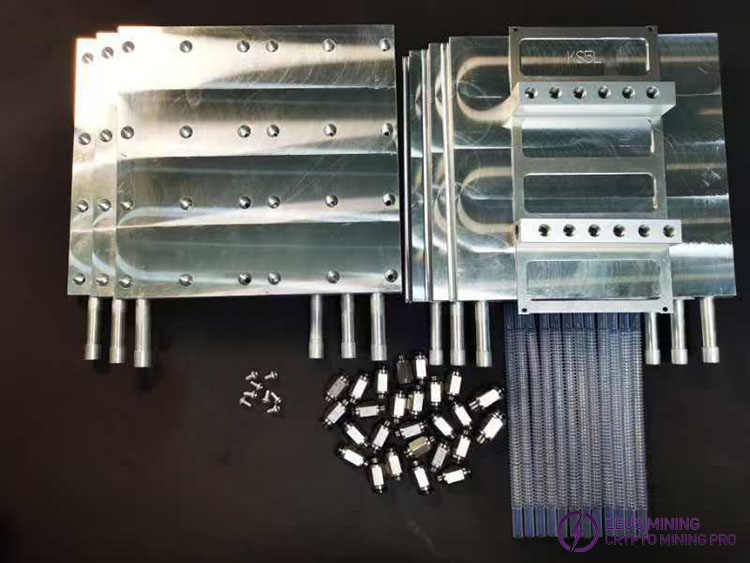

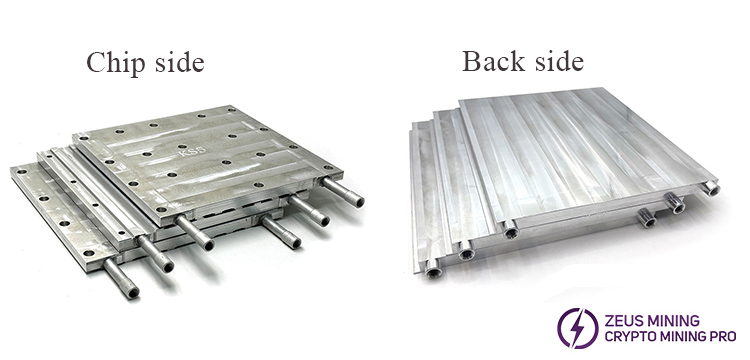

6 pcs water cooling plates:

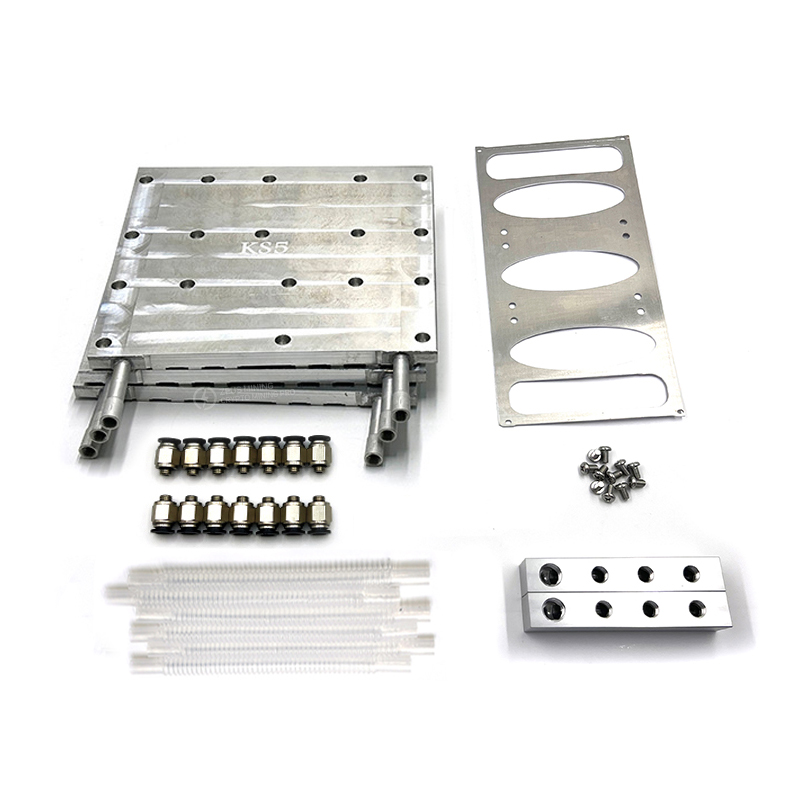

Part lists:

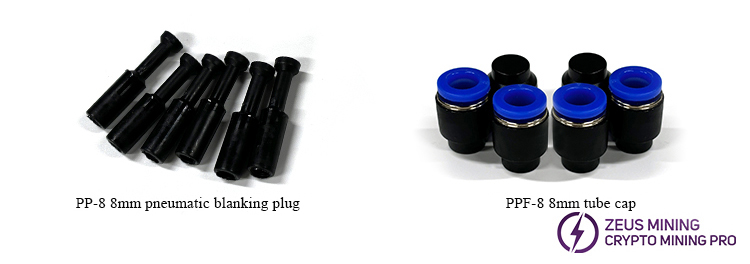

In addition, we will also give away a random number of 8mm pneumatic plugs and pipe caps, which can be used to plug the water cooling plate quick connector or bellows when replacing the water cooling plate or repairing the hash board to avoid leakage and waste of water cooling liquid.

Detailed introduction:

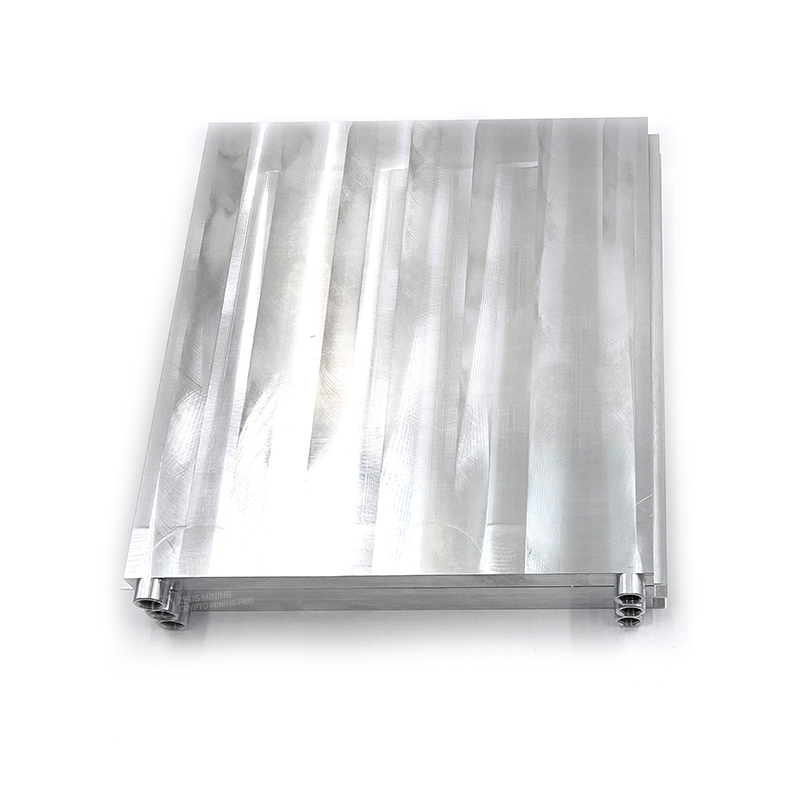

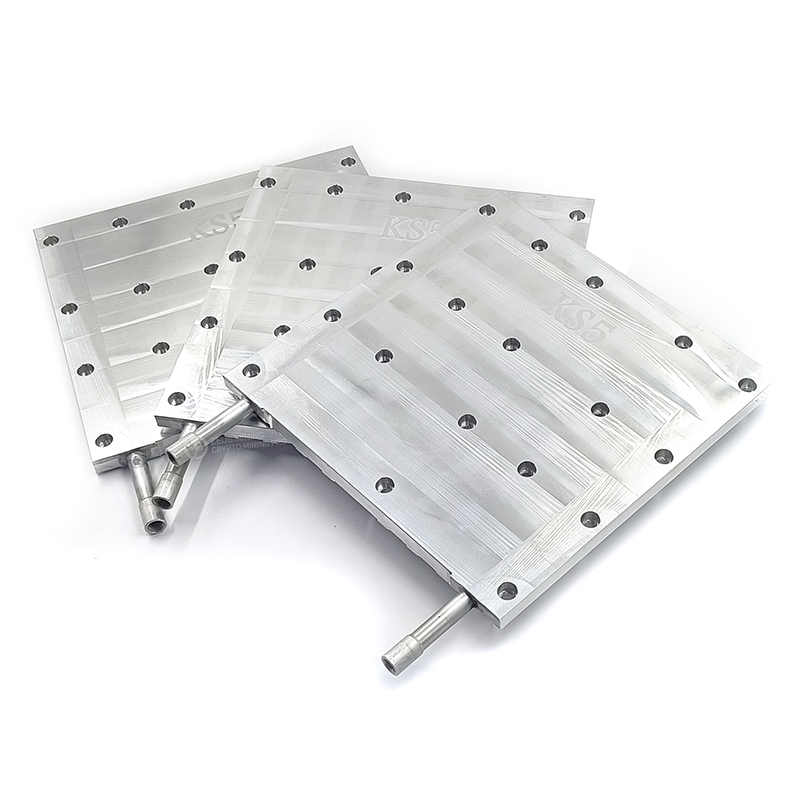

1) Antminer KS5L / KS5M water cooling block

Three integrated aluminum water-cooling plates cool the hash boards of the Bitmain KS5L KS5M miner. These plates are corrosion-resistant, have good air tightness, and quickly dissipate heat.

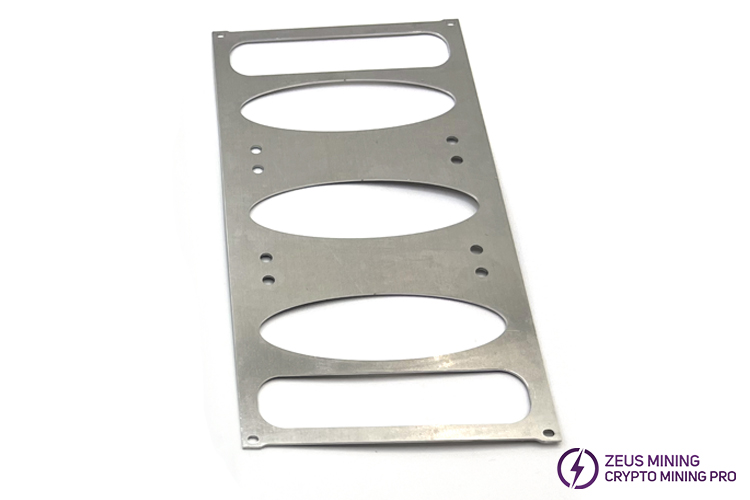

2) Cover plate

The cover plate is used to fix the water distributor and miner and prevent particles or insects from entering and affecting the miner's normal operation.

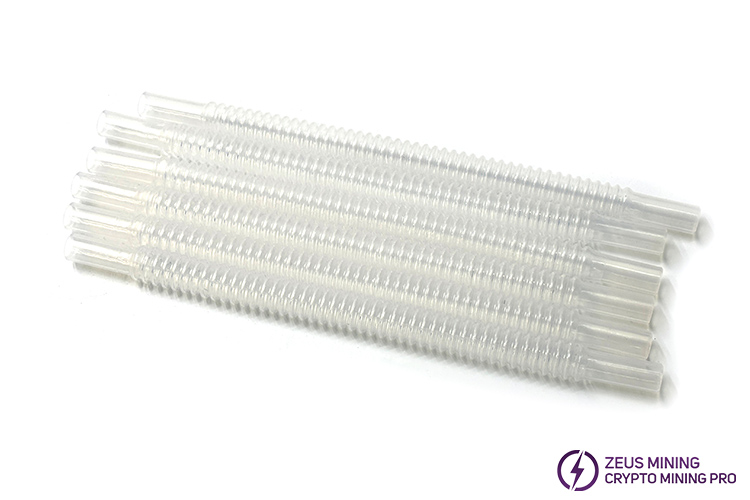

3) ASIC miner water cooling corrugated bellow

The ASIC miner water-cooled bellows connect the water-cooling plate and the water distributor to ensure smooth circulation of coolant, thereby removing the heat emitted by the miner during operation.

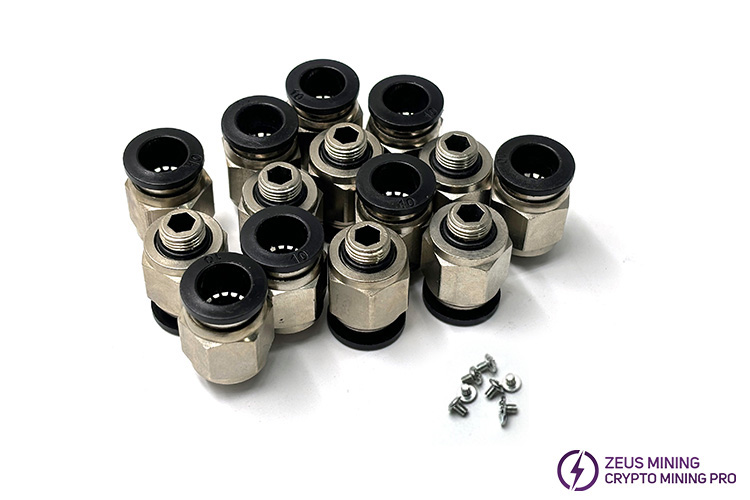

4) ASIC miner water cooling quickly connector

The connector connects the water distributor and the water pipe, ensuring the airtightness of the water pipe connection and avoiding liquid overflow.

5) Screws

Used to secure the baffle.

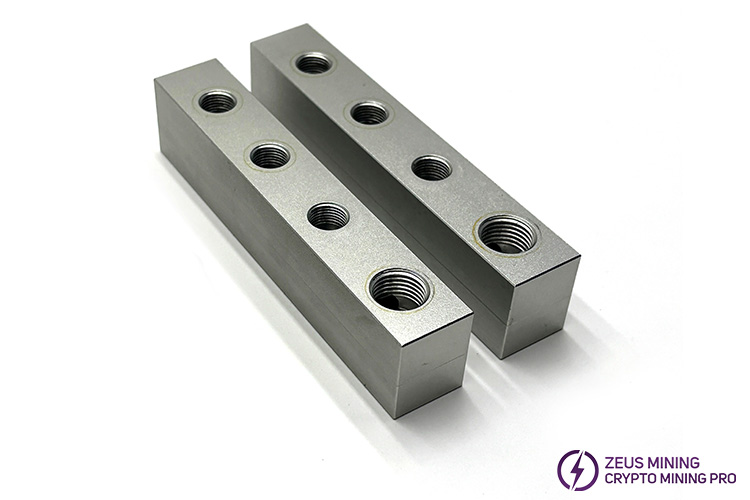

6) ASIC miner cooling water separator

The water separator is an essential accessory for installing the water-cooling plate. It connects the water pipes of the water cooling blocks and reduces the clutter of the water pipe layout of the refit water-cooled miners.

In order to learn more clearly the specific method of upgrading the water cooling of Iceriver KS5L, please click here.

For purchasing the KS5L water cooling system retrofit kit (with 12.8KW radiator), you will receive not only the water cooling plate but also the following products:

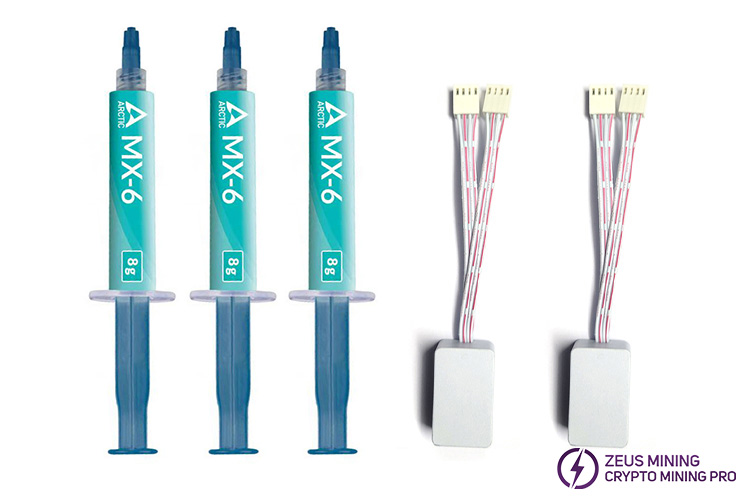

1) Arctic MX-6 thermal compound 8g * 3 (If you purchase a double-sided water cooling plate, we will send 6 MX-6 8g silicone grease.)

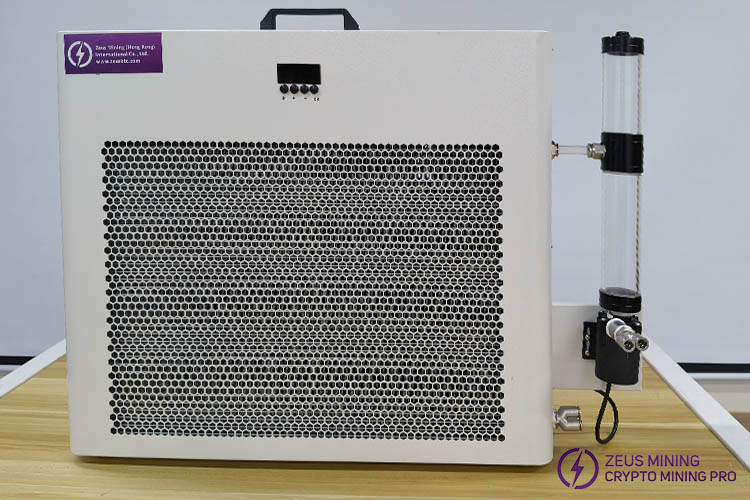

2) 12.8KW water cooling radiator * 1

3) Iceriver fan speed simulator fan spoofer * 2  (Note: please carefully note the fan speed simulator interface type, 4pin or square 4Pin; if no remarks are made, the default will be a 4pin interface.)

Temperature comparison before and after the single sided water cooling plate installation:

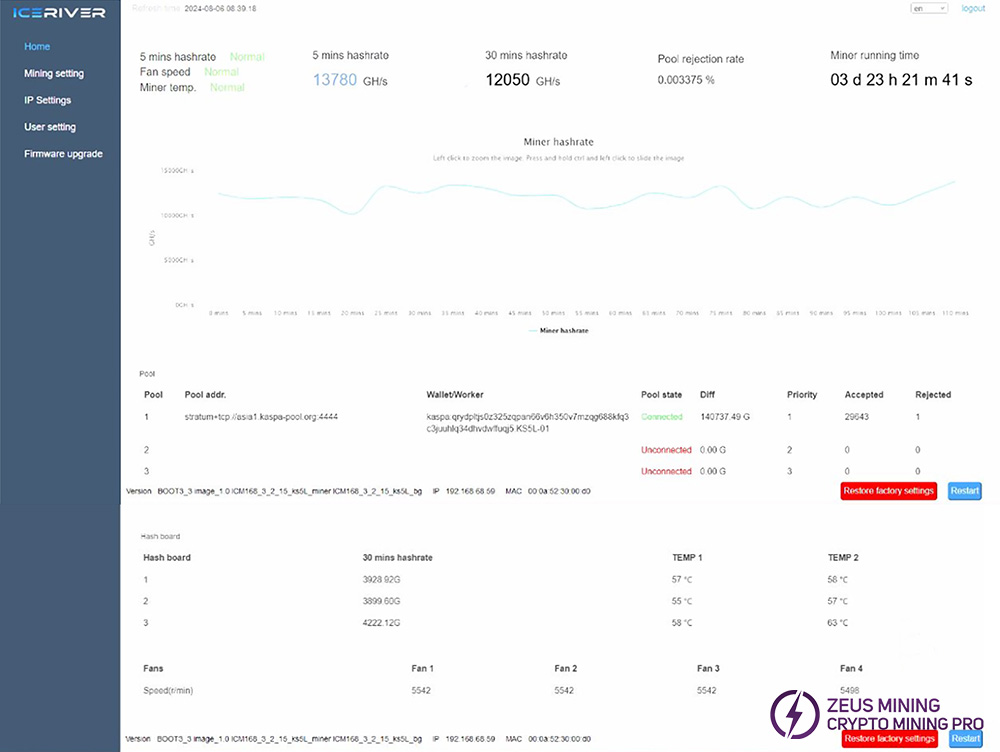

Before installation:

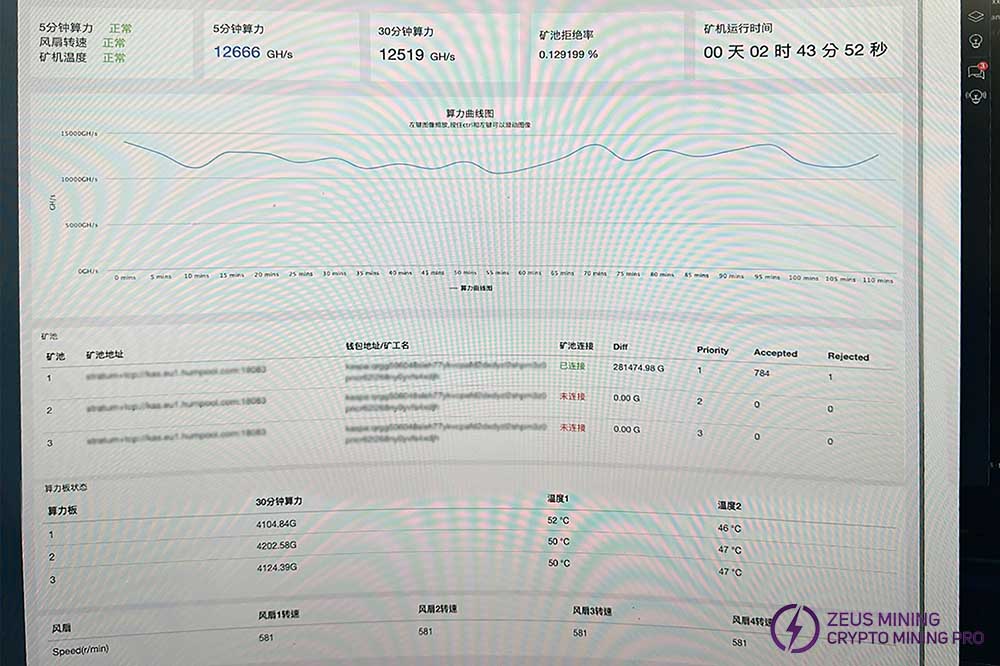

After installation:
