Unit Price: | $ 9.5 |

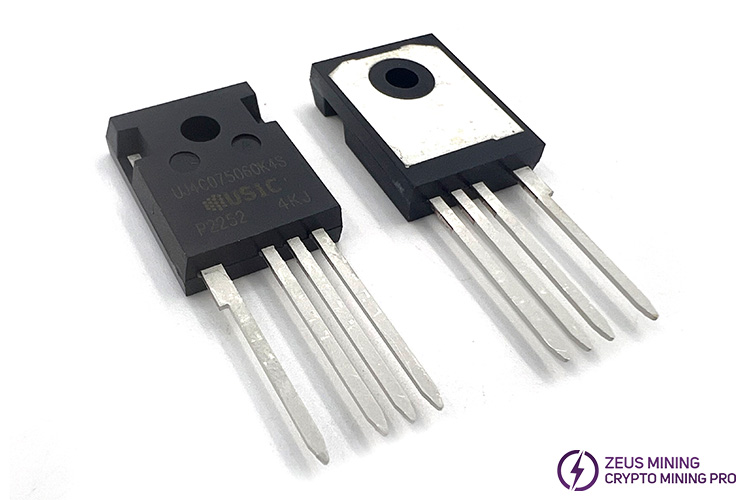

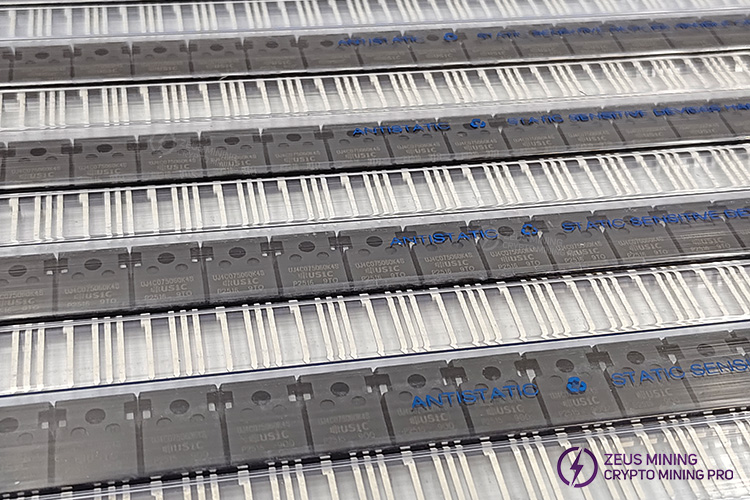

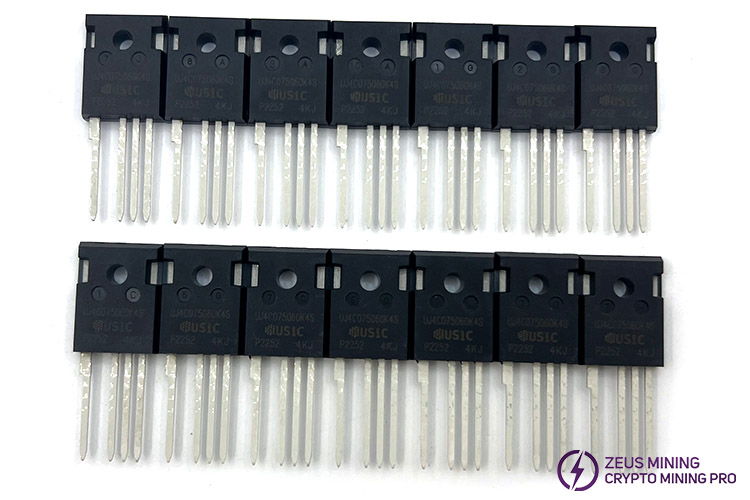

The UJ4C075060K4S is a 750V, 58mW G4 SiC FET on the Antminer APW17 power supply. The device is housed in a TO-247-4L package. It features ultra-low gate charge and excellent reverse recovery characteristics, making it ideal for switching inductive loads and any application requiring standard gate drive. The device's standard gate drive characteristics enable a true "drop-in replacement" for Si IGBTs, Si FETs, SiC MOSFETs, or Si super junction devices.
Features:
• On-resistance RDS(on): 58mW (typ)
• Operating temperature: 175°C (max)
• Excellent reverse recovery: Qrr = 52nC
• Low body diode VFSD: 1.31V
• Low gate charge: QG = 37.8nC
• Threshold voltage VG(th): 4.8V (typ) allowing 0 to 15V drive
• Low intrinsic capacitance
• ESD protected, HBM class 2

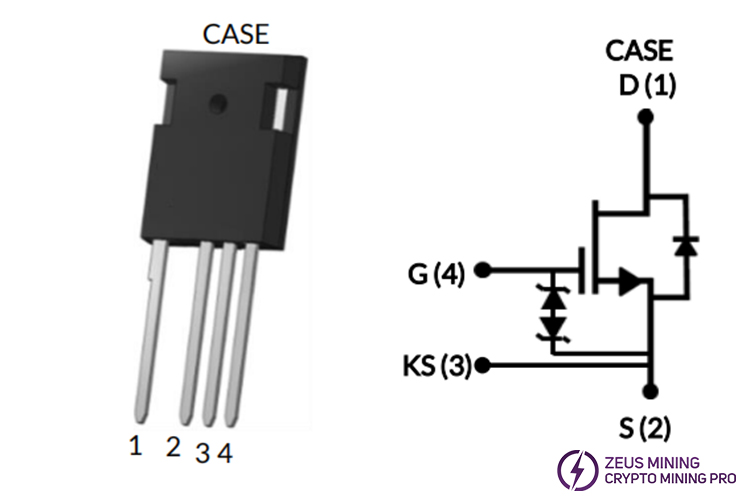

• TO-247-4L package for faster switching, clean gate waveforms
Typical applications:
• EV charging
• PV inverters
• Switch mode power supplies
• Power factor correction modules
• Motor drives
• Induction heating
