Telegram : @zeusmining_presalesFNIRSI-S1 is a handheld large-screen digital display intelligent multimeter. It can quickly measure the data of electronic components on ASIC miner hash boards, power supplies, etc. It has large-screen LCD dual display screens, lighting, easy reading, and other product advantages. It has functions such as overload protection and battery under-voltage indication. It is an ideal multi-functional tester whether it is a professional miner maintenance personnel, maintenance enthusiast, or beginner.

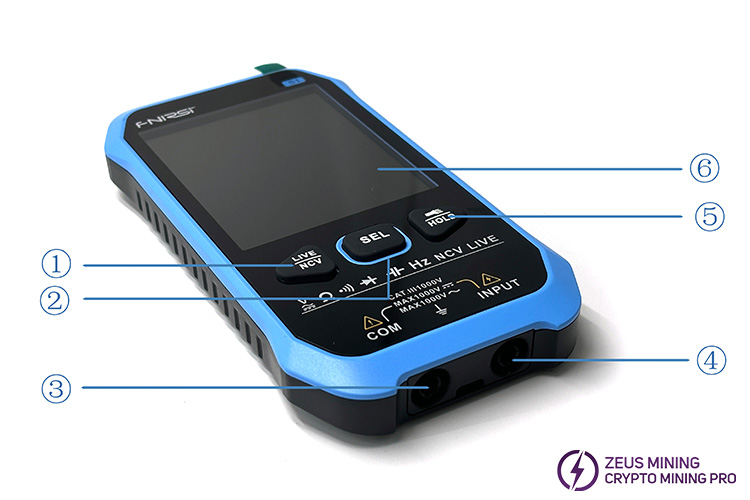

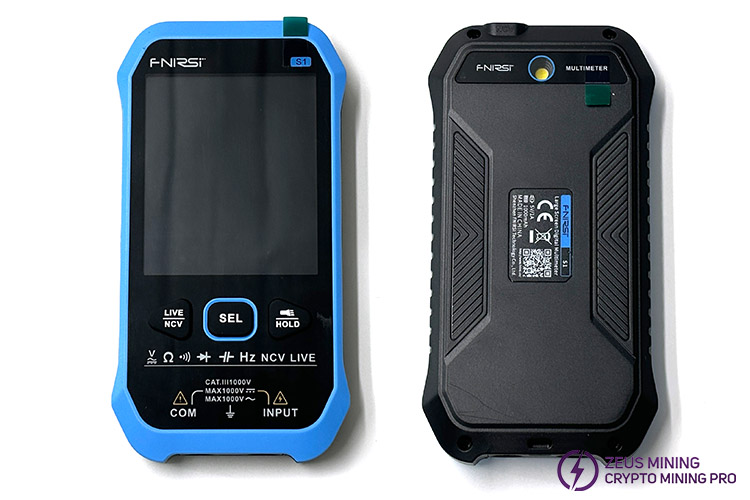

Instrument description:
① NCV and LIVE button
② SEL button
③ Black test pen input
④ Red test pen input
⑤ Data hold and flashlight button
⑥ LCD monitor

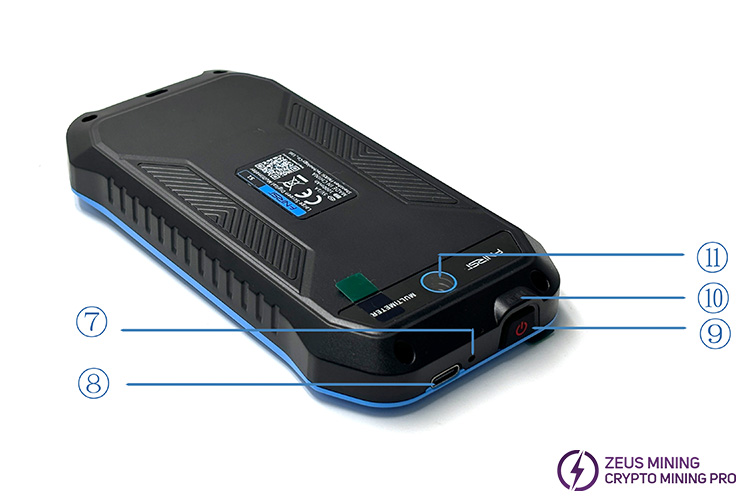

⑦ Charging indicator
⑧ Charging port (5V-1A)
⑨ On / off button
⑩ NCV sensing area
⑪ Flashlight

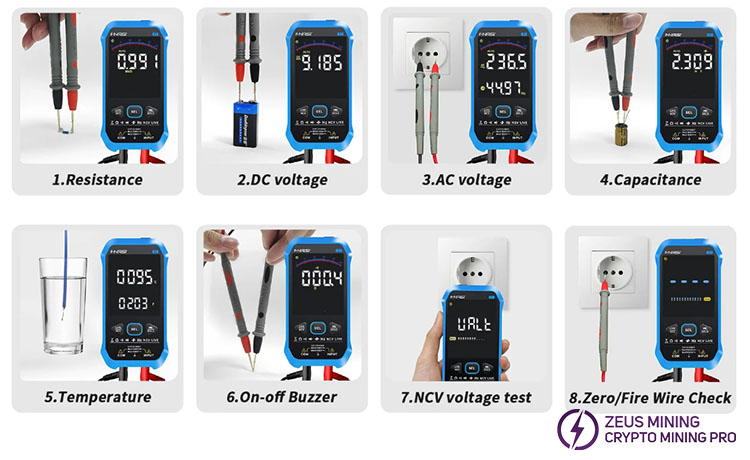

Product Features:
1) Intelligent anti-burning function, no burnout, full-speed overload protection, no need to worry about burnout caused by wrong operation;
2) After the measurement is stable, the data will be displayed permanently, and you don’t have to worry about the data returning to zero even if you let go of your hands;
3) NVC sensing voltage, sound and light alarm, more accurate sensing, say goodbye to the risk of electric shock;
4) High-performance chip, fast identification, accurate measurement;
5) Built-in flashlight function, convenient for working in dark and dark environments;
6) Type-C charging, long-lasting battery life, built-in 1000mah lithium battery, can work continuously for 5 hours, environmentally friendly, convenient, and worry-free;
7) Small and easy to carry, ultra-thin body does not take up space and can be used with you.
Click on the article to learn more about how to use the multimeter: How to use the FNIRSI-S1 digital multimeter during the ASIC miner repair?
Product parameters:
Function | Range | Resolution | Accuracy |
DC voltage | 0-10V | 0.001V | ± (0.8%+3) |
10-100V | 0.01V | ||
100-1000V | 0.1V | ||
1000V | 1V | ± (1.2%+3) | |
AC voltage | 0-10V | 0.001V | ± (0.8%+3) |
10-100V | 0.01V | ||
100-1000V | 0.1V | ||
1000V | 1V | ± (1.2%+3) | |
Resistance | 0-1000Ω | 0.1Ω | ± (0.8%+3) |
1k-100kΩ | 0.01KΩ | ||
100k-1000kΩ | 0.1KΩ | ||
1M-100MΩ | 0.01MΩ | ± (1.2%+3) | |
Capacitance | 0-10nF | 0.001nF | ± (4.5%+5) |
10-100nF | 0.001nF | ||
100-1000nF | 0.1nF | ||
1μF-10μF | 0.001μF | ||
10μF-100μF | 0.01μF | ||
100μF-1000μF | 0.1μF | ||
lmF-10mF | 0.001mF | ||
Frequency | 0-10Hz | 0-10HZ | ± (0.1%+3) |
10-100Hz | 0.01Hz | ||
100-1000HZ | 0.1Hz | ||
1K-10KHz | 0.001KHz | ||
10K-100KHz | 0.01KHz | ||
100K-1000KHz | 0.1KHz | ||
1000KHz-10MHz | 1KHz | ||
Temperature | -20℃-0℃ | 1℃ | ± (5%+4) |
1℃-400℃ | 1℃ | ± (1%+3) | |
401℃-1000℃ | 1℃ | ± (2%+5) | |
-4℉-32℉ | 1℉ | ± (5%+8) | |
33.8℉-752℉ | 1℉ | ± (1%+6) | |
33.8℉-752℉ | 1℉ | ± (2%+10) | |
Diode | √ | ||
Automatic off | √ | ||
Lighting | √ | ||
On-off buzzer | √ | ||
Auto range | √ | ||
NCV induced voltage | √ | ||
Live mode | √ | ||
Data hold | √ | ||
Analog | √ | ||
Low voltage indication | √ | ||
Max range | 9999 count | ||
Valid value | 50HZ-1KHZ | ||
Material | ABS | ||
Display | VA color screen | ||
Net weight | 135g | ||
Power supply | 1000mA rechargeable lithium battery | ||
Size | 143mm*75mm*19mm | ||
Security level | CAT Ⅲ 1000V | ||

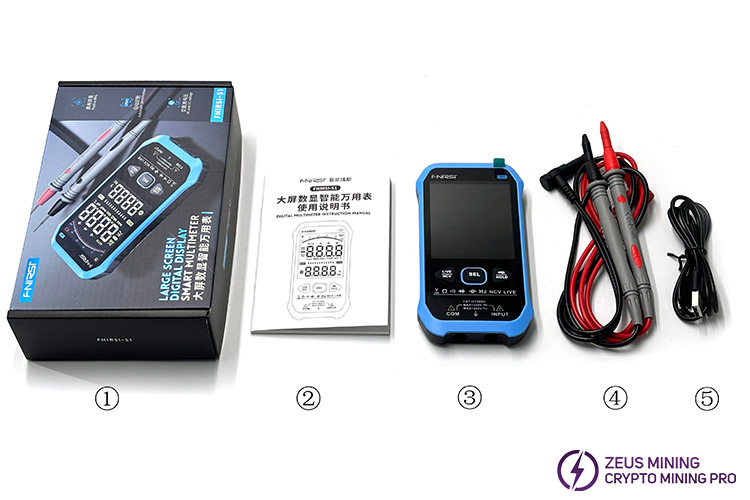

Product list:
①Packaging box
②Instruction manual
③FNIRSI-S1 multimeter

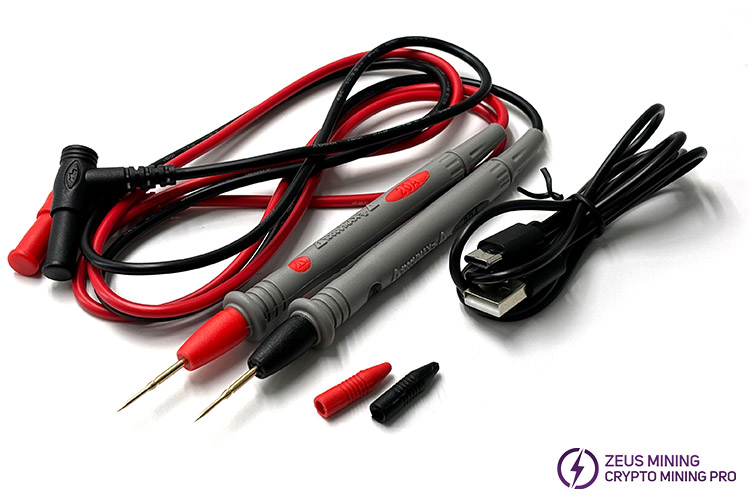

④Special tip test lead
⑤Type-C data cable
