| Unit Price: | $ 0.7 |
WhatsApp : +8618623251355

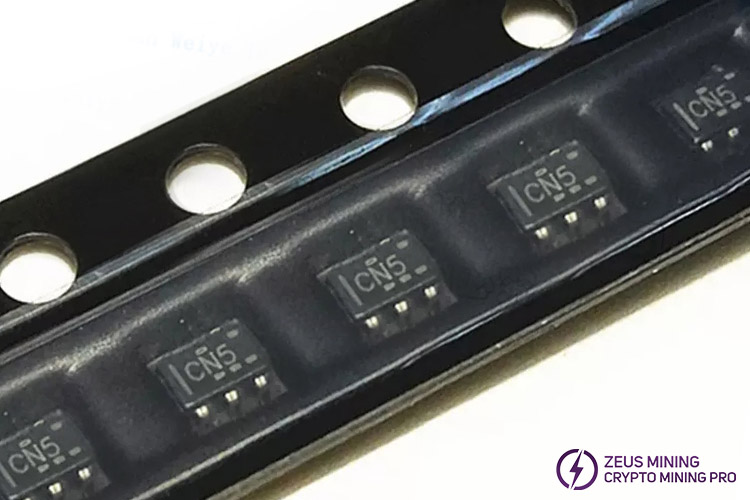

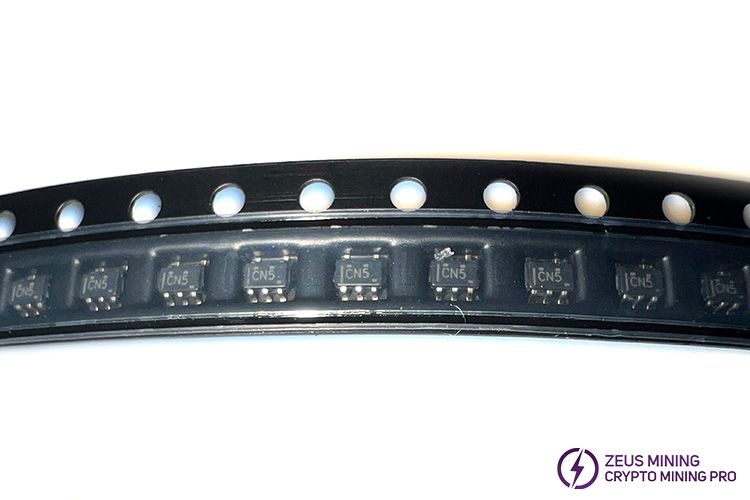

Telegram : @zeusmining_presalesSignal voltage conversion chip (silk-screen CN) SN74LVC1G126DCKR for Antminer 19 series hash board. The 74LVC series utilizes silicon-gate CMOS technology and is designed to operate at 1.65 to 3.6V, 5V Tolerant Input. Compatibility: Input LVTTL/TTL, output LVCMOS. Latch-up performance exceeds 250 mA per JESD 17; ESD protection exceeds JESD 22.

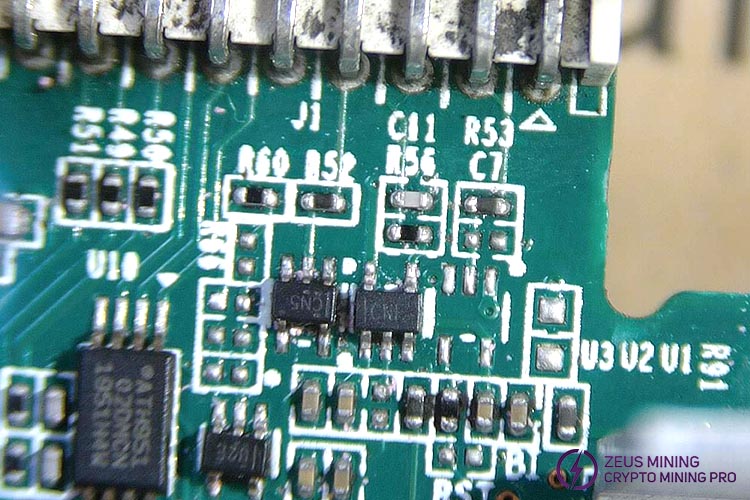

Silkscreen CN5 and CNF are the same product.
Logic Family: 74LVC
Logic Function: Buffer
Number of channels: 1
Schmitt Trigger Input: No
Input Type: CMOS, TTL
Output type: 3 states
Polarity: non-inverting
Mounting Type: Surface Mount
Package Type: SC-70
Number of pins: 5
Maximum high level output current: -32mA
Maximum low level output current: 32mA
Max propagation delay time: Max CL 4.2ns @ 5V
Aspects: 2.15x1.4x1mm
Maximum operating power supply voltage: 5.5V
Minimum operating supply voltage: 1.65V
Minimum operating temperature: -40°C
Width: 1.4mm
Maximum operating temperature +125°C
